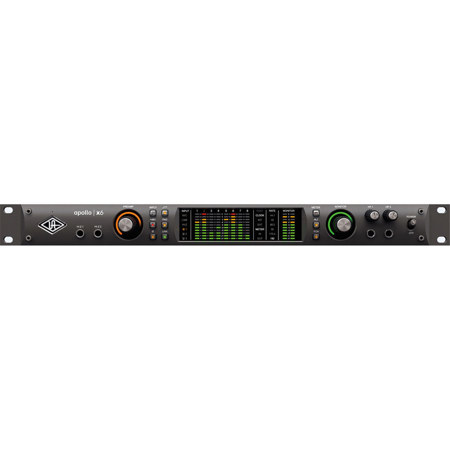

Universal Audio Apollo x6 Heritage Edition Rackmount 16x22 Thunderbolt 3 Audio Interface with Realtime UAD HEXA Core Processing for Mac and Windows

SKU: UAPX6HE MFR: APX6-HE
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with the Apollo x6's premium AD/DA conversion.
  • Unleash your creativity with Realtime UAD HEXA Core Processing for powerful plugins.
  • Record vocals and instruments using the interface's high-quality mic preamps.
  • Achieve ultra-low latency for seamless tracking and monitoring during sessions.
  • Expand your studio with versatile Thunderbolt 3 connectivity for modern workflows.
  • Integrate with LUNA Recording System for Mac, unlocking a fully integrated workflow.
See More Product Details
Free Expedited Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Universal Audio Apollo x6 Specifications

General

General

Jump to...
  • Form Factor

    Rackmount

  • Display

    10x Multi-Segment LED Meter

  • Channels of I/O

    Analog:
    6 Inputs / 12 Outputs at 192 kHz

    Digital:
    10 Inputs / 10 Outputs at 96 kHz

  • Max Sample Rate/Resolution

    192 kHz / 24-Bit

  • Number of Mic Preamps

    2

  • Input Level Adjustment

    1x Knob

  • Expansion Slots

    None

  • Pad

    -20 dB (Switchable per Channel)

  • Gain/Trim Range

    Inputs:
    +10 to +65 dB

  • High-Pass Filter

    75 Hz, 12 dB/Octave

  • Solo/Mute

    Mute per Master

Connectivity

Jump to...
  • Analog Audio I/O

    2x XLR 3-Pin Balanced Mic Input
    2x 1/4" TS Unbalanced Hi-Z Input (Front Panel)
    6x 1/4" TRS Balanced Line Input
    2x 1/4" TRS Balanced Monitor Output
    6x 1/4" TRS Balanced Line Output
    2x 1/4" TRS Unbalanced Headphone Output

  • Phantom Power

    48 V, Selectable On/Off (Selectable on Individual Inputs)

  • Digital Audio I/O

    2x TOSLINK Optical ADAT Input (S/MUX4 Support)
    2x TOSLINK Optical ADAT Output (S/MUX4 Support)
    1x RCA Coaxial S/PDIF Input
    1x RCA Coaxial S/PDIF Output

  • Host Connection / USB

    1x USB Type-C (Thunderbolt 3)

  • USB (Non-Host)

    None

  • Sync I/O

    1x BNC Word Clock Input
    1x BNC Word Clock Output

  • Network I/O

    None

  • MIDI I/O

    None

  • Wireless Connectivity

    None

Performance

Jump to...
  • Frequency Response

    Mic Inputs:
    20 Hz to 20 kHz +/-0.05 dB

    Hi-Z Inputs:
    20 Hz to 20 kHz +/-0.04 dB

    Line Inputs:
    20 Hz to 20 kHz +/-0.05 dB

    Monitor Outputs:
    20 Hz to 20 kHz +/-0.06 dB

    Line Outputs:
    20 Hz to 20 kHz +/-0.07 dB

    Headphone Outputs:
    20 Hz to 20 kHz +/-0.05 dB

  • Max Input Level

    Mic Inputs:
    +26 dBu (with Pad)

    Hi-Z Inputs:
    +12.4 dBu

    Line Inputs:
    +24 dBu (with Pad)

  • Max Output Level

    Line/Monitor Outputs:
    +24 dBu

  • Headphone Output Power

    150 mW into 300 Ohms

  • Impedance

    Hi-Z Inputs:
    1 Megohm

    Line Inputs:
    10 Kilohms

    Line Outputs:
    100 Ohms

    Mic Inputs:
    5.5 Kilohms

    Monitor Outputs:
    100 Ohms

    Word Clock :
    75 Ohms

  • Dynamic Range

    Mic Inputs:
    122 dBA

    Hi-Z Inputs:
    121 dBA

    Line Inputs:
    123 dBA

    Monitor Outputs:
    129 dBA

    Line Outputs:
    127 dBA

    Headphone Outputs:
    125 dBA

  • THD+N

    Mic Inputs:
    -114 dB / 0.0002% (1 kHz)

    Hi-Z Inputs:
    -111 dB / 0.00028% (1 kHz)

    Line Inputs:
    -113 dB / 0.00022% (1 kHz)

    Monitor Outputs:
    -118 dB / 0.00012% (1 kHz, at -1 dBFS)

    Line Outputs:
    -119 dB / 0.00011% (1 kHz, at -1 dBFS)

    Headphone Outputs:
    -102 dB / 0.0008% (1 kHz, at -1 dBFS)

Digital Audio

Jump to...
  • Sample Rates

    Up to 192 kHz

  • Sample Rate Conversion

    None

  • Bit Depths

    24-Bit (AD/DA Conversion)

  • Latency

    1.1 ms at 96 kHz (Input to Output)

  • Sync Sources

    ADAT, Internal, S/PDIF, Word Clock

  • Clocking

    Word Clock:
    Input Termination: 75 Ohms (Switchable)
    Lock Range: 44.1 to 192 kHz +/-4% of Sample Rate

  • Memory Card Slot

    None

Compatibility

Jump to...
  • OS Compatibility

    macOS 10.12 / 10.13 / 10.14 / 10.15
    Windows 10 (64-Bit, Only)

  • Included Software

    LUNA Mac Only

  • Compatible Software

    Any Core Audio (Mac) Compliant Software (Not Included)

  • Supported Drivers/API & Plug-Ins

    Proprietary

  • Processor Requirement

    Intel Core i7

  • Storage Requirements

    6 GB

  • Mobile Device Compatibility

    None

  • Required Hardware

    Available Thunderbolt 3 Port
    Thunderbolt Cable (Not Included)

  • Internet Connection

    Required for Registration and Software/Driver Download

  • Power Requirements

    AC/DC Power Adapter (Included)

  • AC Input Power

    100 to 240 VAC, 50 / 60 Hz

  • AC/DC Power Adapter

    12 VDC at 6 A (Included)

  • Power Consumption

    30 W (Typical)
    72 W (Maximum)

Physical

Jump to...
  • Rackmount Size

    1 RU

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Dimensions

    19 x 13.5 x 1.8" (48.3 x 34.3 x 4.6cm) (Including Controls and Protrusions)

  • Weight

    9.0 lbs (4.1kg)

  • UPC Code

    819937003059

9 Accessories for Universal Audio Apollo x6 Heritage Edition Rackmount 16x22 Thunderbolt 3 Audio Interface with Realtime UAD HEXA Core Processing for Mac and Windows

  • All Accessories (9)
  • Microphones & Audio (6)
  • Headphones (3)

About Universal Audio Apollo x6

If you're seeking the pinnacle of audio conversion and processing for your music production or post-production studio, the Apollo x6 Heritage Edition Rackmount 16x22 Thunderbolt 3 Audio Interface stands as a paragon in the industry. This state-of-the-art interface offers an unparalleled combination of elite-class A/D and D/A conversion, HEXA Core UAD plug-in processing, and comprehensive surround sound capabilities, all housed in a sleek, rackmount design compatible with both Mac and Windows systems.

Drawing from Universal Audio's 60-year legacy of audio craftsmanship, the Apollo x6 interface surpasses its competitors with ease. It boasts two Unison-enabled mic preamps and the latest HEXA Core processing technology, which provides a staggering 50% increase in DSP power. This allows for real-time operation of UAD Powered Plug-Ins, ensuring your recordings benefit from the highest fidelity and a rich, analog sound.

The Apollo x6's elite-class 24-bit/192 kHz converters, paired with all-new analog circuitry, deliver an ultra-pristine signal path. The interface's Dual-Crystal clocking technology, featuring dedicated crystals for different sample rates, ensures incredibly low jitter and artifact-free recordings with solid stereo imaging. With a dynamic range of 129 dB and a total harmonic distortion plus noise (THD+N) of -119 dB, the Apollo x6 rivals even the most dedicated high-end converters.

Realtime UAD HEXA Core Processing is at the heart of the Apollo x6, featuring six DSP chips that enable you to run a multitude of UAD plug-ins. Whether you're tracking with channel strips from Neve, Manley, or API, or mixing with a high count of UAD plug-ins in your DAW, the Apollo x6 delivers the analog warmth and sonic depth that UAD is known for.

Unison Technology further sets the Apollo x6 apart, offering the genuine sound of iconic preamps from Neve, API, Manley, and more. This exclusive technology integrates hardware and software to reproduce the tone, input impedance, and circuit behaviors of the most sought-after mic preamps, providing an authentic analog experience.

The Apollo x6 comes with the Realtime Analog Classics Plus plug-in bundle, allowing you to record and mix with legendary compressors like the Teletronix LA-2A, 1176LN, and Fairchild, as well as guitar and bass amps from Marshall and Ampeg. Additionally, the full UAD Powered Plug-In library is at your fingertips, offering near-zero latency emulations of vintage EQs, compressors, reverbs, and more.

As an Apollo Heritage Edition, this interface includes a premium suite of 10 UAD plug-ins, featuring complete collections from Teletronix, UA 1176, Fairchild, Helios Type 69, and UA 610 mic preamps, Pultec EQs, and more. These plug-ins have been meticulously modeled to provide the most accurate library of classic analog emulations available, ensuring your recordings and mixes are imbued with the rich, warm character of vintage gear.

In summary, the Apollo x6 Heritage Edition Rackmount 16x22 Thunderbolt 3 Audio Interface is an essential tool for audio professionals who demand the highest quality and versatility. It offers a seamless blend of modern technology and classic analog sound, making it an invaluable addition to any studio setup.

Universal Audio Apollo x6 Features

  • 16 x 22 Thunderbolt 3 audio interface with class-leading 24-bit/192 KHz conversion (backwards compatible with Thunderbolt 1 & 2 on Mac)
  • Realtime UAD HEXA Core Processing for tracking through UAD plug-ins at near-zero latency, regardless of audio buffer size
  • Record through 2 Unison-enabled mic/line preamps - giving you fully authentic preamp emulations from Neve, API, Manley, SSL, and moref
  • Produce with LUNA Recording System - a fully-integrated recording application made for Apollo (Mac/Thunderbolt)
  • Surround monitor controller up to 5.1 format
  • Includes the "Realtime Analog Classics Plus" UAD plug-in bundle. Other UAD plug-ins sold separately
  • UAD HEXA Core processing onboard for additional mixing horsepower for Pro Tools, Logic, Cubase, Ableton, and other major DAWs
  • Combine up to 4 Thunderbolt-equipped Apollos and 6 total UAD devices
  • Selectable +24 dBu operation for easy compatibility with professional mixing consoles and tape machines
  • Convenient front panel monitoring functions including Alt Speakers, Talkback mic, and assignable Dim or Mono
  • Free, industry-leading technical support - on the phone and online - from knowledgeable audio engineers

Product Documents

User Manual

Key Features

  • Experience pristine audio quality with the Apollo x6's premium AD/DA conversion.
  • Unleash your creativity with Realtime UAD HEXA Core Processing for powerful plugins.
  • Record vocals and instruments using the interface's high-quality mic preamps.
  • Achieve ultra-low latency for seamless tracking and monitoring during sessions.
  • Expand your studio with versatile Thunderbolt 3 connectivity for modern workflows.
  • Integrate with LUNA Recording System for Mac, unlocking a fully integrated workflow.

What's in the box:

  • Universal Audio Apollo x6 Heritage Edition Rackmount 16x22 Thunderbolt 3 Audio Interface with Realtime UAD HEXA Core Processing
  • External Power Supply
  • IEC Power Cable
  • 4x Rackmount Screws
  • 34x UAD Plug-Ins (Download)
  • LUNA Recording Software for Mac (Download)
  • (Thunderbolt Cable Not Included)
  • Universal Audio 1 Year Limited Warranty
