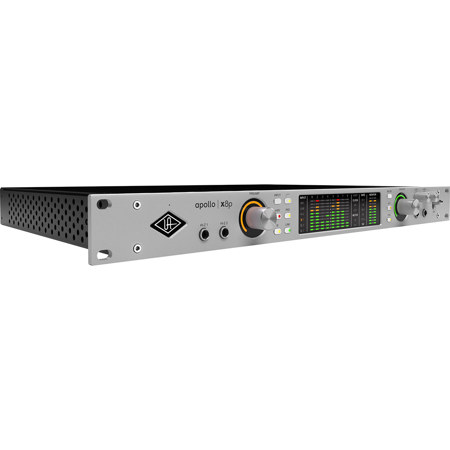

Universal Audio Apollo x8p Gen 2 Thunderbolt 3 Audio Interface with Essential+ Plug-Ins

SKU: UAPX8PG2ESS MFR: APX8PG2-ESS
Earn VIP Reward Points

Key Features

  • Experience pristine audio quality with the Apollo x8p's premium converters.
  • Harness Realtime UAD Processing for near-zero latency when tracking and mixing.
  • Elevate your studio with eight Unison mic preamps, emulating classic hardware.
  • Expand your setup using Thunderbolt 3 connectivity for blazing-fast speeds.
  • Integrate seamlessly with your favorite DAW using its exceptional software compatibility.
  • Get pro results with included Essential+ Plug-Ins, adding value to your audio interface.
See More Product Details

Special Offers

  • Get a FREE Sphere Modeling Microphone valued at up to $1,500 when you buy . Offer ends 12/31/2025 See details.

  • Buy any Apollo X Gen 2 rackmount interface and get over $2,100 in UAD plug-ins FREE! Including ... Offer ends 09/30/2025 See details.

Special Order?Estimated to Ship: 09/15/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Universal Audio Apollo x8p Gen 2 Specifications

System
  • Simultaneous Channel I/O Count

    16 x 22 (ADAT mode) (analog + digital)

  • Microphone Inputs

    Eight

  • High Impedance (Hi-Z) Instrument Inputs

    Two

  • Analog Line Inputs

    Eight

  • Analog Line Outputs (DC coupled)

    Eight (10 including Monitor outputs)

  • Analog Monitor Outputs (DC coupled)

    Two (one stereo pair)

  • Headphone Outputs

    Two stereo

  • Digital Audio Ports

    Two inputs, two outputs (ADAT or S/PDIF, selectable)

  • Thunderbolt 3 Ports

    Two

  • Word Clock

    One input, one output

  • Simultaneous A/D conversion

    Eight channels

  • Simultaneous D/A conversion

    14 channels

  • Supported Sample Rates

    44.1, 48, 88.2, 96, 176.4, 192kHz

  • Bit Depth Per Sample

    24

  • Analog Round-Trip Latency

    1.1 milliseconds @ 96 kHz sample rate
    Through four UAD legacy plug-ins (included) via UAD Console software: 1.1 milliseconds @ 96 kHz sample rate (no additional latency via Realtime UAD Processing)

Analog I/O

Jump to...
  • Microphone Inputs 1 - 8

    Frequency Response: 20Hz - 20kHz, +/-0.07 dB
    Dynamic Range: 123 dB (A-weighted)
    THD+Noise (1 kHz @ 25 dBu, -1 dBFS): -115 dB (0.00018%)
    Max Input Level (PAD on): 26 dBu
    Default Input Impedance (variable via Unison plug-ins): 5.4 K Ohm
    Gain Range: +10 dB to +65 dB
    Pad Attenuation (per mic input): 20 dB (variable via Unison plug-ins)
    Phantom Power (per mic input): +48V
    Connector Type: XLRF, pin 2 positive (combo XLR/TRS)

  • Hi-Z Inputs 1 & 2

    (600 K Ohm input termination)
    Frequency Response: 20 Hz - 20 kHz, +/-0.08 dB
    Dynamic Range: 122 dB (A-weighted)
    THD + Noise (1 kHz @ 9.6 dBu, -1 dBFS): -111 dB (0.00028%)
    Maximum Input Level (at minimum gain): 12.6 dBu
    Default Input Impedance (variable via Unison plug-ins) 1 M Ohm
    Gain Range: +10 dB to +65 dB
    Connector Type: 1/4" female TS unbalanced

  • Line Inputs 1 - 8

    Frequency Response: 20 Hz - 20 kHz, +/-0.07 dB
    Dynamic Range: 124 dB (A-weighted)
    THD + Noise (1 kHz @ 23 dBu, -1 dBFS): -116 dB (0.00016%)
    Maximum Input Level (reference level @ +4 dBu): 24 dBu
    Input Impedance: 10 K Ohm
    Gain Range (inputs 1 - 4 only): +10 dB to +65 dB
    Connector Type: Eight 1/4" female TRS balanced (combo XLR/TRS), One female DB25 (Tascam wiring), normal led

  • Line Outputs 1 - 8

    Frequency Response: 20 Hz - 20 kHz, +/-0.05 dB
    Dynamic Range: 127 dB (A-weighted)
    THD + Noise (1 kHz @ 23 dBu, -1 dBFS): -119 dB (0.00011%)
    Maximum Output Level: Reference level @ +4 dBu: 24 dBu
    Maximum Output Level: Reference level @ -10 dBV: 10 dBV (12.2 dBu)
    Output Impedance: 100 Ohm
    Connector Type: Female DB25 (Tascam wiring)

  • Monitor Outputs L & R

    Frequency Response: 20 Hz - 20 kHz, +/-0.02 dB
    Dynamic Range: 130 dB (A-weighted)
    THD + Noise (1 kHz @ 23 dBu, -1 dBFS): -127 dB (0.000045%)
    Maximum Output Level: Reference level @ +4 dBu: 24 dBu
    Maximum Output Level: Reference level @ -10 dBV: 10 dBV (12.2 dBu)
    Output Impedance: 100 Ohm
    Connector Type: 1/4" Female TRS Balanced

  • Stereo Headphone Outputs 1-2

    Frequency Response: 20 Hz - 20 kHz, +/-0.02 dB
    Dynamic Range: 126 dB (A-weighted)
    THD + Noise: 300 Ohm load (1 kHz @ 16.8 dBu, -1 dBFS): -117 dB (0.00014%)
    THD + Noise: 600 Ohm load (1 kHz @ 17.3 dBu, -1 dBFS): -118 dB (0.00013%)
    Maximum Output Level: 300 Ohm load (1 kHz @ 16.8 dBu, -1 dBFS): 17.8 dBu
    Maximum Output Level: 600 Ohm load (1 kHz @ 17.3 dBu, -1 dBFS): 18.3 dBu

  • Stereo Headphone Outputs 1-2 (Contd.)

    Maximum Output Power: 300 Ohm load (1 kHz @ 16.8 dBu, -1 dBFS): 120 mW RMS
    Maximum Output Power: 600 Ohm load (1 kHz @ 17.3 dBu, -1 dBFS): 67 mW RMS
    Connector Type: 1/4" female TRS stereo

Digital I/O

Jump to...
  • Connector Type

    Optical TOSLINK JIS F05 (S/PDIF or ADAT, selectable)
    Optical TOSLINK JIS F05 (shared with S/PDIF)
    Word Clock: BNC

  • Format

    S/PDIF: IEC 958
    ADAT: ADAT Lightpipe with S/MUX

  • Supported Sample Rates

    S/PDIF: 44.1, 48, 88.2, 96kHz
    ADAT: 44.1, 48, 88.2, 96, 176.4, 192kHz

  • S/PDIF Channels

    One stereo input, one stereo output

  • Channel Assignments @ 44.1 kHz, 48 kHz

    Port 1 = Channels 1 - 8, Port 2 = 1 - 8 (mirrored)

  • Channel Assignments @ 88.2 kHz, 96 kHz

    Port 1 = Channels 1 - 4, Port 2 = Channels 5 - 8

  • Channel Assignments @ 176.4 kHz, 192 kHz

    Port 1 = Channels 1 - 2, Port 2 = Channels 3 - 4

  • Lock Range

    +/-4% of any supported sample rate

  • Word Clock Input Termination

    75 Ohm, switchable

  • Synchronization Sources

    Internal, Word Clock, ADAT, S/PDIF

Electrical

Jump to...
  • Power Supply

    External AC-to-DC power supply, level VI compliant

  • AC Input Connector Type

    IEC male

  • AC Requirements

    100V - 240V AC, 47 - 63 Hz, 1.6 A max

  • DC Connector Type

    XLR 4-pin locking male (Neutrik P/N NC4MDM3-H)

  • DC Requirements

    12 VDC, 6 A

  • Maximum Power Consumption

    72 Watts (30 W typical)

Environmental

Jump to...
  • Ambient Temperature Range

    32 to 104 Degree F (0 to 40 Degree C)

Physical

Jump to...
  • Dimensions (W x H x D)

    19 x 1.74 x 12" (482.6 x 44.2 x 305mm)

  • Weight

    8.9 lbs (4.02kg)

  • UPC Code

    819937004513

About Universal Audio Apollo x8p Gen 2

While the Universal Audio Apollo x8p Gen 2 Thunderbolt 3 Audio Interface with Essential+ Plug-Ins is designed for those who demand the highest quality in audio recording and production, it stands out as a powerhouse for bands, engineers, and producers. This advanced audio interface is equipped with eight Unison mic preamps, offering the authentic analog sound that Universal Audio is renowned for. With the Apollo x8p, you can achieve the highest-resolution audio conversion and take advantage of real-time UAD processing, allowing you to record through industry-leading plug-ins from Auto-Tune, Neve, API, Manley, and more, all without latency.

The Apollo x8p features elite-class Apollo X Gen 2 converters, delivering an unprecedented dynamic range that ensures you hear every detail of your recordings. The eight Unison preamps utilize impedance-matched analog modeling technology, faithfully recreating the sound and feel of iconic analog gear from brands like Neve, API, Manley, and Fender. This technology provides digital control over mic preamp impedance and gain staging, making it ideal for capturing large sessions with rich, analog textures.

With studio-grade D/A conversion, the Apollo x8p boasts a remarkable -127 dB THD+N, ensuring ultra-low noise and distortion levels (0.000045% THD+N). The enhanced Monitor D/A offers the widest dynamic range of any Apollo interface to date, at 130 dB DNR, making it perfect for ultra-low-noise recording. Additionally, the professional headphone monitoring system provides clean, powerful amplification with 126 dB DNR and -117 dB (0.00014%) THD+N into 300 Ohm, ensuring pristine audio quality.

The Apollo x8p is not just about recording; it also enhances your mixing capabilities. With features like Apollo Monitor Correction by Sonarworks, you can mix with confidence in any environment, whether through monitors or headphones. The interface includes a comprehensive suite of UAD plug-ins with the Essentials+ Editions, featuring renowned tools like Teletronix LA-2A compressors, Pultec EQs, and amps from Fender, Marshall, and Ampeg, allowing you to tap into over 200 UAD plug-ins for a vast array of hit-making sounds.

The digital mixing engine of the Apollo x8p offers a hybrid workflow that combines its HEXA Core DSP with native processing from your host computer, enabling you to handle large sessions with complex plug-in chains effortlessly. The interface's new UAD Console features, such as Auto-Gain, Plug-In Scenes, Monitor Controller, and Immersive Audio, streamline your workflow, making it adaptable to your specific needs.

As your studio grows, the Apollo x8p can expand with you. Link up to four Thunderbolt Apollo interfaces for up to 128 channels of premium I/O in your DAW, all controllable from your desktop using Apollo Twin or x4. This scalability ensures that no matter how far your music journey takes you, the Apollo x8p will remain a central part of your setup.

Included with the Essentials+ Plug-Ins are a variety of channel strips, preamps, compressors, limiters, equalizers, special processing tools, instruments, delay and modulation effects, reverbs, and guitar and bass amplifiers. These plug-ins provide a comprehensive toolkit for any audio production task, ensuring that you have the resources needed to create professional-quality recordings.

Universal Audio Apollo x8p Gen 2 Features

  • 16 x 22 Thunderbolt 3 audio interface with HEXA Core DSP plug-in processing
  • Eight Unison mic preamps, two Hi-Z instrument inputs, DB-25 input (line 1-8), two optical Toslink I/O (ADAT S/MUX or S/PDIF), word clock I/O (BNC)
  • Two 1/4" monitor outs, DB-25 output (ALT / 7.1 surround), two 1/4" TRS headphone outs
  • Elite-class Apollo X Gen 2 converters with 24-bit / 192 kHz resolution featuring Dual-Crystal Clocking for ultra-low jitter at all sample rates
  • Enhanced D/A for critical monitoring and playback with 130 dB dynamic range and astonishingly low THD of -127 dB
  • Calibrate your main monitor and headphone outputs with Apollo Monitor Correction powered by Sonarworks
  • Fully-featured monitor controller with alternate speaker switching and integrated talkback for easy communication with talent
  • Updated UAD Console app featuring Auto-Gain, Plug-In Scenes, subwoofer integration with Bass Management, immersive audio support, and more
  • Onboard DSP supports over 200 UAD plug-ins via VST, AU, and AAX 64 formats in all major DAWs
  • Includes up to 20+ UAD plug-ins with Essentials+ Editions
  • Compatible with LUNA, Logic Pro, Pro Tools, Cubase, Ableton Live, and more
  • Expandable with Thunderbolt Apollo interfaces and Dante via Apollo x16D
  • Free industry-leading technical support from knowledgeable audio engineers

Warranty Information

This product has a limited warranty of 12 months for parts and 12 months for labor.

Key Features

  • Experience pristine audio quality with the Apollo x8p's premium converters.
  • Harness Realtime UAD Processing for near-zero latency when tracking and mixing.
  • Elevate your studio with eight Unison mic preamps, emulating classic hardware.
  • Expand your setup using Thunderbolt 3 connectivity for blazing-fast speeds.
  • Integrate seamlessly with your favorite DAW using its exceptional software compatibility.
  • Get pro results with included Essential+ Plug-Ins, adding value to your audio interface.

What's in the box:

  • Universal Audio Apollo x8p Gen 2 Thunderbolt 3 Audio Interface
  • Essential+ Plug-Ins
  • External Power Supply
  • AC Power Cable (IEC C7/Non-Polarized)
  • 4x Rack-Mount Screws
  • Universal Audio 1 Year Limited Warranty
