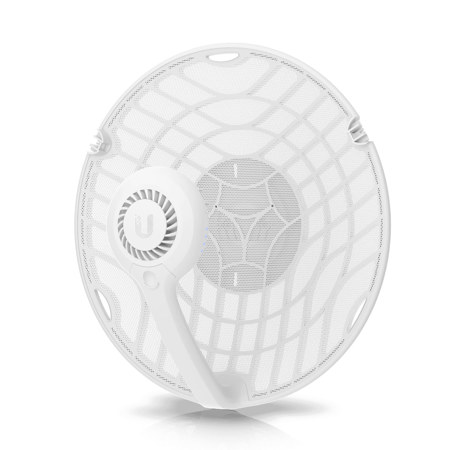

Ubiquiti Networks airFiber 60GHz Long-Range Point-to-Point Wireless Radio System

SKU: UBAF60LRUS MFR: AF60-LR-US
Earn VIP Reward Points

Key Features

  • Experience superior wireless with the Ubiquiti airFiber, delivering up to 1.95Gbps throughput.
  • Extend your network's reach with this long-range point-to-point wireless radio system, up to 12+ km.
  • Enjoy a reliable WiFi connection with the integrated 60 GHz radio and advanced Wave technology.
  • Set up your secure network effortlessly using Bluetooth management and the intuitive UISP app.
  • Ensure a stable connection in extreme conditions, with an operating temperature range of -40 to 140°F.
  • Mount easily with included precision alignment hardware compatible with 1-3" poles for strong security.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025Request assistance or get notified
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$79.99

3 Year

$109.99

4 Year

$129.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks airFiber 60 LR Specifications

General

General

Jump to...
  • Material

    Enclosure: Aluminum, UV stabilized polycarbonate
    Mount: Galvanized steel

  • Mounting

    Precision Alignment Hardware
    Pole compatibility: 1-3" (25.4-76.2mm)

  • Wind Loading

    420 N at 200 km/h (94.4 lbf at 125 mph)

Hardware

Jump to...
  • Processor

    Quad-Core ARM Cortex A7

  • Memory

    256 MB DDR3

  • Networking Interface

    GbE RJ45 port

  • RF Connections

    Internal

  • Max. power consumption

    18W

  • Power method

    Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8- )

  • Power supply

    48VDC, 0.65A gigabit PoE adapter

  • Supported voltage range

    48VDC +/- 10%

  • ESD/EMP protection

    Air/contact: +/- 24kV

  • Operating temperature

    -40 Degree F to 140 Degree F (-40 Degree C to 60 Degree C)

  • Operating Humidity

    5 to 95% noncondensing

  • Certifications

    FCC, IC, CE

  • Power

    Flashing white: Bootup in progress
    White: Not connected to UISP console
    Blue: Connected to UISP console

  • Ethernet

    Flashing blue: Ethernet activity

  • GPS

    Blue: Receiving at least (4) GPS satellite signals

  • 60G

    Blue: Active connection

Software

Jump to...
  • OS

    airOS

  • Operating Mode

    PtP only

  • Ubiquiti Specific Features

    Integrated 60 GHz radio, discovery protocol, Wave technology

  • Network

    Bridge mode

  • Services

    UISP, ping watchdog, NTP client, device discovery

  • Tools

    Antenna alignment, discovery utility, ping, trace route, speed test

  • Software Management

    Bluetooth management for easy setup over UISP app
    WEB UI

  • Minimum Software Requirements

    Any modern WEB browser/iOS or Android based smartphone

  • Maximum throughput

    1.95Gbps

  • Maximum range

    12+ km

  • Encryption

    WPA2-PSK (AES)

  • Operating Frequency

    57-71 GHz

  • GPS

    Yes

  • Channel Bandwidth

    2160, 1080 MHz

Physical

Jump to...
  • Dimensions

    16.3 x 14.2" (413 x 360mm)

  • Weight

    Without mount: 3.3 lbs (1.5kg)
    With mount: 6 lbs (2.7kg)

  • UPC Code

    810010073433

About Ubiquiti Networks airFiber 60 LR

60 GHz point-to-point(PtP) radio system with a 1.9 Gbps maximum throughput rate and a 12+ kilometer link range.
The airFiber 60 GHz Long-range Radio (AF60 LR) is a PtP system that uses Wave Technology to establish long distance, true-duplex Gigabit links. Equipped with a high-gain dish antenna, the AF60 LR can reach a 1.9 Gbps maximum throughput rate and sustain its links over 12 km. It also has a dedicated Bluetooth management radio so it can be set up quickly and fully conjured with the UISP application (web/mobile). It can also be seamlessly integrated into an existing deployment with Ubiquiti's dedicated link planning platform and tracked from anywhere with its built-in GPS antenna.

Ubiquiti Networks airFiber 60 LR Features

  • 60 GHz PtP system supports true-duplex Gigabit links over a 12 km range
  • Achieve up to 1.9 Gbps throughput with a high-gain dish antenna
  • Quick setup with dedicated Bluetooth and UISP mobile/web configuration
  • Seamlessly integrates with Ubiquiti's link planning platform
  • Built-in GPS antenna enables convenient link tracking from anywhere

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior wireless with the Ubiquiti airFiber, delivering up to 1.95Gbps throughput.
  • Extend your network's reach with this long-range point-to-point wireless radio system, up to 12+ km.
  • Enjoy a reliable WiFi connection with the integrated 60 GHz radio and advanced Wave technology.
  • Set up your secure network effortlessly using Bluetooth management and the intuitive UISP app.
  • Ensure a stable connection in extreme conditions, with an operating temperature range of -40 to 140°F.
  • Mount easily with included precision alignment hardware compatible with 1-3" poles for strong security.

What's in the box:

  • Ubiquiti Networks airFiber 60GHz Long-Range Point-to-Point Wireless Radio System
  • Precision Alignment Pole Mount
  • Gigabit PoE Adapter
  • Power Cord
  • Ubiquiti Networks 1 Year Limited Warranty
