Ubiquiti Networks airFiber 60 XG 60GHz Point-to-Point Wireless Bridge

SKU: UBAF60XGUS MFR: AF60-XG-US
Earn VIP Reward Points

Key Features

  • Experience superior wireless bridge performance with airFiber 60 XG, designed for fast wifi.
  • Achieve maximum throughput up to 6Gbps with channel bonding for seamless, strong signal.
  • Extend your network range up to 4 km, perfect for connecting buildings with wide coverage.
  • Enjoy easy setup via Bluetooth using the UISP App, simplifying your network deployment.
  • Ensure a secure network with WPA2-PSK encryption, protecting your data from intrusions.
  • Built with a quad-core processor for reliable, high-speed networking at an affordable price.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks airFiber 60 XG Specifications

General

General

Jump to...
  • Material

    Enclosure: UV stabilized polycarbonate, steel
    Mount: Galvanized steel

  • Mount

    Precision Alignment Hardware
    Pole compatibility: 1.5-3.15" (40-80mm)

  • Wind Loading

    422 N at 200 km/h (94.86 lbf at 125 mph)

Hardware

Jump to...
  • Processor

    Quad-Core ARM Cortex A72 at 1.6 GHz

  • Memory

    2 GB DDR4

  • Networking Interfaces

    GbE RJ45 port
    1/10G SFP+ port

  • Button

    Factory reset

  • RF Connections

    Internal

  • Max. power consumption

    31.2W

  • Power method

    Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) or 2-pairs (4, 5+; 7, 8-)

  • Power supply

    48VDC, 0.65A Gigabit PoE adapter (included)

  • Supported voltage range

    48VDC +/- 10%

  • Operating temperature

    -40 Degree F to 131 Degree F (-40 Degree C to 55 Degree C)

  • Operating Humidity

    5 to 95% noncondensing

  • Certifications

    FCC, IC, CE, terragraph

  • Power

    Flashing white: Bootup in progress
    White: Not connected to UISP console
    Blue: Connected to UISP console

  • Ethernet

    Flashing blue: Ethernet activity

  • GPS

    Blue: Receiving at least(4) GPS satellite signals

  • 60G

    Blue: Active connection

  • 5G

    Blue: Active connection

  • Maximum throughput

    5 GHz: 866.6Mbps
    60 GHz: 3.8Gbps/6Gbps (with channel bonding enabled)

  • Maximum Range

    4 km

  • Encryption

    WPA2-PSK (AES)

Software

Jump to...
  • OS

    airFiber

  • Modes

    PtP only

  • Services

    UISP, ping watchdog, NTP client, system log

  • Utilities

    Antenna alignment tool, discovery utility, ping, speed test

  • Management Interface

    Bluetooth management for easy setup over UISP App
    WEB UI

  • Minimum Software Requirements

    Modern Web browser or Android/iOS smartphone

  • Operating frequency

    57 to 66 GHz

  • GPS

    Yes

  • Channel bandwidth

    2160 MHz/4320 MHz (with channel bonding enabled)

  • Operating channels

    58320, 59400, 60480, 61560, 62640, 63720, 64800 MHz

Back-Up RF

Jump to...
  • Operating frequency

    US/CA:
    U-NII-1: 5150-5259 MHZ
    U-NII-3: 5725-5850 MHZ

    Worldwide: 5150-5875 MHZ

  • Channel bandwidth

    20/40/80 MHz

Physical

Jump to...
  • Dimensions

    30.68 x 26.14 x 15.06" (779 x 664 x 383mm)

  • Weight

    Without mount: 19 lbs (8.6kg)
    With mount: 28.7 lbs (13kg)

  • UPC Code

    810010076052

Models
Ubiquiti Networks airFiber 60 XG 60GHz Point-to-Point Wireless Bridge
$1,099.00

Ships from Manufacturer

Usually ships within 1-2 Days

Ubiquiti Networks airFiber 60GHz Xtreme-Range Wireless Bridge
$1,099.00

Ships from Manufacturer

Usually ships within 1-2 Days

Ubiquiti Networks airFiber 11GHz Carrier Backhaul Radio
$1,049.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Accessory TypeWireless BridgesWireless BridgesWireless Bridges

About Ubiquiti Networks airFiber 60 XG

4+ km, multi-gigabit, 60 GHz bridge with SFP+ support.

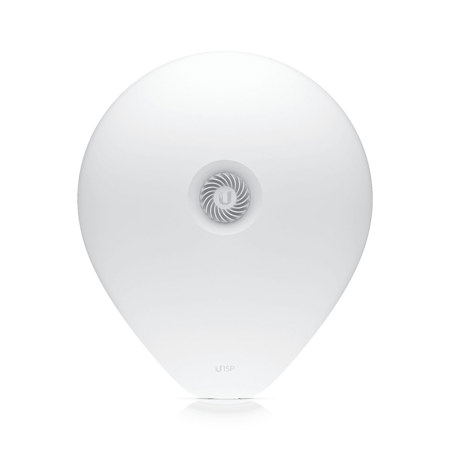

The airFiber 60 XG (AF60 XG) is a 60 GHz point-to-point(PtP) bridge with a built-in, 5 GHz backup radio. The AF60 XG delivers low-interference, low-latency throughput, making it an ideal component for carrier backhaul. It also features integrated GPS and a Bluetooth management radio to simplify setup and conjuration.

Ubiquiti Networks airFiber 60 XG Features

  • 4+ km, multi-gigabit, 60 GHz PtP bridge with SFP+ support
  • Built-in 5 GHz backup radio ensures low-latency, reliable connectivity
  • Simplify setup with Bluetooth management and integrated GPS

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience superior wireless bridge performance with airFiber 60 XG, designed for fast wifi.
  • Achieve maximum throughput up to 6Gbps with channel bonding for seamless, strong signal.
  • Extend your network range up to 4 km, perfect for connecting buildings with wide coverage.
  • Enjoy easy setup via Bluetooth using the UISP App, simplifying your network deployment.
  • Ensure a secure network with WPA2-PSK encryption, protecting your data from intrusions.
  • Built with a quad-core processor for reliable, high-speed networking at an affordable price.

What's in the box:

  • Ubiquiti Networks airFiber 60 XG 60GHz Point-to-Point Wireless Bridge
  • Gigabit PoE Adapter
  • Pole Mounting Hardware
  • Ubiquiti Networks 1 Year Limited Warranty
