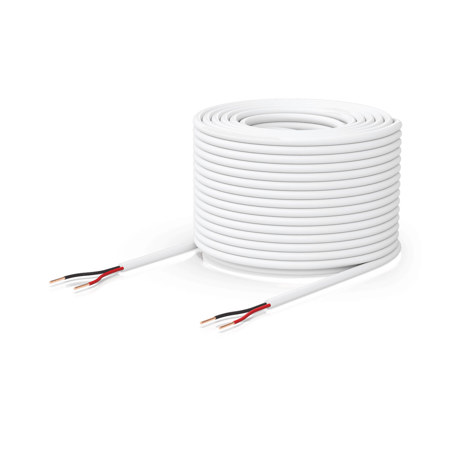

Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable
Ubiquiti Networks 500' UniFi Access 2 Co...: Picture 1 thumbnail
Ubiquiti Networks 500' UniFi Access 2 Co...: Picture 2 thumbnail
See all Ubiquiti Networks items

Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable

SKU: UBCDLR1P MFR: UACC-CABLEDOORLOCKRELAY1P
Be the first to review this itemAsk a Question
$129.00
Earn VIP Reward Points

Key Features

  • Reliable Ubiquiti cable ensures seamless connectivity for your door lock relay systems.
  • This 500' UniFi Access cable provides ample length for versatile installation options.
  • Durable TPE jacket protects the 18 AWG conductors, ensuring long-lasting performance.
  • Bare copper conductors in this cable offer superior conductivity for efficient power transfer.
  • With a VW-1 flame rating, this communications cable provides added safety and peace of mind.
  • Operating temp: -40 to 149°F, this Ethernet cable withstands harsh environments, reliable.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Calculate Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable Specifications

  • Jacket Color

    White

  • Cable Length

    500' (152.4m)

  • Jacket OD

    0.17" (4.2mm)

  • Jacket Material

    Thermoplastic elastomer (TPE)

  • Conductor Wire Gauge

    18 AWG

  • Insulation Material

    Semi-rigid polyvinyl chloride (SR-PVC)

  • Insulation Color

    Black/red (18 AWG)

  • Number of Conductors

    2

  • Conductor Material

    Solid bare copper

  • Max. Pull Tension

    16.4 kgf

  • Min. Bend Radius

    1.3" (33mm)

  • Conductor DCR

    23.2 ohm/km (18 AWG)

  • Voltage

    36V DC

  • Flame Rating

    VW-1

  • Current Rating

    18 AWG: 2A (500')

  • Storage Temperature

    -40 to 149 Degree F (-45 to 65 Degree C)

  • Ambient Operating Temperature

    -40 to 149 Degree F (-45 to 65 Degree C)

  • Weight

    10.1 lbs (4.58kg)

  • UPC Code

    810084691632

About Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable

A 500-foot (152.4 m) spool of one, low-voltage cable. 1-Pair Relay Cable: Connects an electric/magnetic lock to an Access Hub.

Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable Features

  • Connects electric/magnetic lock to Access Hub
  • 2x 18 AWG wires for power and control
  • Plenum-rated cable

Warranty Information

This product has a limited warranty of 12 months.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Reliable Ubiquiti cable ensures seamless connectivity for your door lock relay systems.
  • This 500' UniFi Access cable provides ample length for versatile installation options.
  • Durable TPE jacket protects the 18 AWG conductors, ensuring long-lasting performance.
  • Bare copper conductors in this cable offer superior conductivity for efficient power transfer.
  • With a VW-1 flame rating, this communications cable provides added safety and peace of mind.
  • Operating temp: -40 to 149°F, this Ethernet cable withstands harsh environments, reliable.

What's in the box:

  • Ubiquiti Networks 500' UniFi Access 2 Conductor 18 AWG Door Lock Relay Cable
  • Ubiquiti Networks 1 Year Limited Warranty
