Questions & Answers

FAQ

What is the processing capacity of the EdgeRouter 12P 10-Port Gigabit Router?

The EdgeRouter 12P 10-Port Gigabit Router has a processing capacity of up to 3.4 million packets per second.

Does the EdgeRouter 12P support Layer 2 switching?

Yes, the EdgeRouter 12P supports Layer 2 switching, providing more flexibility and control over your network traffic.

What type of connectivity does the EdgeRouter 12P offer?

The EdgeRouter 12P offers copper connectivity with its ten Gigabit Ethernet ports and fiber connectivity with its two SFP ports.

Can the EdgeRouter 12P be rack-mounted?

Yes, the EdgeRouter 12P can be rack-mounted using the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately).

What management system does the EdgeRouter 12P use?

The EdgeRouter 12P is managed by the Ubiquiti Network Management System (UNMS), a comprehensive controller with an intuitive user interface.

Reviews about this item

Review Summary

2021-04-29T20:24:47

Rated 5 out of 5

Ubiquiti ER-12P - Great Router/Switch

Excellent feature suite. Well made. Perfect for the application.

DAVID H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ubiquiti Networks EdgeRouter 12P Specifications

EdgeRouter 12P

EdgeRouter 12P

Jump to...
  • Max. Power Consumption

    20W (Excludes PoE Output)

  • Power Method

    External AC/DC Power Adapter, 12W(24V, 2.5A) (Included)

  • Power Supply

    External AC/DC Adapter

  • Supported Voltage Range

    9 - 30VDC

  • Button

    Reset

  • LEDs

    Data Ports: Speed/Link/Activity
    SFP Data Port: PoELink/Activity

  • Interfaces

    Management
    (1) RJ45 Serial Port/(10) Ethernet Ports (Default Port 0)

    Networking
    (10) 10/100/1000 RJ45 Ports with PoE/(2) 1 Gbps SFP Ports

  • Layer 3 Forwarding Performance

    Packet Size: 64 Bytes
    3,400,000 pps/6.8 Gbps (Line Rate)

    Packet Size: 1518 Bytes or Larger
    6.8 Gbps (Line Rate)

  • Processor

    4-Core 1 GHz, MIPS64

  • System Memory

    1 GB DDR3 RAM

  • On-Board Flash Storage

    4 GB eMMC, 8 MB SPI NOR

  • Mounting

    Wall, Rack (With optional Rack Mount Kit, model ER-RMKIT)

  • Operating Temperature

    14 to 104 Degree F (-10 to 40 Degree C)

  • Operating Humidity

    10 - 90% Noncondensing

  • Certifications

    CE, FCC, IC

  • Dimensions

    10.55 x 5.37 x 1.22" (268.1 x 136.5 x 31.1mm)

  • Weight

    1.54 lb (700g)

PoE with 24VDC Power Adapter

Jump to...
  • PoE Interfaces

    (10) 24V Passive PoE Ports, 2-pair (4, 5+; 7, 8-)

  • Passive PoE Max. Wattage Per Port

    17W (24V)

  • Voltage Range Passive PoE

    24V: 20 to 30V

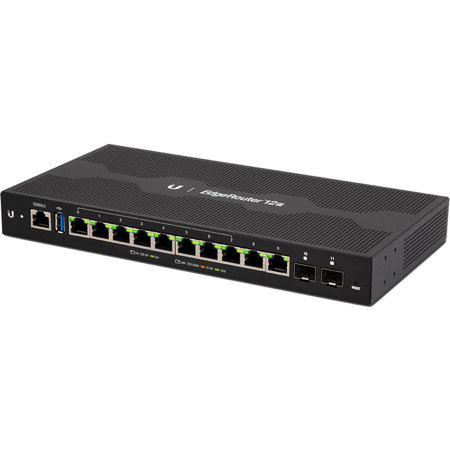

About Ubiquiti Networks EdgeRouter 12P

What sets the EdgeRouter 12P 10-Port Gigabit Router apart is its breakthrough in price and performance value. This advanced router boasts a processing capacity of up to 3.4 million packets per second, coupled with a line rate that reaches up to 8 Gbps. It's designed to deliver high-speed, reliable connectivity with ten Gigabit Ethernet ports for copper connectivity and two SFP ports for fiber connectivity.

The EdgeRouter 12P is not just about speed; it also supports Layer 2 switching, providing flexibility and control over your network traffic. Furthermore, it features 24V PoE output on ten RJ45 ports, enhancing its versatility and making it a perfect fit for various applications.

The design of the EdgeRouter 12P is as impressive as its performance. It can be conveniently rack-mounted using the EdgeRouter Rack Mount Kit, model ER-RMKIT (sold separately), ensuring it fits seamlessly into your existing setup.

But what truly elevates the EdgeRouter 12P is its centralized management system. It is fully supported and managed by the Ubiquiti Network Management System (UNMS), a comprehensive controller with an intuitive user interface. This single control plane effectively manages registered EdgeMAX devices across multiple sites, simplifying network management and enhancing efficiency.

In summary, the EdgeRouter 12P 10-Port Gigabit Router with PoE Passthrough and 2 SFP Ports is a powerful, versatile, and user-friendly device that delivers exceptional performance and value.

Ubiquiti Networks EdgeRouter 12P Features

  • (10) Gigabit RJ45 routing ports
  • 24V PoE support on RJ45 ports
  • Ports 0-7 can be configured for line-rate Layer 2 switching
  • (2) Gigabit SFP ports
  • 3.4 million packets per second for 64-byte packets
  • 6.8 Gbps for packets 1518 bytes or larger in size
  • Silent, fanless operation
  • Compact, durable metal case

Key Features

  • Supports Layer 2 switching for enhanced network traffic control
  • Features 24V PoE output on ten RJ45 ports for versatile application

What's in the box:

  • EdgeRouter 12P
  • 2x Wall Mount Screws
  • 2x Wall Mount Anchors
  • Ground Screw
  • Power Cord
  • Power Adapter (24V/2.5A)
  • Cable Clip
  • Ubiquiti Networks Lifetime Limited Warranty
