Ubiquiti Networks EdgeSwitch 10X 8-Port Managed PoE+ Gigabit Switch with 2x SFP Port
SKU: UBES10X MFR: ES-10X
$115.00
Key Features
- Experience seamless networking with 8 Gigabit ports on this Ubiquiti EdgeSwitch.
- Enjoy high bandwidth and reliable connections, perfect for demanding network tasks.
- Power your devices easily with 24V passive PoE, simplifying your network setup.
- Manage your network efficiently with advanced Layer 3 features on this managed switch.
- Maximize power efficiency with a low 8W consumption, reducing energy costs.
- Achieve optimal performance with 10 Gbps total non-blocking throughput capacity.
Free Shipping
See Options
1
Protect your gear with Adorama Protect.* Learn more
1 Year
$7.99
2 Year
$12.99
3 Year
$21.99
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About Ubiquiti Networks EdgeSwitch 10X
Optimized for WISP Deployments
Ubiquiti Networks introduces the EdgeSwitch 10X, our most affordable managed switches with SFP ports.

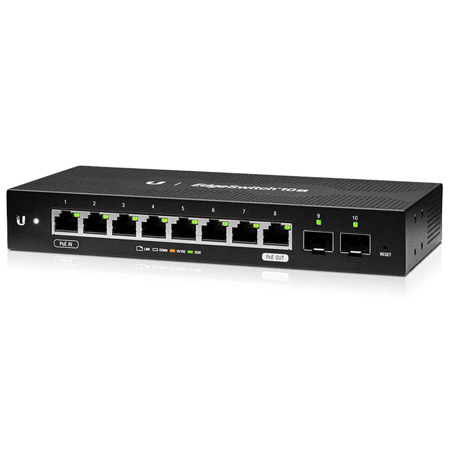

For the EdgeSwitch 10X, model ES-10X, eight Gigabit RJ45 ports offer copper connectivity with PoE input on port 1 and 24V PoE passthrough on port 8. Two SFP ports offer fiber connectivity.
Switching Performance
Delivering top price/performance value, the EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss, as well as an extensive suite of advanced Layer 2 switching features and protocols.
For its total, non-blocking throughput, the EdgeSwitch supports up to 10 Gbps.
Fiber Connectivity
The EdgeSwitch includes two SFP ports, providing up to 1 Gbps uplinks.
PoE Flexibility
To simplify your infrastructure, the EdgeSwitch 10XP offers configurable 24V passive PoE on all RJ45 ports, while the EdgeSwitch 10X offers configurable 24V PoE passthrough on port 8.
Easy Management
The browser-based configuration interface offers intuitive control using a redesigned Ul. Management is also available through the Ubiquiti Network Management System (UNMS), which is a comprehensive management controller featuring an easy-to-use UI. You can use a single control plane to manage registered EdgeMAX devices across multiple networks and sites.
Comprehensive User Interface
Sporting an updated design for an improved user experience, the EdgeSwitch Configuration Interface allows you to configure and monitor switch features in a graphical user interface. It offers intuitive management with a virtual view of the ports, showing physical connectivity, speed, and PoE status.
EdgeSwitch 10X
• 8x Gigabit RJ45 Ports
• 2x SFP Ports
• Non-Blocking Throughput: 10 Gbps
• Switching Capacity: 20 Gbps
• Forwarding Rate: 14.88 Mpps
• Supports PoE Input on Port 1
• Software-selectable PoE Passthrough on Port 8
• Powered by 24V Passive PoE or External AC/DC Adapter
• DC Jack Supports Battery Backup with EdgePower (sold separately)
• Wall- or Rack-Mountable
Ubiquiti Networks EdgeSwitch 10X Features
- 8x Gigabit RJ45 Ports
- 2x SFP Ports
- Non-Blocking Throughput: 10 Gbps
- Switching Capacity: 20 Gbps
- Forwarding Rate: 14.88 Mpps
- Supports PoE Input on Port 1
- Software-selectable PoE Passthrough on Port 8
- Powered by 24V Passive PoE or External AC/DC Adapter
- DC Jack Supports Battery Backup with EdgePower (sold separately)
- Wall or Rack-Mountable
Warranty Information
This product has a limited warranty of 12 months.
