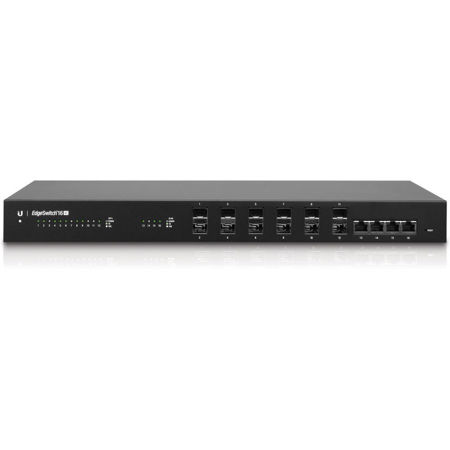

Ubiquiti Networks EdgeSwitch 16 XG 10G 16-Port Managed Aggregation Switch
See all Ubiquiti Networks items

Ubiquiti Networks EdgeSwitch 16 XG 10G 16-Port Managed Aggregation Switch

SKU: UBES16XG

This item is no longer available.

Recommended Alternatives

Ubiquiti Networks : Picture 1 regular
Ubiquiti Networks UniFi Switch, 8-ports, 60W, with 4-ports
$114.99
Ubiquiti Networks EdgeSwitch 48: Picture 1 regular
Ubiquiti Networks EdgeSwitch 48 Port 500W Gigabit Switch with SFP and SFP+
$899.00
Ubiquiti Networks USW-24-POE: Picture 1 regular
Ubiquiti Networks USW-24-POE Gen 2 120W Gigabit Layer 2 Ethernet Switch with SFP
$379.00
Ubiquiti Networks UniFi Lite: Picture 1 regular
Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch
$199.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks EdgeSwitch 16 XG Specifications

EdgeSwitch XG

EdgeSwitch XG

Jump to...

  • Enclosure Characteristics

    SGCC Steel

  • Total Non-Blocking Throughput

    160 Gbps

  • Switching Capacity

    320 Gbps

  • Forwarding Rate

    238.10 Mpps

  • Max. DC Power Consumption

    36W (Excludes SFP/SFP+ Modules)

  • Power Method

    AC: 100-240VAC/50-60 Hz, Universal Input
    DC: DC 56W, 25 to 16V, with 2.5 mm DC Power Inline Connector

  • Supported Voltage Range

    100 to 240VAC
    25 to 16VDC

  • Power Supply

    AC/DC, Internal, 56W DC

  • LEDs Per Data Port

    Speed/Link/Activity

  • Networking Interfaces

    (12) 1/10 Gbps SFP+ Ethernet Ports
    (4) 1/10 Gbps RJ45 Ethernet Ports

  • Management Interface

    (1) RJ45 Serial Port, Ethernet In/Out Band

  • Certifications

    CE, FCC, IC

  • Rack Mount

    Yes, 1U High

  • ESD/EMP Protection

    Air: +/- 24 kV, Contact: +/- 24 kV

  • Operating Temperature

    -5 to 40 deg. C (23 to 104 deg. F)

  • Operating Humidity

    5 to 95% Noncondensing

  • Shock and Vibration

    ETSI300-019-1.4 Standard

Software

Jump to...

  • Core Switching

    ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
    IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
    IEEE 802.1D: Spanning Tree Compatibility
    IEEE 802.1S: Multiple Spanning Tree Compatibility
    IEEE 802.1W: Rapid Spanning Tree Compatibility
    IEEE 802.1Q: Virtual LANs with Port-Based VLANs
    IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
    IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
    IEEE 802.3ab: 1000BASE-T

  • Core Switching (Cont.)

    IEEE 802.3an-2006: 10GBASE-T
    IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
    IEEE 802.3ac: VLAN Tagging
    IEEE 802.3ad: Link Aggregation
    IEEE 802.3x: Flow Control
    IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
    IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
    IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)

  • Core Switching (Cont..)

    RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
    RFC 5171: Unidirectional Link Detection (UDLD) Protocol

  • Advanced Layer 2

    Broadcast Storm Recovery
    Broadcast/Multicast/Unknown Unicast Storm Recovery
    DHCP Snooping
    IGMP Snooping Querier
    Independent VLAN Learning (IVL) Support
    Jumbo Ethernet Frame Support
    Port MAC Locking
    Port Mirroring
    Protected Ports
    Static MAC Filtering
    TACACS+
    Voice VLANs
    Unauthenticated VLAN
    Internal 802.1X Authentication Server

  • Platform

    DHCP Server
    Maximum Number of Pools: 128
    Maximum Number of Leases (Total): 2048
    Routing
    Number of Routes: 16
    Number of Routing Interfaces: 15
    VLANs: 255
    MAC Addresses: 8k
    MSTP Instances: 4
    LAGs: 6
    ACLs: 100 with 10 Rules per Port
    Traffic Classes (Queues): 8

  • System Facilities

    Event and Error Logging Facility
    Run-Time and Configuration Download Capability
    PING Utility
    FTP/TFTP Transfers via IPv4/IPv6
    Malicious Code Detection
    BootP and DHCP
    RFC 2021: Remote Network Monitoring Management Information Base Version 2
    RFC 2030: Simple Network Time Protocol (SNTP)
    RFC 2819: Remote Network Monitoring Management Information Base
    RFC 2865: RADIUS Client
    RFC 2866: RADIUS Accounting

  • System Facilities (Cont.)

    RFC 2868: RADIUS Attributes for Tunnel Protocol Support
    RFC 2869: RADIUS Extensions
    RFC 3579: RADIUS Support for EAP
    RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
    RFC 3164: BSD Syslog Protocol

  • Management

    Web UI
    Industry-Standard CLI
    IPv6 Management
    Password Management
    Autoinstall Support for Firmware Images and Configuration Files
    SNMP v1, v2 and v3
    SSH 1.5 and 2.0
    SSL 3.0 and TLS 1.0
    Secure Copy (SCP)
    Telnet (Multi-Session Support)

  • Layer 3 Routing

    Static Routing

  • QoS

    Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:
    Time-Based ACL
    Source/Destination IP Address
    TCP/UDP Source/Destination Port
    IP Protocol Type
    Type of Service (ToS) or Differentiated Services (DSCP) Field
    Source/Destination MAC Address
    EtherType
    IEEE 802.1p User Priority
    VLAN ID
    RFC 1858: Security Considerations for IP Fragment Filtering

  • QoS (Cont.)

    Optional ACL Rule Attributes
    Assign Flow to a Specific Class of Service (CoS) Queue
    Redirect Matching Traffic Flows
    Differentiated Services (DiffServ)
    Classify Traffic Based on Same Criteria as ACLs
    Mark the IP DSCP or Precedence Header Fields, Optional
    Police the Flow to a Specific Rate with Two-Color Aware Support
    RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
    RFC 2475: An Architecture for Differentiated Services

  • QoS (Cont..)

    RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
    RFC 3246: An Expedited Forwarding PHB
    RFC 3260: New Terminology and Clarifications for DiffServ
    Class of Service (CoS) Queue Mapping Configuration
    AutoVoIP: Automatic CoS Settings for VoIP
    IP DSCP-to-Queue Mapping
    Configurable Interface Trust Mode (IEEE 802.1p, DSCP, or Untrusted)
    Interface Egress Shaping Rate
    Strict Priority versus Weighted Scheduling per Queue

General

Jump to...

  • Dimensions

    443 x 221 x 43mm (17.44 x 8.70 x 1.69")

  • Weight

    Rack-Mount Brackets Included: 5.97 lbs (2.71kg)
    Rack-Mount Brackets Excluded: 5.78 lbs (2.62kg)

Other

Jump to...

  • UPC Code

    810354024528

About Ubiquiti Networks EdgeSwitch 16 XG

From the EdgeMAX product line, the Ubiquiti Networks EdgeSwitch 16 XG 10G 16-Port Managed Aggregation Switch is a high-performance, fully managed, 10G fiber switch designed to enhance network capacity and deliver high-bandwidth services to expanding networks. This advanced switching technology is equipped with an extensive suite of Layer-2 switching features and protocols, along with Layer-3 routing capability, making it an ideal solution for complex network configurations.

The EdgeSwitch 16 XG boasts 12 SFP+ ports for fiber connectivity, 4 10G RJ45 ports for copper connectivity, and 1 RJ45 serial console port. It supports 10GBASE-T, the standard for 10 Gbps connections using Cat6 or higher cabling and RJ45 connectors, offering maximum performance and low latency as an aggregation switch.

With a non-blocking throughput of 160 Gbps, a switching capacity of 320 Gbps, and a forwarding rate of 238.10 Mpps, the EdgeSwitch 16 XG is capable of processing traffic on all ports at line rate without any packet loss. This ensures a smooth, efficient, and reliable network performance.

The EdgeSwitch 16 XG is also rack-mountable and comes with rack-mount brackets for easy installation. It offers a DC input option for either redundant or stand-alone operation, providing flexibility in various network setups.

For easy and convenient management, the EdgeSwitch 16 XG features a user-friendly configuration interface that allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, a standard command-line interface (CLI) is available through the serial console port, telnet, and SSH.

The EdgeSwitch 16 XG operates on a sophisticated system that offers not only basic switching features but also a host of advanced features. These include MSTP/RSTP/STP, VLAN, Private VLAN, Voice VLAN, Link Aggregation, DHCP Snooping, IGMP Snooping, TACACS+, RADIUS, 802.1X, MAC Filtering, ACL, DiffServ, CoS, Static Routing, and DHCP Server Functionality. These features make the EdgeSwitch 16 XG a powerful and versatile solution for any network.

Ubiquiti Networks EdgeSwitch 16 XG Features

  • Fully managed, 10G fiber switch from Ubiquiti Networks' EdgeMAX product line
  • Equipped with 12 SFP+ ports, 4 10G RJ45 ports, and 1 RJ45 serial console port
  • Non-blocking throughput of 160 Gbps, switching capacity of 320 Gbps, and forwarding rate of 238.10 Mpps
  • User-friendly configuration interface for easy management and monitoring
  • Advanced features including VLAN, Link Aggregation, DHCP Snooping, Static Routing, and more
  • Rack-mountable design with included brackets and DC input option for versatile installation

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Fully managed, 10G fiber switch from Ubiquiti Networks' EdgeMAX product line
  • Equipped with 12 SFP+ ports, 4 10G RJ45 ports, and 1 RJ45 serial console port
  • User-friendly configuration interface for easy management and monitoring
  • Advanced features including VLAN, Link Aggregation, DHCP Snooping, Static Routing, and more
  • Rack-mountable design with included brackets and DC input option for versatile installation

What's in the box:

  • Ubiquiti Networks EdgeSwitch 16 XG 10G 16-Port Managed Aggregation Switch
  • Power Cord
  • 2x Rack-Mount Brackets
  • 8x Bracket Screws
  • 4x Mounting Screws (#10-32 x 5/8 ")
  • 4x Cage Nuts (#10-32 x 5/8 ")
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
