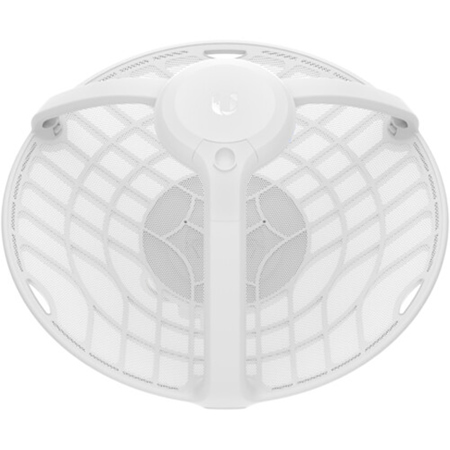

Ubiquiti Networks GigaBeam Long-Range airMAX AC 60/5 GHz Radio

SKU: UBGBELRUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the throughput of the GigaBeam Long-Range airMAX AC 60/5 GHz Radio?

The GigaBeam Long-Range airMAX AC 60/5 GHz Radio delivers an impressive throughput of 1+ Gbps, ensuring high-speed data transfers for bandwidth-intensive tasks.

What is the range of the GigaBeam Long-Range airMAX AC 60/5 GHz Radio?

The GigaBeam Long-Range airMAX AC 60/5 GHz Radio has a reach of up to 2 km, making it suitable for large homes, businesses, and outdoor spaces requiring reliable long-distance connectivity.

What is the purpose of the 5 GHz radio in the GigaBeam Long-Range airMAX AC 60/5 GHz Radio?

The 5 GHz radio in the GigaBeam Long-Range airMAX AC 60/5 GHz Radio serves as a failover mechanism. This ensures continuous operation even in the event of 60 GHz interference or obstructions.

How easy is it to set up the GigaBeam Long-Range airMAX AC 60/5 GHz Radio?

The GigaBeam Long-Range airMAX AC 60/5 GHz Radio features a dedicated management radio, allowing for straightforward configuration via Wi-Fi. This eliminates the need for complex wiring or professional installation.

Who is the manufacturer of the GigaBeam Long-Range airMAX AC 60/5 GHz Radio?

The GigaBeam Long-Range airMAX AC 60/5 GHz Radio is manufactured by Ubiquiti Networks, a leader in wireless networking technology known for high-quality networking equipment.

Shopper : Why Did You Choose This?RICHARD E : It's a great system

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ubiquiti Networks GigaBeam LR Specifications

General

General

Jump to...
  • Enclosure

    Aluminum, UV-stabilized Polycarbonate

  • Antenna Gain

    5 Ghz: 11 dBi
    60 Ghz: 38 dBi

  • Networking Interface

    (1) 10/100/1000 Mbps Ethernet Port

  • Max. Power Consumption

    11W

  • Power Method

    Passive PoE, Pins 4, 5+ and 7, 8-

  • Power Supply

    24VDC, 0.5A Gigabit PoE Adapter (Included)

  • Voltage Range

    +22 to +26VDC

  • LEDs

    Power/Ethernet/5G/60G

  • Wind Loading

    56 N @ 200 km/h
    <(12.6 lbf @ 125 mph)

  • Wind Survivability

    200 km/h (125 mph)

  • Mounting

    Pole Mount (Included)

  • ESD/EMP Protection

    +/- 24kV Contact/Air

  • Operating Temperature

    -40 to 60 Degree C (-40 to 140 Degree F)

  • Operating Humidity

    5 to 95% Noncondensing

  • Certifications

    FCC, IC, CE

  • Max. Conducted TX Power

    5/60 GHz Combined: 25 dBm

  • Channel Bandwidth

    60 Ghz: 2160 Mhz
    5 Ghz: 20/40/80 Mhz

Operating Frequency

Jump to...
  • Operating Frequency

    U-NII-1: 5150 - 5250 MHz
    U-NII-2A: 5250 - 5350 MHz
    U-NII-2C: 5470 - 5725 MHz
    U-NII-3: 5725 - 5850 MHz
    57,000 - 66,000 MHz

Management Radio

Jump to...
  • Management Radio

    2412 - 2462 MHz

Physical

Jump to...
  • Dimensions

    16.34 x 16.34 x 11.93" (415 x 415 x 303mm)

  • Weight

    Without Mount: 3.09 lbs (1.4kg)
    With Mount: 3.97 lbs (1.8kg)

About Ubiquiti Networks GigaBeam LR

Because connectivity and range are paramount in today's high-demand network environments, the GigaBeam Long-Range airMAX AC 60/5 GHz Radio stands out as an innovative solution for robust wireless bridging. This high-tech device boasts an impressive 1+ Gbps throughput, ensuring rapid data transmission that is essential for bandwidth-intensive tasks. With a reach of up to 2 km, the GigaBeam LR is engineered for expansive coverage, making it an ideal choice for sprawling homes, businesses, and outdoor spaces requiring reliable long-distance connectivity.

The GigaBeam LR features a high-gain dish antenna specifically designed to minimize interference and maximize performance in long-range deployments. Its 60 GHz radio frequency is optimized for clear, unobstructed transmission, reducing the likelihood of signal degradation. Additionally, the inclusion of a 5 GHz radio provides a dependable failover mechanism, ensuring continuous operation even in the event of 60 GHz interference or obstructions.

For network administrators, the GigaBeam LR simplifies the setup process with a dedicated management radio. This allows for straightforward configuration via Wi-Fi, eliminating the need for complex wiring or professional installation. The device fully utilizes a broad 2.16 GHz bandwidth on the 60 GHz link, offering ample capacity for simultaneous high-speed data transfers.

Crafted by Ubiquiti Networks, a leader in wireless networking technology, the GigaBeam LR is not only stylish but also durable, designed to withstand the rigors of extended outdoor use. Its reliable performance, coupled with Ubiquiti's reputation for quality, makes the GigaBeam Long-Range airMAX AC 60/5 GHz Radio a top-tier choice for anyone seeking to extend their network's reach without sacrificing speed or stability.

Ubiquiti Networks GigaBeam LR Features

  • 60 GHz radio with 5 GHz radio backup
  • Low-interference 60 GHz spectrum
  • Up to 1+ Gbps with low latency
  • Long-range performance
  • 2.4 GHz management radio
  • Full bandwidth support: 2.16 GHz

Key Features

  • High-performance long-range airMAX AC 60/5 GHz Radio for robust wireless connectivity
  • Delivers an impressive 1+ Gbps throughput for high-speed data transfers
  • Provides expansive coverage with a reach of up to 2 km, ideal for large homes and businesses
  • Features a high-gain dish antenna, designed to minimize interference and maximize performance
  • Includes a 5 GHz radio for reliable failover, ensuring continuous operation
  • Offers easy setup via Wi-Fi with a dedicated management radio, simplifying network configuration

What's in the box:

  • Dish
  • Main Arm
  • 2x Stabilizer Arms
  • Mounting Bracket
  • Screw
  • U-Clamp
  • 2x Flat Washers
  • 2x Lock Washers
  • 2x Flange Nuts
  • Gigabit PoE (24V/0.5A) with Mounting Bracket
  • Power Cord
  • Ubiquiti Networks 1 Year Limited Warranty
