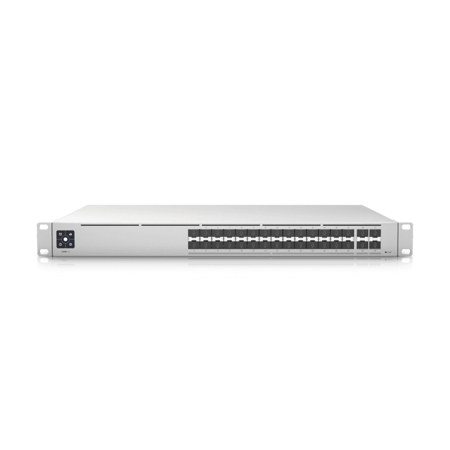

Ubiquiti Networks UniFi Hi-Capacity Aggregation 32-Port SFP+ Managed Network Switch

SKU: UBGREGATION MFR: USW-PRO-AGGREGATION
Earn VIP Reward Points

Key Features

  • Maximize your network with this 32-Port SFP+ Managed Network Switch, built for high bandwidth.
  • Experience seamless network management with advanced Layer 3 features, including DHCP server/relay.
  • Ensure network stability with STP & RSTP, plus advanced IGMP configuration for optimal performance.
  • Utilize Pro AV Profiles (Play, Dante, Q-SYS) for superior audio/video streaming across your network.
  • This Ubiquiti switch offers robust security with 802.1X control, DHCP snooping, and MAC-based ACLs.
  • Enjoy reliable performance with a 760 Gbps switching capacity and 380 Gbps non-blocking throughput.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Hi-Capacity Aggregation Specifications

General

General

Jump to...
  • Port Layout

    10G SFP+: 28
    25G SFP28: 4

  • Redundancy

    DC Power Backup

  • Layer 3

    Yes

  • Form Factor

    Rack mount (1U)

Performance

Jump to...
  • Switching Capacity

    760 Gbps

  • Total Non-Blocking Throughput

    380 Gbps

  • Forwarding Rate

    565 Mpps

  • Supported VLANs

    1000

  • MAC Address Table Size

    32000

  • L3 Table Size

    ARP Entries: 16000
    IPv4 Routes: 16000

  • Packet Buffer Size

    4 MB

Layer 3 Features

Jump to...
  • DHCP Server

    Yes (Local Networks)

  • DHCP Relay

    Yes

  • Inter-VLAN Routing

    Yes (Local Networks)

  • Static Routing

    Yes (Local Networks)

Layer 2 Features

Jump to...
  • LACP Port Aggregation

    Yes

  • STP & RSTP

    Yes

  • QoS

    Yes (DSCP)

  • Pro AV Profiles

    Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

  • Advanced IGMP Configuration

    Yes (Querier, Fast Leave, Router Port)

  • IGMP Snooping

    Yes

  • 802.1X Control

    Yes

  • MAC-Based ACLs & Device Isolation

    Yes

  • DHCP Snooping & Guarding

    Yes

  • Egress Rate Limit

    Yes

  • Flow Control

    Yes

  • Storm Control

    Yes

  • Multicast & Broadcast Rate Limiting

    Yes

  • MAC Address Blocking

    Yes

  • IP-Based ACLs & Network Isolation

    Yes

  • MAC-Based Port Restriction

    Yes

  • Port Isolation

    Yes

  • Port Mirroring

    Yes

  • Jumbo Frames

    Yes

  • LLDP-MED

    Yes

  • Voice VLAN

    Yes

  • Loop Protection

    Yes

Hardware

Jump to...
  • Max. Power Consumption

    100W

  • Power Method

    1x Universal input, 100-240V AC, 50/60 Hz
    1x USP RPS DC input

  • Power Input Method

    AC input

  • Power Supply

    AC/DC, internal, 100W

  • Supported Voltage Range

    100-240V AC

  • Management

    Ethernet
    AR

  • Heat Dissipation

    341.2 BTU/hr (Excluding PoE Output)

  • Supported Rack Depth

    15.7-47.2" (400-1200mm)

  • LCM Display

    1.3" touchscreen

  • ESD/EMP Protection

    Air: +/- 16kV, contact: +/- 12kV

  • Ambient Operating Temperature

    23 Degree F to 104 Degree F (-5 Degree C to 40 Degree C)

  • Ambient Operating Humidity

    10 to 90% noncondensing

  • Certifications

    CE, FCC, IC

  • NDAA Compliant

    Yes

Physical

Jump to...
  • Color

    White

  • Material

    Enclosure: SGCC steel
    Mount: SGCC steel

  • Dimensions

    17.4 x 12.8 x 1.7" (442 x 325 x 44mm)

  • Weight

    Without mounting brackets: 10.1 lbs (4.6kg)
    With mounting brackets: 10.4 lbs (4.7 kg)

  • UPC Code

    810010072597

About Ubiquiti Networks Hi-Capacity Aggregation

Build and expand your network with the UniFi Switch, part of the Ubiquiti Networks UniFi Enterprise System. The UniFi Switch, model USW-Aggregation-Pro, is a configurable 10G fiber Layer-3 switch. It offers 28 10G SFP+ fiber links to your devices and 4 25G SFP28 fiber uplink options to your enterprise network.

The USW-Aggregation-Pro features a 1.3" touch LCM. The LCM provides current switch states and the necessary information you need for quick diagnosis.

Managed and configured by the UniFi Controller with UniFi Mobile app support, the UniFi Switch offers an extensive suite of advanced Layer-3 switching protocols and features, including operation mode (switching, mirroring, or aggregate) per port, Inter-VLAN routing, static routing, and DHCP server. The UniFi Controller and mobile app allow admins to configure and monitor virtually all of the switch features in a graphical user interface from anywhere.

RPS DC input is a new feature on USW-Aggregation-Pro, this DC input provides redundant power when the switch is connected to USP-RPS (UniFi Smart Power RPS) via RPS DC input. When the switch's internal PSU is off, the Switch function can keep working by backup power from the USP-RPS input port.

Ubiquiti Networks Hi-Capacity Aggregation Features

  • Features 28x 10G SFP+ links and 4x 25G SFP28 uplinks for high-speed connectivity
  • Includes a 1.3" touch LCD for quick switch status and diagnostics
  • Managed via UniFi Controller and mobile app for easy remote configuration
  • Supports advanced Layer-3 features like inter-VLAN routing and static routing
  • Redundant power input via USP-RPS ensures continuous network operation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Maximize your network with this 32-Port SFP+ Managed Network Switch, built for high bandwidth.
  • Experience seamless network management with advanced Layer 3 features, including DHCP server/relay.
  • Ensure network stability with STP & RSTP, plus advanced IGMP configuration for optimal performance.
  • Utilize Pro AV Profiles (Play, Dante, Q-SYS) for superior audio/video streaming across your network.
  • This Ubiquiti switch offers robust security with 802.1X control, DHCP snooping, and MAC-based ACLs.
  • Enjoy reliable performance with a 760 Gbps switching capacity and 380 Gbps non-blocking throughput.

What's in the box:

  • Ubiquiti Networks UniFi Hi-Capacity Aggregation 32-Port SFP+ Managed Network Switch
  • 2x Rackmount Brackets
  • 8x M4 Screws
  • 4x M5 Screws
  • 4x M5 Screw Anchors
  • Square
  • SFP+ Cable
  • Power Cable
  • Ubiquiti Networks 1 Year Limited Warranty
