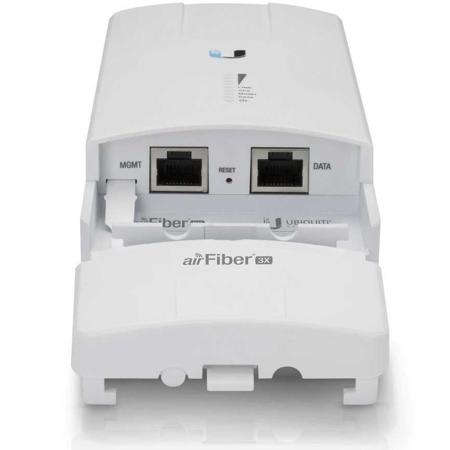

Ubiquiti Networks airFiber 3X 3GHz Carrier Backhaul Radio

SKU: UBIAF3XUS

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks AF-3X Specifications

  • RF Connectors

    2x RP-SMA Weatherproof (CH0, CH1)
    SMA Weatherproof (GPS)

  • GPS Antenna

    External, Magnetic Base

  • Power Supply

    24V, 1A PoE Gigabit Adapter (Included)

  • Power Method

    Passive Power over Ethernet
    Pins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)

  • Max. Power Consumption

    17W at Max. Power/Duty Cycle

  • Supported Voltage Range

    19-29VDC

  • Mounting

    airFiber X Mount (Rocket Mount Compatible)
    GPS Pole Mount (Included)

  • Operating Temperature

    -40 to 55 deg. C / -40 to 131 deg. F

  • Data Port

    10/100/1000 Ethernet Port

  • Management Port

    10/100 Ethernet Port

  • Processor

    INVICTUS IC

  • Maximum Throughput

    525 Mbps

  • Maximum Range

    200+ km

  • Encryption

    128-bit AES

  • OS

    airOS F

  • Wireless Modes

    Master/Slave

  • Frequency Range

    2400-2500 MHz (Dependent on Regulatory Region)

  • Max. Conducted TX Power

    30dBm (Dependent on Regulatory Region)

  • Frequency Accuracy

    +/- 2.5 ppm without GPS Synchronization
    +/- 0.2 ppm with GPS Synchronization

  • Channel Bandwidth

    3.5/5/7/10/14/20/28/30/40/50/56 MHz Selectable
    Programmable Uplink and Downlink Duty Cycles
    Independently Programmable TX and RX Frequencies

  • Max. TX Power

    8x: 21 - 22 dBm; 6x: 23 - 24 dBm; 4x: 25 - 26 dBm; 2x: 29 dBm; 1x: 29 dBm

  • Receive Sensitivity

    Rate: 8x; Modulation: 256QAM MIMO; Sensitivity(10MHz): -66dBm; Sensitivity(20MHz): -64dBm; Sensitivity(30MHz): -62dBm; Sensitivity(40MHz): -61dBm; Sensitivity(50MHz): -60dBm

    Rate: 6x; Modulation: 64QAM MIMO; Sensitivity(10MHz): -74dBm; Sensitivity(20MHz): -71dBm; Sensitivity(30MHz): -69dBm; Sensitivity(40MHz): -68dBm; Sensitivity(50MHz): -67dBm

  • Receive Sensitivity (1 cont..)

    Rate: 4x; Modulation: 16QAM MIMO; Sensitivity(10MHz): -81dBm; Sensitivity(20MHz): -78dBm; Sensitivity(30MHz): -76dBm; Sensitivity(40MHz): -75dBm; Sensitivity(50MHz): -74dBm

    Rate: 2x; Modulation: 1QPSK MIMO; Sensitivity(10MHz): -88dBm; Sensitivity(20MHz): -85dBm; Sensitivity(30MHz): -83dBm; Sensitivity(40MHz): -82dBm; Sensitivity(50MHz): -81dBm

  • Receive Sensitivity (2 cont..)

    Rate: 1x; Modulation: 1/2 Rate QPSK x RT; Sensitivity(10MHz): -90dBm; Sensitivity(20MHz): -87dBm; Sensitivity(30MHz): -85dBm; Sensitivity(40MHz): -84dBm; Sensitivity(50MHz): -83dBm

  • Certifications

    CE, FCC, IC

  • Dimensions

    224 x 82 x 48mm / 8.82 x 3.23 x 1.89"

  • Weight

    0.35kg / 0.77lbs

  • UPC Code

    192223057166

About Ubiquiti Networks AF-3X

From Ubiquiti Networks comes the revolutionary airFiber 3X 3GHz Carrier Backhaul Radio, a game-changer in the wireless broadband market. This modular airFiber radio system is designed to serve a broad spectrum of frequencies and is compatible with a wide array of Ubiquiti antennas. The airFiber 3X builds on the proven design of the airFiber system, offering the flexibility to customize airFiber backhaul links or upgrade existing Rocket Point to Point (PtP) links.

The airFiber 3X is engineered for superior performance, specifically designed for long-distance, outdoor wireless applications. It leverages Ubiquiti's INVICTUS custom silicon and proprietary radio architecture to surpass the limitations of generic Wi-Fi chips. This results in superior performance, long-range capability, DFS flexibility, and higher delivered throughput.

Featuring industry-leading spectral efficiency of up to 17.1 Mbps/MHz, the airFiber 3X can process line rate data packets of up to 525 Mbps of real data throughput. It also boasts innovative Xtreme Range Technology (XRT), enabling a range of up to 200+ km.

The compact form factor of the airFiber 3X allows for deployment flexibility. It can be used with airFiber Slant 45 antennas or can instantly upgrade a 5 GHz Rocket link that uses a RocketDishRD-5G30/RD-5G34 antenna. This makes the airFiber 3X a versatile solution for carrier backhaul across the globe. Deploy the model that meets your specific spectrum requirements, with options for 2.4, 3, 4, 5, or 11 GHz.

The airFiber 3X offers channel width flexibility, allowing independent configuration of TX and RX channel frequencies to avoid local interference. It also supports different uplink and downlink duty cycles to accommodate asymmetric traffic requirements.

With its proprietary Hybrid Division Duplexing (HDD) technology, the airFiber 3X provides ultra-low latency and the highest TDD throughput available. This, coupled with precise GPS frame synchronization, allows co-located airFiber X radios to transmit and receive data without interference, leading to better frequency reuse and increased network stability.

The airFiber 3X also features an ultra-clean transmitter output, reducing broadband noise and enabling higher-order modulations like 256QAM for greater throughput. The 3 GHz frequency band offers interference-free operation, making the AF-3X a reliable backhaul solution. Please note that a license may be required in some regions. The channel centers are selectable in 1 MHz increments, offering options of 3.5, 5, 7, 10, 14, 20, 28, 30, 40, 50, or 56 MHz.

Ubiquiti Networks AF-3X Features

  • Modular airFiber 3X radio system compatible with a range of Ubiquiti antennas
  • Custom INVICTUS processor designed for long-distance outdoor wireless applications
  • High spectral efficiency up to 17.1 Mbps/MHz with 525 Mbps real throughput
  • Xtreme Range Technology (XRT) for connectivity up to 200+ km
  • Channel width flexibility with independent TX and RX frequency configurations
  • GPS frame synchronization for stable network performance with multiple co-located units

Key Features

  • Modular airFiber 3X radio system compatible with a range of Ubiquiti antennas
  • Custom INVICTUS processor designed for long-distance outdoor wireless applications
  • High spectral efficiency up to 17.1 Mbps/MHz with 525 Mbps real throughput
  • Xtreme Range Technology (XRT) for connectivity up to 200+ km
  • Channel width flexibility with independent TX and RX frequency configurations
  • GPS frame synchronization for stable network performance with multiple co-located units

What's in the box:

  • Ubiquiti Networks airFiber 3X 3GHz Carrier Backhaul Radio
  • GPS Antenna Mount
  • External GPS Antenna
  • Metal Strap
  • Cable Ties
  • PoE Adapter with Mounting Bracket
  • Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Warranty
