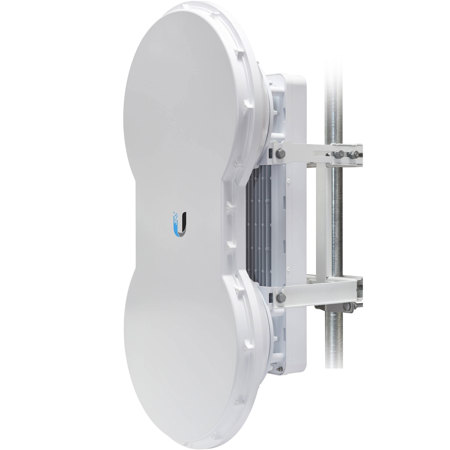

Ubiquiti Networks airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio
See all Ubiquiti Networks items

Ubiquiti Networks airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio

SKU: UBIAF5U
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main use of the airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio?

The airFiber-5U is primarily used as a wireless bridge for high-speed, long-range connectivity. It's suitable for connecting separate networks or extending the range of an existing network.

What frequencies does the airFiber-5U operate on?

The airFiber-5U operates on worldwide, license-free, 24 or 5 GHz frequencies, allowing users to deploy it almost anywhere (subject to local country regulations).

What is the throughput of the airFiber-5U?

The airFiber-5U delivers a real throughput of up to 1.2+ Gbps, surpassing conventional wired backhauls.

What type of antenna system does the airFiber-5U feature?

The airFiber-5U features a dual-independent, 2x2 MIMO, high-gain reflector antenna system, which helps extend link budgets by eliminating the extra RF losses caused by the switches or duplexers required in systems with common TX/RX antennas.

Who is the manufacturer of the airFiber-5U?

The airFiber-5U is manufactured by Ubiquiti Networks, a reputable brand known for producing high-quality networking equipment.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks AF-5U Specifications

  • Max. Power Consumption

    40 W

  • Power Supply

    50V, 1.2A PoE GigE Adapter (Included)

  • Power Method

    Passive Power over Ethernet

  • Supported Voltage Range

    42-58VDC

  • Wind Loading

    863 N at 200 km/hr (194 lbf at 125 mph)

  • Wind Survivability

    200 km/hr (125 mph)

  • Mounting

    Pole Mount Kit (Included)

  • Operating Temperature

    -40 to 55 deg. C / -40 to 131 deg. F

  • LEDs

    12x Status LEDs: Data Port Speed
    Data Port Link/Activity
    Management Port Link/Activity
    Management Port Speed
    GPS Synchronization
    Modulation Mode
    Master/Slave
    Link Status
    Modulation Mode 0.25x to 4x, 6x, 8x, 10x (Unlabeled), Overload
    Remote and Local Displays (Calibrated Signal Strength)

  • Operating Frequency

    FCC 15.247, 15.407, IC RSS-210: 5470 - 5600 MHz, 5650 - 5850 MHz
    ETSI EN 301 893, EN 302 502: 5470 - 5875 MHz
    Other Regions: 5470 - 5950 MHz

  • Interface Data Port

    10/100/1000 Ethernet Port

  • Interface Configuration Port

    10/100 Ethernet Port

  • Interface Auxiliary Port

    RJ-12, Alignment Tone Port

  • Maximum Throughput

    1.2+ Gbps

  • Maximum Range

    100+ km (Dependent on Regulatory Region)

  • Packets per Second

    1+ Million

  • Encryption

    128-Bit AES

  • Uplink/Downlink Ratio

    50% Fixed

  • Radio Frame Synchronization

    GPS

  • Dynamic Frequency Selection

    CE, FCC/IC

  • Receive Sensitivity

    Rate: 10x; Modulation: 1024QAM; Sensitivity(10MHz): -63dBm; Sensitivity(20MHz): -60dBm; Sensitivity(30MHz): -59dBm; Sensitivity(40MHz): -58dBm; Sensitivity(50MHz): -57dBm; FDD Capacity: 1280Mbps; TDD Capacity: 640Mbps

    Rate: 8x; Modulation: 256QAM; Sensitivity(10MHz): -70dBm; Sensitivity(20MHz): -67dBm; Sensitivity(30MHz): -66dBm; Sensitivity(40MHz): -65dBm; Sensitivity(50MHz): -64dBm; FDD Capacity: 1024Mbps; TDD Capacity: 512Mbps

  • Receive Sensitivity (1 cont..)

    Rate: 6x; Modulation: 64QAM; Sensitivity(10MHz): -77dBm; Sensitivity(20MHz): -74dBm; Sensitivity(30MHz): -73dBm; Sensitivity(40MHz): -72dBm; Sensitivity(50MHz): -71dBm; FDD Capacity: 768Mbps; TDD Capacity: 384Mbps

    Rate: 4x; Modulation: 16QAM MIMO; Sensitivity(10MHz): -84dBm; Sensitivity(20MHz): -81dBm; Sensitivity(30MHz): -80dBm; Sensitivity(40MHz): -79dBm; Sensitivity(50MHz): -78dBm; FDD Capacity: 512Mbps; TDD Capacity: 256Mbps

  • Receive Sensitivity (2 cont..)

    Rate: 2x; Modulation: QPSK MIMO; Sensitivity(10MHz): -90dBm; Sensitivity(20MHz): -87dBm; Sensitivity(30MHz): -86dBm; Sensitivity(40MHz): -85dBm; Sensitivity(50MHz): -84dBm; FDD Capacity: 256Mbps; TDD Capacity: 128Mbps

    Rate: 1x; Modulation: 1/2 Rate QPSK x RT; Sensitivity(10MHz): -93dBm; Sensitivity(20MHz): -90dBm; Sensitivity(30MHz): -89dBm; Sensitivity(40MHz): -88dBm; Sensitivity(50MHz): -87dBm; FDD Capacity: 128Mbps; TDD Capacity: 64Mbps

  • Receive Sensitivity (3 cont..)

    Rate: 1/4x; Modulation: 1/4x QPSK x RT; Sensitivity(10MHz): -95dBm; Sensitivity(20MHz): -93dBm; Sensitivity(30MHz): -93dBm; Sensitivity(40MHz): -92dBm; Sensitivity(50MHz): -91dBm; FDD Capacity: 32Mbps; TDD Capacity: 16Mbps

  • GPS

    GPS Clock Synchronization

  • EIRP

    Approx.50 dBm (Dependent on Regulatory Region and Frequency Band)

  • Frequency Accuracy

    +/- 2.5 ppm without GPS Synchronization
    +/- 0.2 ppm with GPS Synchronization

  • Channel Bandwidth

    10/20/30/40/50 MHz

  • Operating Channels

    24.1 GHz, 24.2 GHz

  • Modulation

    1024QAM MIMO
    256QAM MIMO
    64QAM MIMO
    16QAM MIMO
    QPSK MIMO
    1/2 Rate QPSK xRT
    1/4 Rate QPSK xRT

  • Gain

    TX: 23 dBi
    RX: 23 dBi

  • Beamwidth

    6 deg.

  • Front-to-Back Ratio

    70 dB

  • Polarity

    Dual-Slant Polarization

  • Cross-Polarity Isolation

    > 28 dB

  • Certifications

    CE, FCC, IC

  • Dimensions

    938.4 x 468.4 x 281.4mm / 36.94 x 18.44 x 11.08"

  • Weight

    16kg / 35.27lbs (Mount Included)

  • UPC Code

    192223069787

About Ubiquiti Networks AF-5U

A cutting-edge solution for high-speed, long-range connectivity, the airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio by Ubiquiti Networks is a testament to the brand's commitment to revolutionizing the wireless broadband market. This advanced, modular airFiber radio system is designed to serve a broad spectrum of frequencies and is compatible with a range of Ubiquiti antennas.

The airFiber-5U is built upon the proven design of the airFiber system, allowing you to customize airFiber backhaul links or upgrade existing Rocket Point-to-Point (PtP) links. Its high-isolation, dual-antenna design ensures robust performance even in the harshest RF noise environments.

This innovative product delivers a real throughput of up to 1.2+ Gbps, surpassing conventional wired backhauls. It's designed to perform as a high-performance backhaul at a range of up to 100+ km, making it ideal for large-scale network deployments.

The airFiber-5U supports FDD (Frequency Division Duplexing) in full-duplex mode for the 5GHz Unlicensed Band, allowing users to deploy it almost anywhere (subject to local country regulations). This revolutionary wireless technology is housed in a compact, highly efficient form factor, delivering amazing wireless gigabit+ performance, low latency, and long range.

Every detail of the airFiber-5U has been carefully designed and engineered by the Ubiquiti R&D Team to deliver superior throughput with efficiency. It features Ubiquiti's innovative proprietary modem technology, purpose-built to address the specific challenges of outdoor, PtP bridging and high-performance network backhauls.

The airFiber-5U operates in worldwide, license-free, 24 or 5 GHz frequencies, offering users the freedom to locate, deploy, and operate it practically anywhere (subject to local country regulations). It delivers gigabit performance at 1.2+ Gbps, rivaling common broadband providers with speed and throughput that surpass conventional wired backhauls.

The airFiber-5U features a dual-independent, 2x2 MIMO, high-gain reflector antenna system, which helps extend link budgets by eliminating the extra RF losses caused by the switches or duplexers required in systems with common TX/RX antennas. It also supports a variety of features to help manage your network, including network management options, SNMP support, and local and remote airFiber status information.

With its superior processing, efficient use of the 5 GHz band, long-range links, and quick and easy installation, the airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio is a reliable, high-tech solution for your networking needs.

Ubiquiti Networks AF-5U Features

  • High-performance, carrier-class point-to-point gigabit radio for reliable, high-speed connectivity
  • Operates in worldwide, license-free, 24 or 5 GHz frequencies for flexible deployment
  • Features Ubiquiti's proprietary modem technology for optimized range, speed, and latency
  • Dual-independent, 2x2 MIMO, high-gain reflector antenna system for extended link budgets
  • Delivers real throughput of up to 1.2+ Gbps, surpassing conventional wired backhauls
  • Designed for quick and easy installation with a unique sliding clamp design and radio alignment display

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • High-performance, carrier-class point-to-point gigabit radio for reliable, high-speed connectivity
  • Operates in worldwide, license-free, 24 or 5 GHz frequencies for flexible deployment
  • Features Ubiquiti's proprietary modem technology for optimized range, speed, and latency
  • Dual-independent, 2x2 MIMO, high-gain reflector antenna system for extended link budgets
  • Delivers real throughput of up to 1.2+ Gbps, surpassing conventional wired backhauls

What's in the box:

  • Ubiquiti Networks airFiber-5U 5GHz Carrier Class Point-to-Point Gigabit Radio
  • 50V 1.2A PoE GigE Adapter
  • Ubiquiti Networks 1 Year Warranty
