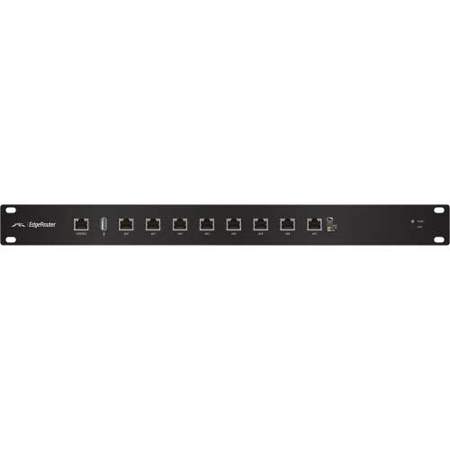

Ubiquiti Networks 8-Port EdgeRouter with EdgeMAX Technology

Advanced Routing Technology for the Masses
Introducing the EdgeRouter from Ubiquiti Networks, part of the EdgeMAXplatform. EdgeRouters combine carrier-class reliability with enterprise-level features in a compact and affordable unit. The EdgeRouter PoE and EdgeRouter Lite models are the world's first economical router capable of routing up to 1 million packets per second.

• Sophisticated Routing Features
• Advanced Security, Monitoring and Management
• High-Performance Gigabit Ports
• (8) Gigabit routing ports
• 2 million packets per second for 64-byte packets
• 8 Gbps for packets 512 bytes or larger in size
• Rackmountable

Available in a rackmountable form factor with eight functional ports, the EdgeRouter Pro and 8-Port EdgeRouter models are even faster, capable of routing up to 2 million+ packets per second. Powered by a proprietary and intuitive graphical interface, EdgeOS, EdgeRouters can easily be configured for routing, security and management features required to efficiently run your network. For advanced network professionals, an integrated CLI is available for quick and direct access using familiar commands.

Manage Your Network

DHCP Server
Set up multiple DHCP servers to assign IP ranges in different subnets on the different interfaces. Easily control dynamic and static IP addressing for your network devices.

Monitoring Tools
Conveniently track network activity and devices from tools such as Ping, Trace, Discover, Packet Capture and Log Monitor.

User Accounts
Manage access to the EdgeRouter using unique administrator and operator accounts.

Secure Your Network

Firewall Policies
Organize the rules you apply in the order you specify.

Firewall Groups
Apply the policies to groups filtered by IP address, network address or port number.

NAT Rules
The EdgeRouter changes packet addressing based on your customized source and destination NAT rules.

Direct Traffic Flow

Interfaces
Each Gigabit port functions as an independent interface. You can also configure Virtual Local Area Network (VLAN) interfaces for network segmentation.

Routing
Configure static routes and dynamic routing protocols to effectively manage the routes used by the EdgeRouter.

With these capabilities and more, the EdgeRouter provides the centralized control you need to optimize the performance and reliability of your network. DMZ LAN Firewall Policies Example of Enterprise Deployment with SFP Connection to the Internet Datasheet 3

Intuitive User Interface
The EdgeRouter provides a graphical user interface designed for convenient setup and control. Accessed via a network port and web browser, the user-friendly interface provides intuitive management with a virtual view of the ports, displaying physical connectivity, speed and status. The Dashboard displays detailed statistics: IP information, MTU, transmit and receive speeds and status for each physical and virtual interface.

Powerful Features
EdgeOS is a sophisticated operating system loaded with robust features, including:
• Static routes and support of routing protocols: OSPF, RIP and BGP
• Firewall policies and NAT rules
• DHCP services
• Quality of Service (QoS)
• Network administration and monitoring tools
• Comprehensive IPv6 support
• Choice of configuration methods: the graphical user interface to visualize the workings of your network or the Command Line Interface (CLI) to use advanced, command-driven configuration

Configuration by CLI
The CLI provides quick and flexible configuration by command line and features the following:

• For power users, configuration and monitoring of all advanced features
• Direct access to standard Linux tools and shell commands
• CLI access through the serial console port, SSH, Telnet and the graphical user interface
