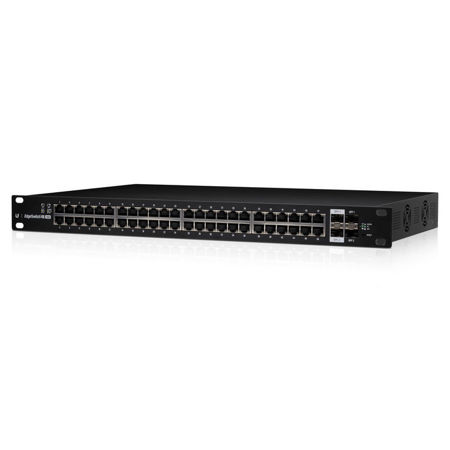

Ubiquiti Networks EdgeSwitch 48 Port 750W Gigabit Switch with SFP and SFP+
See all Ubiquiti Networks items

Ubiquiti Networks EdgeSwitch 48 Port 750W Managed PoE+ Gigabit Switch with SFP and SFP+, 70Gbps Non-Blocking Throughput

SKU: UBIES48750W
Be the first to review this item

This item is no longer available.

Recommended Alternatives

Ubiquiti Networks USW-24-POE: Picture 1 regular
Ubiquiti Networks UniFi 24-Port Gigabit PoE+ Compliant Managed Switch with SFP
$379.00
Ubiquiti Networks UniFi Lite: Picture 1 regular
Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch
$199.00
Ubiquiti Networks NanoSwitch: Picture 1 regular
Ubiquiti Networks NanoSwitch Outdoor 4-Port PoE Passthrough Switch
$40.00
Ubiquiti Networks Pro HD 24: Picture 1 regular
Ubiquiti Networks UniFi Pro HD 24 24-Port 600W PoE++ Managed Network Switch
$999.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks EdgeSwitch 48 Specifications

  • Total Non-Blocking Line Rate

    70Gbps

  • Switching Capacity

    140 Gbps

  • Forwarding Rate

    104.16 Mpps

  • Rack-Mount

    Yes, 1U High

  • LEDs Per Port

    RJ45 Data Ports: PoE, Speed/Link/Activity
    SFP Data Ports: Speed/Link/Activity

  • Networking Interfaces

    48x 10/100/1000 Mbps RJ45 Ethernet Ports
    2x 1/10 Gbps SFP+ Ethernet Ports
    2x 1Gbps SFP Ethernet Ports

  • Management Interface

    1x RJ45 Serial Port, Ethernet In/Out Band

  • PoE Interfaces

    POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    24VDC Passive PoE (Pins 4, 5+; 7, 8-)

  • Maximum PoE+ Wattage per Port by PSE

    34.2W

  • Voltage Range 802.3at Mode

    50-57V

  • Maximum Passive PoE Wattage per Port

    17W

  • 24V Passive PoE Voltage Range

    20-27V

  • Maximum Power Consumption

    750W

  • Power Method

    100-240V AC/50-60Hz, Universal Input

  • Power Supply

    AC/DC, Internal, 750W DC

  • ESD/EMP Protection

    Air: +/-24 kV, Contact: +/-24 kV

  • Operating Temperature

    23 to 104 deg. F (-5 to 40 deg. C)

  • Operating Humidity

    5 to 95% Noncondensing

  • Shock and Vibration

    ETSI300-019-1.4 Standard

  • Certifications

    CE, FCC, IC

  • Software: Core Switching Function

    ANSI/TIA-1057: LLDP-Media Endpoint Discovery (MED)
    IEEE 802.1AB: Link Layer Discovery Protocol (LLDP)
    IEEE 802.1D: Spanning Tree Compatibility
    IEEE 802.1S: Multiple Spanning Tree Compatibility
    IEEE 802.1W: Rapid Spanning Tree Compatibility
    IEEE 802.1Q: Virtual LANs with Port-Based VLANs
    IEEE 802.1p: Ethernet Priority with User Provisioning and Mapping
    IEEE 802.1X: Port-Based Authentication with Guest VLAN Support
    IEEE 802.3: 10BASE-T

  • S/W: Core Switching Function (Contd.)

    IEEE 802.3u: 100BASE-T
    IEEE 802.3ab: 1000BASE-T
    IEEE 802.1ak: Virtual Bridged Local Area Networks - Amendment 07: Multiple Registration Protocol
    IEEE 802.3ac: VLAN Tagging
    IEEE 802.3ad: Link Aggregation
    IEEE 802.3x: Flow Control
    IEEE 802.1D-2004: Generic Attribute Registration Protocol: Clause 12 (GARP)
    IEEE 802.1D-2004: Dynamic L2 multicast registration: Clause 10 (GMRP)
    IEEE 802.1Q-2003: Dynamic VLAN registration: Clause 11.2 (GVRP)

  • S/W: Core Switching Function (Contd..)

    RFC 4541: Considerations for Internet Group Management Protocol (IGMP) Snooping Switches
    RFC 5171: Unidirectional Link Detection (UDLD) Protocol

  • Software: Advanced Layer 2 Features

    Broadcast Storm Recovery
    Broadcast/Multicast/Unknown Unicast Storm Recovery
    DHCP Snooping
    IGMP Snooping Querier
    Independent VLAN Learning (IVL) Support
    Jumbo Ethernet Frame Support
    Port MAC Locking
    Port Mirroring
    Protected Ports
    Static MAC Filtering
    TACACS+
    Voice VLANs
    Unauthenticated VLAN
    Internal 802.1X Authentication Server

  • Software: Platform Specifications

    DHCP Server: Maximum Number of Pools: 8; Maximum Number of Leases (Total): 128
    Routing: Number of Routes: 16; Number of Routing Interfaces: 15
    VLANs: 255
    MAC Addresses: 8k
    MSTP Instances: 4
    LAGs: 6
    ACLs: 100 with 10 Rules per Port
    Traffic Classes (Queues): 8

  • Software: System Facilities

    Event and Error Logging Facility
    Run-Time and Configuration Download Capability
    PING Utility
    FTP/TFTP Transfers via IPv4/IPv6
    Malicious Code Detection
    BootP and DHCP
    RFC 2021: Remote Network Monitoring Management Information Base Version 2
    RFC 2030: Simple Network Time Protocol (SNTP)
    RFC 2819: Remote Network Monitoring Management Information Base

  • Software: System Facilities (Cont.)

    RFC 2865: RADIUS Client
    RFC 2866: RADIUS Accounting
    RFC 2868: RADIUS Attributes for Tunnel Protocol Support
    RFC 2869: RADIUS Extensions
    RFC 3579: RADIUS Support for EAP
    RFC 3580: IEEE 802.1X RADIUS Usage Guidelines
    RFC 3164: BSD Syslog Protocol

  • Software: Management

    Web UI
    Industry-Standard CLI
    IPv6 Management
    Password Management
    Autoinstall Support for Firmware Images and Configuration Files
    SNMP v1, v2 and v3
    SSH 1.5 and 2.0
    SSL 3.0 and TLS 1.0
    Secure Copy (SCP)
    Telnet (Multi-Session Support)

  • Software: Layer 3 Routing

    Static Routing
    Policy Based Routing

  • Software: QoS

    Access Control Lists (ACLs), Permit/Deny Actions for Inbound IP and Layer 2 Traffic Classification Based on:
    Time-Based ACL
    Source/Destination IP Address
    TCP/UDP Source/Destination Port
    IP Protocol Type
    Type of Service (ToS) or Differentiated Services (DSCP) Field
    Source/Destination MAC Address
    EtherType
    IEEE 802.1p User Priority
    VLAN ID
    RFC 1858: Security Considerations for IP Fragment Filtering

  • Software: QoS (Contd.)

    Differentiated Services (DiffServ):
    Classify Traffic Based on Same Criteria as ACLs
    Mark the IP DSCP or Precedence Header Fields, Optional
    Police the Flow to a Specific Rate with Two-Color Aware Support
    RFC 2474: Definition of the Differentiated Services Field (DS field) in the IPv4 and IPv6 Headers
    RFC 2475: An Architecture for Differentiated Services
    RFC 2597: Assured Forwarding Per-Hop Behavior (PHB) Group
    RFC 3246: An Expedited Forwarding PHB

  • Software: QoS (Contd..)

    Differentiated Services (DiffServ):
    RFC 3260: New Terminology and Clarifications for DiffServ

    Class of Service (CoS) Queue Mapping Configuration:
    AutoVoIP: Automatic CoS Settings for VoIP
    IP DSCP-to-Queue Mapping
    Configurable Interface Trust Mode (IEEE 802.1p, DSCP or Untrusted)
    Interface Egress Shaping Rate
    Strict Priority versus Weighted Scheduling per Queue

  • Software: QoS (Contd...)

    Optional ACL Rule Attributes:
    Assign Flow to a Specific Class of Service (CoS) Queue
    Redirect Matching Traffic Flows

  • Dimensions

    19.09 x 1.72 x 14.75" (484.89 x 43.69 x 374.65mm)

  • Weight

    14.3 lbs (6.5kg)

About Ubiquiti Networks EdgeSwitch 48

Advanced Switching Technology for the Masses
Build and expand your network with Ubiquiti Networks EdgeSwitch, part of the EdgeMAX line of products. The EdgeSwitch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks. The EdgeSwitch offers an extensive suite of advanced Layer-2 switching features and protocols and also provides Layer-3 routing capability.

• Non-Blocking Throughput Switching Performance
• Gigabit Ethernet RJ45 and SFP+/SFP Ports
• Auto-Sensing IEEE 802.3af/at PoE
• (48) Gigabit RJ45 Ports
• (2) SFP+ Ports
• (2) SFP Ports
• (1) Serial Console Port
• Non-Blocking Throughput: 70 Gbps
• Switching Capacity: 140 Gbps
• Forwarding Rate: 104.16 Mpps
• Maximum Power Consumption: 750W
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Rackmountable

Switching Performance
The EdgeSwitch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss. For its total, non-blocking throughput, the 48-port models support up to 70 Gbps.

PoE+ Flexibility
The EdgeSwitch models are available with 16, 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V Passive PoE to simplify your infrastructure. By default, the EdgeSwitch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V Passive PoE devices, manually enable 24V passive PoE using the EdgeSwitch Configuration Interface.

Fiber Connectivity
The EdgeSwitch provides fiber connectivity options for your growing networks. For high-capacity uplinks, the 48-port models include two SFP and two SFP+ ports, providing up to 10 Gbps uplinks.

Comprehensive User Interface
Designed for convenient management, the EdgeSwitch Configuration Interface allows administrators to configure and monitor switch features in a graphical user interface. For advanced users, an industry-standard command -line interface (CLI) is available through the serial console port, telnet and SSH.

Powerful Functionality
The EdgeSwitch uses a sophisticated operating system that provides basic switching features, PoE configuration per port and a variety of advanced features including:

• MSTP/RSTP/STP
• VLAN, Private VLAN, Voice VLAN
• Link Aggregation
• DHCP Snooping, IGMP Snooping
• TACACS+, RADIUS, 802.1X, MAC Filtering, ACL
• DiffServ, CoS
• Static Routing, Policy-Based Routing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks ES-48-750W 48 Port 750W PoE Gigabit Ethernet Switch
  • Power Cord
  • 4x Mounting Screws (#10-32 x 5/8 ")
  • 4x Cage Nuts (#10-32 x 5/8 ")
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
