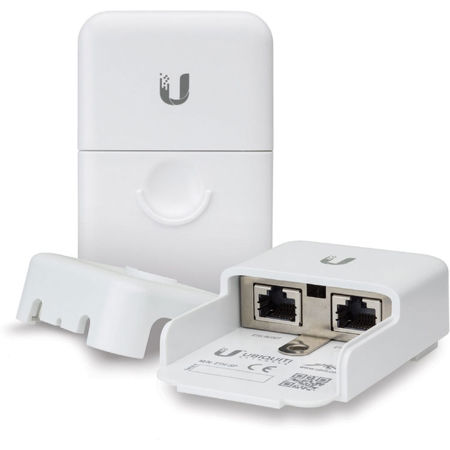

Ubiquiti Networks ETH-SP Ethernet Surge Protector for 10/100/1000 Mbps Networks, 2x RJ45 Female Connectors

SKU: UBIETHSP MFR: ETH-SP-G2
$12.50
Earn VIP Reward Points

Key Features

  • Shield your valuable network devices with this Ethernet surge protector!
  • Protect against power surges with transient voltage suppression, ensuring network safety.
  • Enjoy wide compatibility; this surge protector works seamlessly with 10/100/1000 Mbps networks.
  • Withstands harsh conditions, thanks to its robust design and weather resistance.
  • Easy installation ensures your network is quickly defended against electrical threats.
  • Maintain optimal signal strength while safeguarding your devices from ESD/EMP.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Shopper : Why Did You Choose This?RALPH E. G : best outdoor mount setupGREG L : Protection of IT equipmentBARRY K : to protect my networkKERRY B : Works with my Ubiquiti system

Reviews about this item

Review Summary

Ubiquiti Networks ETH-SP Specifications

  • Interface Connections

    2x RJ45 Female Connectors

  • ESD/EMP Protection

    Absorbing Transient Current with Response to Surge Voltage from 100V/s to 1kV/us

  • DC Spark-Over Voltage

    90V at 100V/s

  • Maximum Impulse Spark-over Voltage

    700V at 1kV/us

  • Discharge Current

    5kA (Maximum)
    0.5kA (Normal)

  • Maximum Insulation Resistance

    1GOhms at 50V

  • Maximum Capacitance

    1.0 pF at 1 MHz

  • Data Line Protection

    RJ45 10/100/1000 Ethernet

  • IEEE 802.3af PoE Support

    Yes

  • Shock and Vibration Certification

    ETSI300-019-1.4 Standard

  • Operating Temperature

    -30 to 65 deg. C / -22 to 149 deg. F

  • Operating Humidity

    10 to 90% Noncondensing

  • Dimensions

    3.58 x 2.40 x 1.28" / 90.93 x 60.96 x 32.51mm

  • Weight

    2.82oz / 79.95g

  • UPC Code

    817882023900

Designed For Use With:

  • IP Camera

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About Ubiquiti Networks ETH-SP

Take your network protection to the next level with the ETH-SP Ethernet Surge Protector from Ubiquiti Networks, specifically designed for 10/100/1000 Mbps networks. This high-performance surge protector offers robust ESD protection for outdoor high-speed networks, safeguarding your Ethernet devices from damaging electrostatic discharge and surges.

The ETH-SP Ethernet Surge Protector is a cost-effective solution, engineered to shield both Power-over-Ethernet (PoE) and non-PoE devices. With connection speeds of up to 1 Gbps, it ensures your network's performance is never compromised. The device features two passive, surge-protected RJ45 female connectors, offering maximum compatibility with your equipment.

Ubiquiti Networks' ETH-SP Ethernet Surge Protector is an essential addition to any outdoor network installation, particularly for WISP Networks. While all Ubiquiti airMAX devices come with built-in ESD protection, the ETH-SP provides an extra layer of defense against electrostatic discharge, helping your network meet local code requirements and preventing costly service calls.

Installation of the ETH-SP Ethernet Surge Protector is a breeze. Simply connect the ground and Ethernet cables between your network devices for an added layer of protection. When faced with damaging ESD attacks and surges, the ETH-SP absorbs the impact and safely discharges it into the ground, ensuring your network devices remain unharmed.

In summary, the ETH-SP Ethernet Surge Protector from Ubiquiti Networks is a reliable, cost-effective solution for enhancing the protection of your outdoor, high-speed network. It's not just a surge protector; it's a shield for your network's longevity and performance.

Ubiquiti Networks ETH-SP Features

  • High-performance Ethernet Surge Protector for 10/100/1000 Mbps networks
  • Robust ESD protection for outdoor high-speed networks
  • Compatible with both Power-over-Ethernet (PoE) and non-PoE devices
  • Features two passive, surge-protected RJ45 female connectors
  • Easy plug-and-play installation for added network protection
  • Safely absorbs and discharges damaging ESD attacks and surges into the ground

Key Features

  • Shield your valuable network devices with this Ethernet surge protector!
  • Protect against power surges with transient voltage suppression, ensuring network safety.
  • Enjoy wide compatibility; this surge protector works seamlessly with 10/100/1000 Mbps networks.
  • Withstands harsh conditions, thanks to its robust design and weather resistance.
  • Easy installation ensures your network is quickly defended against electrical threats.
  • Maintain optimal signal strength while safeguarding your devices from ESD/EMP.

What's in the box:

  • Ubiquiti Networks ETH-SP Ethernet Surge Protector
  • M5 Self-Tapping Screw
  • M5 Serrated Washer
  • Ubiquiti Networks 1 Year Limited Warranty
