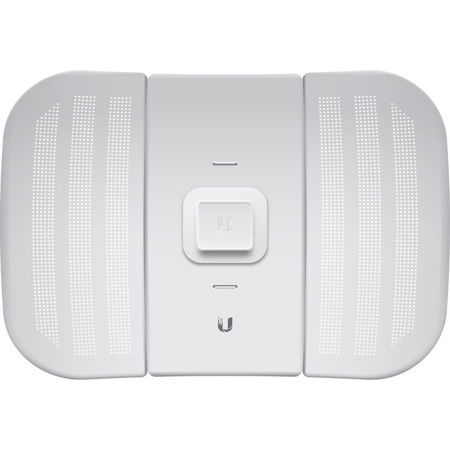

Ubiquiti Networks LiteBeam 5GHz Lightweight airMAX CPE Device, 23dBi
See all Ubiquiti Networks items

Ubiquiti Networks LiteBeam 5GHz Long-Range Lightweight airMAX CPE Device, 23dBi, Fast Ethernet

SKU: UBILBEM523US

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Does it really come with a 1000mpbs LAN port? Since some information says it only has10/100mbpsANDREW R : LAN port on this model is 10/100
Shopper : Why Did You Choose This?WILLIAM B : Easy way to link 2 sites over a few milesSTEPHEN H : Great little dish for sharing wi-fi network across a small compound of office buildings.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks LBE-M5-23 Specifications

  • Frequency Band

    5 GHz

  • Antenna Gain

    23 dBi

  • Antenna Type

    1x1 SISO

  • Polarization

    Vertical

  • Point-to-MultiPoint Functionality

    Yes

  • Processor

    MIPS 74K

  • Memory

    64MB

  • Networking Interface

    1x 10/100/1000 Ethernet Port

  • Output Power

    25dBm

  • Operating Frequency

    5150-5875MHz

  • Maximum VSWR

    1.5:1

  • Maximum Power Consumption

    4W

  • Power Supply

    24V, 0.2A PoE Adapter

  • Power Method

    Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Operating Temperature

    -40 to 70 deg. C / -40 to 158 deg. F

  • Operating Humidity

    5 to 95% Noncondensing

  • Shock and Vibration

    ETSI300-019-1.4

  • ETSI Specification

    EN 302 326 DN2

  • ESD/EMP Protection

    +/- 24 KV Contact / Air

  • Wireless Approvals

    FCC, IC, CE

  • RoHS Compliance

    Yes

  • TX Power

    Data Rate / Avg. TX / Tolerance
    MCS0 25 dBm +/- 2 dB
    MCS1 25 dBm +/- 2 dB
    MCS2 25 dBm +/- 2 dB
    MCS3 24 dBm +/- 2 dB
    MCS4 23 dBm +/- 2 dB
    MCS5 22 dBm +/- 2 dB
    MCS6 21 dBm +/- 2 dB
    MCS7 19 dBm +/- 2 dB

  • RX Power

    Modulation Data / Rate Sensitivity / Tolerance
    MCS0 -97 dBm +/- 2 dB
    MCS1 -96 dBm +/- 2 dB
    MCS2 -93 dBm +/- 2 dB
    MCS3 -91 dBm +/- 2 dB
    MCS4 -87 dBm +/- 2 dB
    MCS5 -84 dBm +/- 2 dB
    MCS6 -78 dBm +/- 2 dB
    MCS7 -75 dBm +/- 2 dB

  • Dimensions

    14.25 x 10.51 x 7.24" / 361.95 x 266.95 x 183.90mm

  • Weight

    24.11oz / 0.68kg

  • UPC Code

    810354021831

About Ubiquiti Networks LBE-M5-23

The LiteBeam is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range with high-performance speeds. The LiteBeam combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value.

• Lightweight, Low-Cost Solution
• Full Adjustment Flexibility
• Quick Assembly and Installation

The InnerFeed technology integrates the entire radio system into the antenna feed and their revolutionary airMAX TDMA protocol enhances network performance and scalability

Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This "time slot" method eliminates hidden node collisions and maximizes airtime efficiency. Compared to other systems in its class, the LiteBeam products deliver superior performance in reduced latency, throughput and scalability.

Intelligent QoS
Priority is given to voice/video for seamless access.

Scalability
High capacity and scalability.

Long Distance
Capable of high-speed, 30+ km links.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks LiteBeam 5GHz Long-Range Lightweight airMAX CPE Device
  • Antenna Feed
  • Center Reflector Panel
  • 2x Side Reflector Panels
  • Feed Receiver
  • Ball Joint Mount
  • Metal Strap
  • PoE Adapter
  • 25V 0.2A Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
