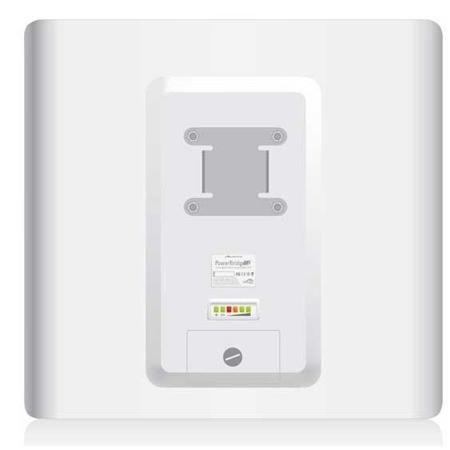

Ubiquiti Networks PowerBridge M365 Carrier Class 3.65GHz MIMO Bridge
See all Ubiquiti Networks items

Ubiquiti Networks PowerBridge M365 Carrier Class 3.65GHz MIMO Bridge

SKU: UBIPBM365

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ubiquiti Networks PowerBridge M365 Specifications

  • Frequency

    3.65 GHz

  • Throughput

    150+ Mbps

  • Range

    20+ km

  • Processor

    Atheros MIPS 24KC, 400MHz

  • Memory

    64MB SDRAM, 8MB Flash

  • Networking Interface

    1x 10/100 BASE-TX (Cat. 5, RJ-45) Ethernet Interface

  • Operating Frequency

    3650-3675MHz

  • Transmitter Power

    Data Rate / Avg. TX / Tolerance:
    1-24Mbps 27dBm +/-2dB
    36Mbps 25 dBm +/-2dB
    48Mbps 23 dBm +/-2dB
    54Mbps 22 dBm +/-2dB
    MCS0 27 dBm +/-2dB
    MCS1 27 dBm +/-2dB
    MCS2 27 dBm +/-2dB
    MCS3 27 dBm +/-2dB
    MCS4 26 dBm +/-2dB
    MCS5 24 dBm +/-2dB
    MCS6 22 dBm +/-2dB
    MCS7 21 dBm +/-2dB
    MCS8 27 dBm +/-2dB
    MCS9 27 dBm +/-2dB
    MCS10 27 dBm +/-2dB
    MCS11 27 dBm +/-2dB
    MCS12 26 dBm +/-2dB
    MCS13 24 dBm +/-2dB
    MCS14 22 dBm +/-2dB
    MCS15 21 dBm +/-2dB

  • Receiver Power

    Data Rate Sensitivity Tolerance
    24Mbps -83 dBm +/-2dB
    36Mbps -80 dBm +/-2dB
    48Mbps -77 dBm +/-2dB
    54Mbps -75 dBm +/-2dB
    MCS0 -96 dBm +/-2dB
    MCS1 -95 dBm +/-2dB
    MCS2 -92 dBm +/-2dB
    MCS3 -90 dBm +/-2dB
    MCS4 -86 dBm +/-2dB
    MCS5 -83 dBm +/-2dB
    MCS6 -77 dBm +/-2dB
    MCS7 -74 dBm +/-2dB
    MCS8 -95 dBm +/-2dB
    MCS9 -93 dBm +/-2dB
    MCS10 -90 dBm +/-2dB

  • Receiver Power (cont.)

    MCS11 -87 dBm +/-2dB
    MCS12 -84 dBm +/-2dB
    MCS13 -79 dBm +/-2dB
    MCS14 -78 dBm +/-2dB
    MCS15 -75 dBm +/-2dB

  • Gain

    20dBi

  • Polarization

    Dual Linear

  • Cross-pol Isolation

    28dB minimum

  • Maximum VSWR

    1.5:1

  • H-pol Beam width

    13.5 deg.

  • V-pol Beam width

    13.5 deg.

  • Elevation Beam width

    13.5 deg.

  • Enclosure Characteristics

    Outdoor UV Stabilized Plastic

  • Maximum Power Consumption

    8W

  • Power Supply

    24V, 1A surge protection integrated POE adapter

  • Power Method

    Passive Power over Ethernet (pairs 4,5+; 7,8 return)

  • Operating Temperature

    -30 to 80 deg. C / -22 to 176 deg. F

  • Operating Humidity

    5 to 95% Condensing

  • Shock and Vibration

    ETSI300-019-1.4

  • Wireless Approvals

    FCC Part 90Y

  • RoHS Compliance

    Yes

  • Dimensions

    445 x 416 x 34mm / 17.52 x 16.38 x 1.34"

  • Weight

    3.82kg / 8.42lbs

  • UPC Code

    192223069800

About Ubiquiti Networks PowerBridge M365

Ubiquiti Networks PBM365 features a panel antenna design and dual-polarity performance, the PowerBridge M is ideal for Point-to-Point (PtP) bridging applications that require a compact form factor. The PowerBridge is a slim-profile, high-performance panel antenna that provides a wind-loading advantage and improved aesthetics over dish deployment.

Plug and Play Installation
The PowerBridgeM features an all-in-one design for easy installation.

Advanced Software Technology
Ubiquiti's airMAX technology is proven in millions of deployments worldwide, exhibiting outstanding performance in outdoor environments. The TDMA airMAX protocol enables unprecedented scalability, high throughput and low latency in unlicensed, multipoint networks.

Powerful airOS
Ubiquiti's versatile airOS firmware technology enables high-performance, outdoor multi-point networking. airOS provides features such as custom wireless settings, bridge or routing configuration and system management services.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks PowerBridge M365 Carrier Class 3.65GHz MIMO Bridge
  • PoE Adapter (24V
  • 1A)
  • Power Cord
  • 2x Pole Bracket
  • 2x Pole Clamp
  • 4x Carriage Bolts (M8X135)
  • 4x Flange Bolts (M8X20)
  • 4x Flange Nuts (M8)
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
