90-260VAC at 47-63 Hz
24VDC at 0.5A
0.3A at 120VAC
0.2A at 240VAC
<30A Peak at 120VAC
<60A Peak at 230VAC
75+%
1% Max
50 kHz
+/- 1%
+/- 3%
Pins 4, 5 (+) and Pins 7, 8 (-)
0 to 40 deg. C / 32 to 104 deg. F
-30 to 70 deg. C / -22 to 158 deg. F
35 to 95% Noncondensing
IEC-320 C6
RJ45 Shielded Socket
Difference and Common Mode
11V Data, 60V Power
1500A (8/20 mus) Power
36A (10/1000 mus) Data
<5 pF data
<1 ns
IEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
USA, EU, AR, BR, UL, CCC, Mexico
87 x 44 x 29mm / 3.43 x 1.73 x 1.14"
99.4g / 3.51oz
810354021190

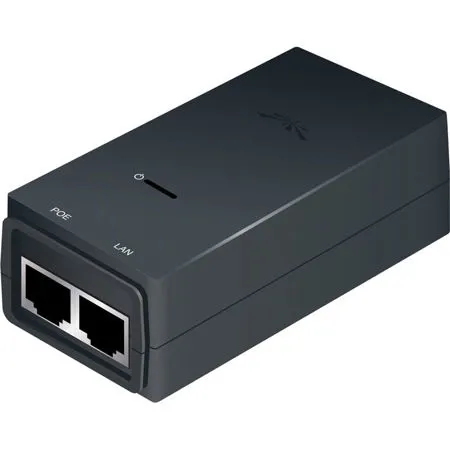

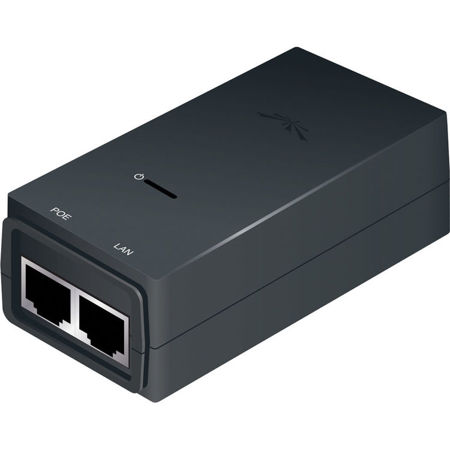

How can you ensure that your Ubiquiti network devices receive both power and data efficiently The answer lies in the Ubiquiti Networks 24V 12W PoE Adapter with Gigabit LAN Port, a robust solution designed to power a wide array of Ubiquiti products. This adapter is not only a conduit for Power over Ethernet (PoE) but also facilitates high-speed gigabit connectivity, making it an essential component for network performance and reliability.
The compatibility of this PoE Adapter extends across numerous Ubiquiti PoE devices, ensuring a seamless integration with your existing network setup. It supports a diverse range of products, including airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Video/airVision. Moreover, this adapter is specifically tailored to work in conjunction with the airGateway series, which serves as a compact consumer premises equipment (CPE) gateway featuring built-in Wi-Fi. The airGateway comes in three distinct models: the standard airGateway with an internal antenna, the airGateway Pro with dual-band Wi-Fi and an internal antenna, and the airGateway-LR, which boasts a long-range Wi-Fi capability with an external antenna for enhanced coverage.
Protection is a paramount concern when it comes to network equipment, and the Ubiquiti PoE Adapter addresses this by offering a suite of protective features. It is equipped with surge protection to shield your devices from voltage spikes, clamping protection to maintain the integrity of electrical circuits, and maximum surge discharge to handle extreme surge events. Additionally, the adapter includes peak pulse current protection and an AC cable with earth ground to further fortify your network against electrical anomalies.
Electrostatic discharge (ESD) poses a significant threat to outdoor network devices, often being the primary cause of device failure. By utilizing a grounded Ubiquiti PoE Adapter in conjunction with TOUGHCable and TOUGHCable Connectors, you can effectively safeguard your network against the damages caused by ESD. This comprehensive protection strategy is crucial for maintaining a stable and secure network, particularly in environments susceptible to ESD events.
In summary, the Ubiquiti Networks 24V 12W PoE Adapter with Gigabit LAN Port is a versatile and protective solution that ensures the delivery of both power and high-speed data to your Ubiquiti devices. Its broad compatibility, coupled with advanced protective measures, makes it an indispensable asset for any Ubiquiti-powered network.
