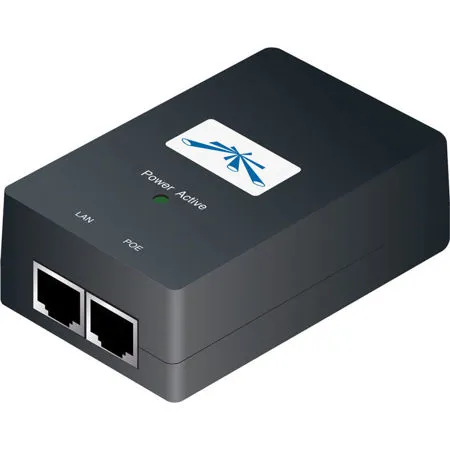

Ubiquiti Networks 48V 24W PoE Adapter with Gigabit LAN Port

SKU: UBIPOE4824WG MFR: POE-48-24W-G
$16.00
Earn VIP Reward Points

Key Features

  • Reliable 48V PoE Adapter: Ensures stable power for your Ubiquiti devices, enhancing performance.
  • Gigabit LAN Port: Experience lightning-fast network speeds with this PoE adapter's gigabit compatibility.
  • Surge Protection: Built-in surge protection defends your valuable devices from power fluctuations.
  • Remote Reset: Easily reset your devices remotely, saving time and effort with this handy adapter.
  • Wide Compatibility: Works seamlessly with Ubiquiti devices, ensuring easy integration into your network.
  • Compact Design: The sleek, compact design of this PoE adapter fits easily into any setup, keeping things tidy.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Richard L : I am confused, In specs the volts outpout is 24V 0.5A, but in the main tittle is 48V; please, could you confirm the right information? Thanks
Richard L : I am confused, In specs the volts outpout is 24V 0.5A, but in the main tittle is 48V; please, could you confirm the right information? Thanks
Richard L : I am confused, In specs the volts outpout is 24V 0.5A, but in the main tittle is 48V; please, could you confirm the right information? Thanks

Reviews about this item

Review Summary

Ubiquiti Networks POE-48-24W-G Specifications

  • LAN Activity Indicator

    No

  • Gigabit LAN Port

    Yes

  • Remote Reset Capability

    No

  • Reset Button

    Yes

  • Input Voltage

    90-260VAC at 47-63 Hz

  • Output Voltage

    24VDC at 0.5A

  • Input Current

    0.6A at 120VAC
    0.4A at 240VAC

  • Inrush Current

    <65A Peak at 120VAC
    <130A Peak at 230VAC

  • Efficiency

    80+%

  • Output Ripple

    1% Max

  • Switching Frequency

    65kHz

  • Line Regulation

    +/- 1%

  • Load Regulation

    +/- 3%

  • 2-Pair Powering

    Pins 4, 5 (+) and Pins 7, 8 (-)

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -30 to 70 deg. C / -22 to 158 deg. F

  • Operating Humidity

    35 to 95% Noncondensing

  • AC Connector

    IEC-320 C6

  • Data IN / POE

    RJ45 Shielded Socket

  • Surge Protection

    Difference and Common Mode

  • Clamping Protection

    11V Data, 60V Power

  • Max. Surge Discharge

    1500A (8/20 mus) Power

  • Peak Pulse Current

    36A (10/1000 mus) Data

  • Shunt Capacitance

    <5 pF data

  • Response Time

    <1 ns

  • Compliance

    IEC 60950-1:2005+A1
    UL60950-1
    EN55022:2010, EN55024:2010
    FCC Class B

  • AC Cable with Earth Ground

    USA, EU, AR, BR, UL, CCC, Mexico

  • Dimensions

    96 x 62 x 35mm / 3.78 x 2.44 x 1.38"

  • Weight

    166g / 5.86oz

  • UPC Code

    810354021220

About Ubiquiti Networks POE-48-24W-G

While Ubiquiti Networks is renowned for its high-quality Power over Ethernet (PoE) Adapters, the 48V 24W PoE Adapter with Gigabit LAN Port stands out for its exceptional compatibility and protective features. This PoE Adapter is designed to power a wide range of Ubiquiti products, including airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Video/airVision devices, making it a versatile addition to any tech-savvy setup.

One of the key features of this Ubiquiti PoE Adapter is its comprehensive protection system. It is equipped with surge protection, clamping protection, maximum surge discharge, and peak pulse current capabilities. These features work in tandem to safeguard your PoE devices from potential damage, ensuring their longevity and optimal performance.

The adapter also comes with an AC cable that has an earth ground, providing an extra layer of safety against electrical faults. Electrostatic discharge (ESD) is a common cause of outdoor device failures, but with this Ubiquiti PoE Adapter, you can effectively shield your devices from ESD damage. When used in conjunction with TOUGHCable and TOUGHCable Connectors, this adapter offers robust protection against ESD events in a network.

In summary, the 48V 24W PoE Adapter with Gigabit LAN Port from Ubiquiti Networks is not just a power source for your devices, but also a protective shield, ensuring your network remains stable and secure. Its compatibility with a variety of Ubiquiti devices and its comprehensive protective features make it an essential component in any modern network setup.

Ubiquiti Networks POE-48-24W-G Features

  • High-quality 48V 24W PoE Adapter with Gigabit LAN Port from Ubiquiti Networks
  • Compatible with a wide range of Ubiquiti devices including airFiber, airMAX, EdgeMAX, mFi, UniFi AP, and UniFi Video/airVision
  • Equipped with comprehensive protective features such as surge protection, clamping protection, maximum surge discharge, and peak pulse current
  • Includes an AC cable with earth ground for added safety against electrical faults
  • Provides effective protection against electrostatic discharge (ESD), a common cause of outdoor device failures
  • When used with TOUGHCable and TOUGHCable Connectors, offers robust protection against ESD events in a network

Key Features

  • Reliable 48V PoE Adapter: Ensures stable power for your Ubiquiti devices, enhancing performance.
  • Gigabit LAN Port: Experience lightning-fast network speeds with this PoE adapter's gigabit compatibility.
  • Surge Protection: Built-in surge protection defends your valuable devices from power fluctuations.
  • Remote Reset: Easily reset your devices remotely, saving time and effort with this handy adapter.
  • Wide Compatibility: Works seamlessly with Ubiquiti devices, ensuring easy integration into your network.
  • Compact Design: The sleek, compact design of this PoE adapter fits easily into any setup, keeping things tidy.

What's in the box:

  • Ubiquiti Networks 24V 12W PoE Adapter with Gigabit LAN Port
  • Power Cord
  • Ubiquiti Networks 1 Year Limited Warranty
