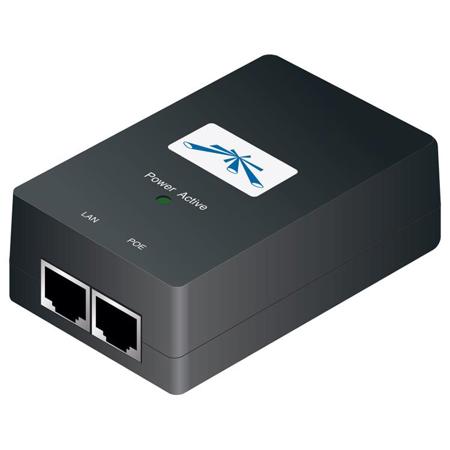

Ubiquiti Networks POE-54V-80W 54V PoE Adapter
See all Ubiquiti Networks items

Ubiquiti Networks POE-54V-80W 54V PoE Adapter

SKU: UBIPOE54V80W

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Ubiquiti Networks POE-54V-80W Specifications

  • Inrush Current

    <80A Peak at 120VAC, <120A Peak at 230VAC

  • Efficiency

    87+%

  • Output Ripple

    1% Max

  • Switching Frequency

    100 kHz Max

  • Line Regulation

    +/- 1%

  • Load Regulation

    +/- 3%

  • 4-Pair Powering

    Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

  • AC Connector

    IEC-320 C6

  • Data IN / POE

    RJ45 Shielded Socket

  • Surge Protection

    Difference and Common Mode

  • Clamping Protection

    11V Data, 60V Power

  • Maximum Surge Discharge

    1500A (8/20 mus) Power

  • Peak Pulse Current

    36A (10/1000 mus) Data

  • Shunt Capacitance

    <5 pF data

  • Response Time

    <1 ns

  • LAN Activity Indicator

    No

  • Remote Reset Capability

    No

  • Reset Button

    No

  • Gigabit LAN Port

    Yes

  • Input Voltage

    100-240AC at 50/60Hz

  • Input Current

    0.8A at 120VAC, 0.4A at 240VAC

  • Output Voltage

    54VDC at 1.5A

  • Operating Temperature

    0 to 40 deg. C / 32 to 104 deg. F

  • Storage Temperature

    -30 to 70 deg. C / -22 to 158 deg. F

  • Operating Humidity

    35 to 95% Noncondensing

  • Compliance

    IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN55024:2010 FCC Class B

  • Dimensions

    4.84 x 2.56 x 1.34" / 12.29 x 6.50 x 3.40cm

  • Weight

    10.55oz / 299.09g

  • UPC Code

    810354024580

About Ubiquiti Networks POE-54V-80W

Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:

• airFiber
• airMAX
• EdgeMAX
• mFi
• UniFi AP
• UniFi Video / airVision

Ubiquiti PoE Adapter Compatibility with the airGateway
Specific PoE Adapter models are designed to work with the airGateway. The airGateway is a compact CPE (consumer premises equipment) gateway with built-in Wi-Fi used to connect the subscriber's local network to the WISP network. The airGateway is available in three models:

• airGateway Standard model with an internal antenna
• airGateway Pro Dual-Band Wi-Fi model with an internal antenna
• airGateway-LR Long-range Wi-Fi model with an external antenna for extended range

Protection
Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

• Surge protection
• Clamping protection
• Maximum surge discharge
• Peak pulse current
• AC cable with earth ground.

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCable and TOUGHCable Connectors.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks POE-54V-80W 54V PoE Adapter
  • Ubiquiti Networks 1 Year Limited Warranty
