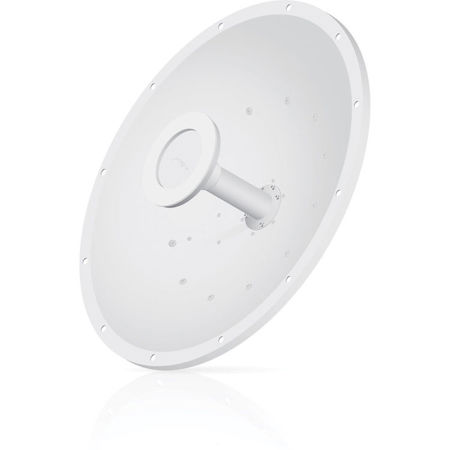

Ubiquiti Networks RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna, 26dBi Gain

SKU: UBIRD3G26

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the frequency band of the RD-3G26 RocketDish AirMax antenna?

The RD-3G26 RocketDish AirMax antenna operates in the 3 or 3.65 GHz frequency band.

Can the RocketDish antenna be used outdoors?

Yes, the RocketDish antenna is designed with robust, carrier-class construction and industrial-strength hardware for outdoor use.

Does the RocketDish antenna integrate with Rocket radios?

Yes, the RocketDish antennas have been designed to seamlessly work together with Rocket radios.

What is the gain of the RD-3G26 RocketDish AirMax antenna?

The RD-3G26 RocketDish AirMax antenna has a 26dBi gain.

Does the RocketDish antenna require any special tools for installation?

No, the RocketDish antenna comes with a built-in Rocket mount for easy installation without the need for special tools.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ubiquiti Networks RD-3G26 Specifications

  • Frequency Range

    3.3 - 3.8GHz

  • Gain

    26dBi

  • Hpol Beam width

    7 deg. (3dB)

  • Vpol Beam width

    7 deg. (3dB)

  • F/B Ratio

    33dB

  • Maximum VSWR

    1.4:1

  • Wind Survivability

    200km/h (125mph)

  • Wind Loading

    787N at 200km/h (177lbf at 125mph)

  • Polarization

    Dual linear

  • Cross-pol Isolation

    35dB minimum

  • Dimensions

    25.6 x 25.6 x 11.8" / 650.2 x 650.2 x 299.7mm

  • Weight

    21.61lbs / 9.8kg

  • UPC Code

    810354021275

About Ubiquiti Networks RD-3G26

Are you seeking a high-performance solution for your Point-to-Point (PtP) bridge or network backhaul needs Look no further than the RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna. This powerful antenna, when paired with a Rocket base station (sold separately), forms the endpoint of a robust, high-performance network link.

Operating in the 3 or 3.65 GHz frequency band, this RocketDish antenna offers a noise-free environment in most areas, although its use may require a license and be subject to local country regulations. This antenna is designed to deliver powerful performance for long-range links, making it an ideal choice for ISPs needing to extend their network to neighborhood towers.

The RD-3G26 RocketDish AirMax antenna boasts a 26dBi gain and 2x2, dual-polarity performance, ensuring optimal data transmission. Its dish reflector design enhances beam directivity, further improving its performance.

Designed for outdoor use, this antenna features robust construction with industrial-strength hardware. Its carrier-class construction ensures durability and longevity, even in harsh weather conditions.

Seamless integration with Rocket radios is a key feature of the RocketDish antennas. Each RocketDish comes with a built-in Rocket mount, allowing for easy installation without the need for special tools. Simply snap the Rocket into place and mount the antenna to achieve the optimal combination for your PtP application.

In summary, the RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna offers breakthrough design and performance. Its powerful features and industrial-strength construction make it a top choice for outdoor application use, providing reliable, high-performance network links.

Ubiquiti Networks RD-3G26 Features

  • High-performance RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna
  • Operates in the 3 or 3.65 GHz frequency band for noise-free performance
  • Features 26dBi gain and 2x2, dual-polarity for optimal data transmission
  • Robust, carrier-class construction with industrial-strength hardware for outdoor use
  • Seamless integration with Rocket radios for easy installation
  • Dish reflector design enhances beam directivity for long-range links

Key Features

  • High-performance RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna
  • Operates in the 3 or 3.65 GHz frequency band for noise-free performance
  • Features 26dBi gain and 2x2, dual-polarity for optimal data transmission
  • Robust, carrier-class construction with industrial-strength hardware for outdoor use
  • Seamless integration with Rocket radios for easy installation
  • Dish reflector design enhances beam directivity for long-range links

What's in the box:

  • Ubiquiti Networks RD-3G26 RocketDish AirMax 3.3 to 3.8GHz Carrier Class 2x2 PtP Bridge Dish Antenna
  • Antenna Feed
  • Main Mounting Bracket
  • Protective Shroud
  • 2x Pole Clamps
  • 2x Stabilizer Brackets
  • 2x RF Cables
  • Elevation Rod
  • 4x Carriage Bolts (M10x150)
  • 2x Bolts (M10x100)
  • 3x Carriage Bolts (M10x25)
  • 4x M4 Bolts
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
