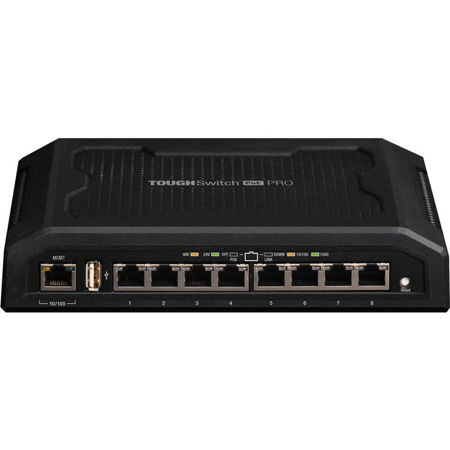

Ubiquiti Networks TS-8-PRO TOUGHSwitch Pro 8-Port Advanced PoE Controller

Advanced Gigabit PoE Managed Switch
Introducing the Advanced Power over Ethernet Controllers, TOUGHSwitch PoE from Ubiquiti Networks. TOUGHSwitch PoE delivers reliable passive PoE and fast 10/100/1000 Mbps connectivity to attached Ubiquiti devices and other devices that support passive PoE. To connect your PoE devices, simply enable PoE in the easy-to-use TOUGHSwitch Configuration Interface. Each port can be individually configured to provide PoE, so both PoE and non -PoE devices can be connected.

TOUGHSwitch PoE PRO is an industrial-strength, 8-port Gigabit switch with 150 watts of power capable of powering 24V or 48V devices. Output voltage is controlled by the software

• 8 Gigabit PoE Ports
• 24V/48V Configurable Passive PoE
• 150 W Power
• TOUGHSwitch PoE Configuration Interface
• Tough Full Metal and Rubber Casing

Simplify Your Deployment
TOUGHSwitch PoE allows network architects to design cleaner, less cluttered deployments. For example, integrating one TOUGHSwitch PoE PRO can eliminate the need for the following:

• 8 PoE adapters
• 8 power cords
• 8 power outlets
• 8 Ethernet patch cables

TOUGHSwitch PoE deployments increase efficiency and greatly reduce potential failure points f resulting in faster installations and less maintenance and troubleshooting.

Intuitive Configuration Interface
TOUGHSwitch PoE provides a user-friendly configuration interface designed for efficient setup and control. Accessed via a secured management port and web browser, the TOUGHSwitch Configuration Interface provides intuitive management with a virtual view of the ports, showing physical connectivity, speed and PoE status.

Clean Industrial Design
The TOUGHSwitch is designed to simplify deployment, consolidating the delivery of data and passive PoE (as needed).

Convenient PoE Support
The TOUGHSwitch supports 24V or 48V passive PoE to power multiple devices on your network.

Carrier-Class Reliability
The TOUGHSwitch delivers uptime performance equal to leading carrier or enterprise technology solutions.

Industrial-Strength Construction
The TOUGHSwitch is purpose-built with robust mechanicals for industrial application use.

A Single Power Source
Featuring software-selectable output voltage control, the TOUGHSwitch PoE PRO and Carrier models can power 24V or 48V devices.

Intuitive UI
Designed for efficient setup and control, the graphical user interface is easy to use and manages advanced Layer 2 features, including:

• Port monitoring
• System connection and management services
• Virtual Local Area Network (VLAN) configuration
• Spanning Tree Protocol (STP)/Rapid Spanning Tree Protocol (RSTP)
• Jumbo frame support
• Ping Watchdog
• Configurable alerts
