Ubiquiti Networks UniFi Access Point Enterprise Wi-Fi System, 2.4GHz, 5GHz

SKU: UBIUAPPRO3US

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks UAP-PRO Specifications

  • Networking Interface

    2x 10/100/1000 Ethernet ports

  • Buttons

    Reset

  • Antennas

    2.4 GHz: Integrated 5 dBi Omni (supports 3 x 3 MIMO with spatial diversity)
    5.0 GHz: Integrated 4 dBi Omni (supports 2 x 2 MIMO with spatial diversity)

  • Operating Bands

    Simultaneous Dual Band 2.4GHz and 5GHz

  • Power Method

    Passive Power over Ethernet (48V), 802.3af Supported

  • Power Supply

    48V, 0.5A PoE Gigabit Adapter (Included)

  • Maximum Power Consumption

    12W

  • Maximum TX Power

    2.4GHz: 30dBm
    5.0GHz: 22dBm

  • BSSID

    Up to 4 per radio

  • Power Save

    Supported

  • Wireless Security

    WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

  • VLAN

    802.1Q

  • Advanced QoS

    Per user rate limiting

  • Guest Traffic Isolation

    Supported

  • WMM (Wi-Fi Multimedia)

    Voice, video, best effort andbackground

  • Concurrent Clients

    200+

  • Standards

    802.11a
    6, 9, 12, 18, 24, 36, 48, 54 Mb/s
    802.11n
    6.5 to 450 Mb/s (MCS0 - MCS23, HT 20/40)
    802.11b
    1, 2, 5.5, 11 Mb/s
    802.11g
    6, 9, 12, 18, 24, 36, 48, 54 Mb/s

  • Operating Temperature

    14 to 158 deg. F / -10 to 70 deg. C

  • Operating Humidity

    5 to 80% (non-condensing)

  • Certifications

    CE, FCC, IC

  • Dimensions

    200 x 200 x 36.5mm / 7.87 x 7.87 x 1.44"

  • Weight

    Without Mounting Kit: 298g / 10.51oz
    With Mounting Kit: 358g / 12.63oz

  • UPC Code

    192223056022

About Ubiquiti Networks UAP-PRO

Sleek Industrial Design
Featuring a clean industrial design, the UniFi AP can be integrated seamlessly into any wall or ceiling surface (mounting kits included ). The LED indicator simplifies deployment and configuration.

Scalability for Thousands
With its software-based capabilities, the UniFi virtual control plane allows for unlimited scalability under one centralized controller.

Rapid Deployment
Plug and Play installation and intuitive management reduce the need for dedicated IT personnel resources.

Amazing Long-Range Links
The UniFi AP-LR offers a longer range - up to 183 m - than the base model UniFi AP or UniFi AP-PRO.

Simultaneous Dual-Band Wi-Fi
The UniFi AP-PRO supports up to 300 Mbps, 2x2 MIMO for the 5 GHz band and up to 450 Mbps, 3x3 MIMO for the 2.4 GHz band.

No Software Fees
The UniFi Controller software is bundled with the UniFi AP hardware at no extra charge - no separate software, licensing or support fee.

Scalable Enterprise Wi-Fi Management
The UniFi Controller software is a powerful, enterprise wireless software engine ideal for high-density client deployments requiring low latency and high uptime performance. A single UniFi Controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers.

Advanced Software Functions

Intuitive and Robust Configuration, Control and Monitoring
Instantly provision and configure thousands of UniFi APs. Quickly manage system traffic.

Custom Maps and Google Maps
Upload custom map images or use Google Maps for a visual representation of your wireless network.

WLAN Groups
Take advantage of WLAN groups for flexible configuration of large deployments and enable wireless connection between APs to extend range.

What's in the box:

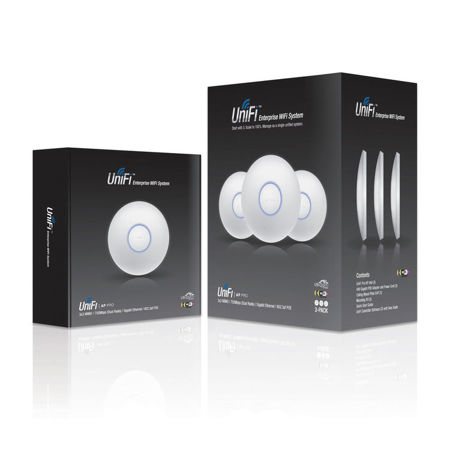

  • Ubiquiti Networks UniFi Access Point Enterprise Wi-Fi System
  • Mounting Bracket
  • Ceiling Backing Plate
  • 3x M3x50 Flat Head Screws
  • 3x M3 Keps Nuts
  • 3x M2.9x20 Screws
  • 3x M3x20 Screw Anchors
  • Gigabit PoE (48V & 0.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
