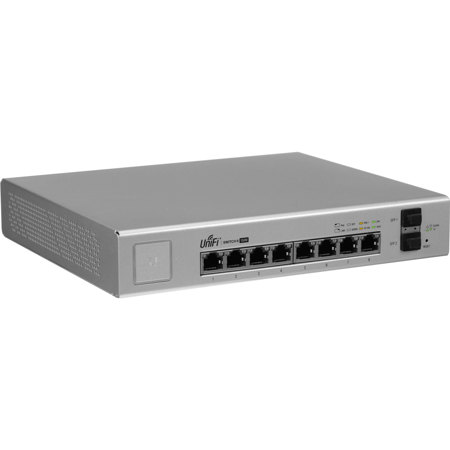

Ubiquiti Networks 150W UniFi Managed PoE+ Gigabit Switch with SFP, 8x RJ45 Ports
See all Ubiquiti Networks items

Ubiquiti Networks 150W UniFi Managed PoE+ Gigabit Switch with SFP, 8x RJ45 Ports

SKU: UBIUS8150WUS

This item is no longer available.

Recommended Alternatives

Ubiquiti Networks : Picture 1 regular
Ubiquiti Networks UniFi Switch, 8-ports, 60W, with 4-ports
$114.99
Ubiquiti Networks EdgeSwitch 48: Picture 1 regular
Ubiquiti Networks EdgeSwitch 48 Port 500W Gigabit Switch with SFP and SFP+
$899.00
Ubiquiti Networks USW-24-POE: Picture 1 regular
Ubiquiti Networks USW-24-POE Gen 2 120W Gigabit Layer 2 Ethernet Switch with SFP
$379.00
Ubiquiti Networks UniFi Lite: Picture 1 regular
Ubiquiti Networks UniFi Lite 16-Port Gigabit PoE+ Compliant Managed Switch
$199.00
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?Bradley W : I already have a ubiquity APAamir M : its work very goodLulzim B : Awesome place to shop Turn around as quickDavid S : Previous experience with the productpaul b : Great PoE solution.Joseph C : Home office network, unifi networkJanine J : because I was told to. LOL Seriously, I would like to thank Adorama for still being around. There's so many sites that are fraudulent, Adorama has been around a LONG time and so it's easy buy from them because they're trustworthy.Terry L : Great switchTHOMAS L : business needKEVIN H : Over the last year I've upgraded home network to Unifi Line. This product was chosen since it integrates nicely with my Gen2 Cloud Controller, offers V-LAN tagging and also provides POE+ on all ports.

Reviews about this item

Review Summary

2019-12-29T11:34:47

Rated 4 out of 5

Great additional piece for me who is already invested within unifi networking line of products

This switch is great if you are already invested in unifi line of networking products. It was easily recognized by my Gen 2 controller and software was easily upgradeable after initial installation. It offers poe on every switch segment which makes it easy since I don't have to keep track of the poe vs non pe devices attached to the switch. The device is a lot heavier than I thought it would be for its size. It runs moderately warm but is very quiet. Since I don't have this device in a rack I would have preferred some switch ports on back of device however only power port is located on the back. Switch arrived from adorama within two days of placing order which I thought was great.

Kevin H.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks US-8-150W Specifications

  • Total Non-Blocking Throughput

    10Gbps

  • Switching Capacity

    20Gbps

  • Forwarding Rate

    14.88 Mpps

  • Maximum Power Consumption

    Including PoE Output: 150W
    Excluding PoE Output: 20W

  • Power Method

    100-240VAC/50-60 Hz, Universal Input

  • Power Supply

    AC/DC, Internal, 150W DC

  • LEDs

    RJ45 Data Ports: PoE, Speed/Link/Activity
    SFP Data Ports: Speed/Link/Activity

  • Networking Interfaces

    8x 10/100/1000 Mbps RJ45 Ethernet Ports
    2x 1 Gbps SFP Ethernet Ports

  • Management Interface

    Ethernet In-Band

  • Certifications

    CE, FCC, IC

  • ESD/EMP Protection

    Air: +/- 24 kV, Contact: +/- 24 kV

  • Shock and Vibration

    ETSI300-019-1.4 Standard

  • PoE Interfaces

    POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-)
    24VDC Passive PoE (Pins 4, 5+; 7, 8-)

  • Voltage Range

    802.3at Mode: 50-57V
    24V Passive PoE: 20-27V

  • Maximum PoE Wattage Per Data Port

    17W

  • Operating Temperature

    -5 to 40 deg. C / 23 to 104 deg. F

  • Operating Humidity

    5 to 95% Noncondensing

  • Dimensions

    204 x 43 x 235mm / 8.03 x 1.69 x 9.25"

  • Weight

    1.7kg / 3.75lbs

  • UPC Code

    810354024450

About Ubiquiti Networks US-8-150W

US-8-150W

• (8) Gigabit RJ45 Ports
• (2) SFP Ports
• Supports POE+ IEEE 802.3at/af and 24V Passive PoE
• Desktop-Mountable (Do not physically stack the US-8-150W.) Non-Blocking Throughput Switching Performance Gigabit Ethernet RJ45 and SFP+/SFP Ports Auto-Sensing IEEE 802.3af/at PoE

UniFi Switch
Build and expand your network with Ubiquiti Networks UniFi Switch, part of the UniFi line of products. The UniFi Switch is a fully managed, PoE+ Gigabit switch, delivering robust performance and intelligent switching for growing networks.

Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.

PoE+ Flexibility
The UniFi Switch models are available with 8, 16, 24 or 48 PoE Gigabit Ethernet ports of auto-sensing IEEE 802.3af/at or configurable 24V passive PoE to simplify your infrastructure. By default, the UniFi Switch automatically detects 802.3af/at devices so they automatically receive PoE. For 24V passive PoE devices, manually enable 24V passive PoE using the UniFi Controller software.

Fiber Connectivity
The UniFi Switch provides fiber connectivity options for easy expansion of your networks. Each UniFi Switch model includes two SFP ports for uplinks of up to 1 Gbps. Each 48-port model adds two SFP+ ports for high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

UniFi Controller
Designed for convenient management, the UniFi Controller software allows admins to configure and monitor the UniFi Switch and other UniFi devices using a graphical user interface.

Multi-Site Management
A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics and admin accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• PoE setting per port
• Operation mode (switching, mirroring or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration

Switch Port Status
You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• PoE status
• Network/VLAN setting

Dashboard
The Dashboard tab provides a visual representation of your network's status. Basic information is provided for each network segment

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks 150W UniFi Managed PoE+ Gigabit Switch
  • Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
