Closeout

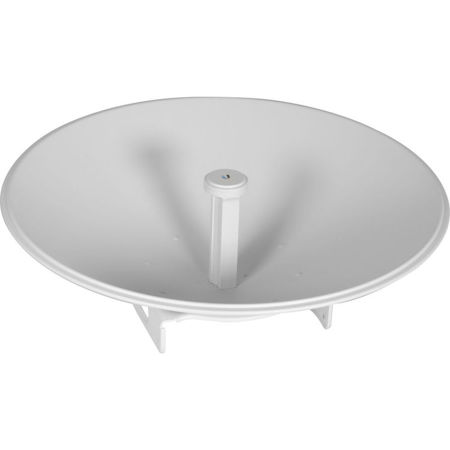

Ubiquiti Networks PowerBeam ac 5GHz High-Performance airMAX Bridge with 620mm Dish Reflector, 29dBi Gain

SKU: UBPBE5AC620 MFR: PBE-5AC-620-US
$194.99
$219.00
Save: $24.01 (11%)
Earn VIP Reward Points

Key Features

  • Experience superior wireless bridge performance with the Ubiquiti PowerBeam ac.
  • Achieve long-range connectivity with a 29dBi gain, perfect for rural internet access.
  • Enjoy a stable connection in harsh conditions, thanks to UV-stabilized plastic build.
  • Gigabit PoE support ensures fast data transfer and easy, cost-effective installation.
  • Extend your network effortlessly; ideal for connecting buildings or remote locations.
  • Advanced airMAX technology enhances network speed and reduces signal interference.
See More Product Details
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks PowerBeam ac Specifications

  • Power Supply

    24V, 0.5A Gigabit PoE

  • Max. Power Consumption

    8.5W

  • Power Method

    Passive PoE (Pairs 4, 5+; 7, 8 Return)

  • Supported Voltage Range

    20-26VDC

  • Operating Frequency

    Worldwide: 5150 - 5875 MHz
    USA: U-NII-1: 5150 - 5250 MHz
    USA: U-NII-2A: 5250 - 5350 MHz
    USA: U-NII-2C: 5470 - 5725 MHz
    USA: U-NII-3: 5725 - 5850 MHz

  • Gain

    29 dBi

  • Networking Interface

    (1) 10/100/1000 Ethernet Port

  • Processor Specs

    Atheros MIPS 74Kc, 720 MHz

  • Memory

    128MB DDR2, 16MB Flash

  • LEDs

    (1) Power, (1) LAN, (4) WLAN

  • Signal Strength LEDs

    Software-Adjustable to Correspond to Custom RSSI Levels

  • Max. VSWR

    1.6:1

  • Channel Sizes

    PtP Mode: 10/20/30/40/50/60/80 MHz
    PtMP Mode: 10/20/30/40 MHz

  • Polarization

    Dual Linear

  • Enclosure

    Outdoor UV Stabilized Plastic

  • Mounting

    Pole-Mount (Kit Included)

  • Wind Loading

    Radome Excluded: 1510 N at 200 km/h (340 lbf at 125 mph)
    Radome Included: 1830 N at 200 km/h (411 lbf at 125 mph)

  • Wind Survivability

    200 km/h (125 mph)

  • ESD/EMP Protection

    Air: +/- 24 kV, Contact: +/- 24 kV

  • Operating Temperature

    -40 to 70 deg. C (-40 to 158 deg. F)

  • Operating Humidity

    5 to 95% Noncondensing

  • Wireless Approvals

    FCC, IC, CE

  • RoHS Compliance

    Yes

  • Salt Fog Test

    IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

  • Vibration Test

    IEC 68-2-6

  • Temperature Shock Test

    IEC 68-2-14

  • UV Test

    IEC 68-2-5 at 40 deg. C (104 deg. F), Equivalent: ETS 300 019-1-4

  • Wind-Driven Rain Test

    ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

  • Dimensions

    620 x 620 x 386mm (24.41 x 24.41 x 15.20")

  • Weight

    6.4kg (14.11 lbs)

  • UPC Code

    810354021848

Models
Ubiquiti Networks PowerBeam ac 5GHz airMAX Bridge with 620mm Dish Reflector
$194.99

$219.00

Save:$24.01 (11%)

In Stock

Ubiquiti 2 PACK Networks NBE-5AC-GEN2 NanoBeam ac Gen2 airMAX ac CPE
$198.00

Ships from Manufacturer

Usually ships within 1-2 Days

Ubiquiti Networks LTU Pro 5GHz PtMP Radio Client with Advanced RF Performance
$179.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Accessory TypeWireless BridgesWireless BridgesAntenna, Wireless Bridges

About Ubiquiti Networks PowerBeam ac

Be at the forefront of wireless connectivity with the PowerBeam ac 5GHz High-Performance airMAX Bridge from Ubiquiti Networks. This advanced piece of Customer Premises Equipment (CPE) is designed to deliver superior performance, with a focus on noise immunity and integrated design.

The PowerBeam ac operates at a 5GHz frequency, directing RF energy in a concentrated beamwidth. This focused directionality not only enhances signal strength but also significantly improves noise immunity, a critical feature in areas congested with similar frequency RF signals.

Ubiquiti's innovative InnerFeed technology integrates the radio directly into the antenna's feedhorn, eliminating the need for cables and thereby reducing cable losses. This integration results in a high-performance, cost-effective solution that is versatile and easy to deploy.

The PowerBeam ac is powered by airOS 7, Ubiquiti's revolutionary operating system. This system boasts an array of powerful wireless features, including airMAX ac Protocol Support, Long-Range Point-to-Point (PtP) Link Mode, and Selectable Channel Width. It also offers automatic channel selection, transmit power control, and the strongest WPA2 security.

The PowerBeam ac also features advanced RF analytics, thanks to its multi-radio architecture. This system persistently analyzes the full 5GHz spectrum, providing you with the most comprehensive RF analytics in the industry.

The PowerBeam ac also comes with airView, a powerful spectrum analyzer that constantly monitors environmental noise, helping you optimize channel selection, network design, and overall wireless performance.

Ubiquiti's Time Division Multiple Access (TDMA) airMAX protocol, unlike standard Wi-Fi protocol, allows each client to send and receive data using pre-designated timeslots, eliminating hidden node collisions and maximizing airtime efficiency. This results in significant performance improvements in latency, noise immunity, scalability, and throughput.

The PowerBeam ac also boasts superior performance, thanks to Ubiquiti's next-generation airMAX ac technology. This technology supports high data rates, which require dense modulation, and can support up to 450+ Mbps real TCP/IP throughput - up to triple the throughput of standard airMAX products.

The PowerBeam ac is also designed for easy installation and durability. Its innovative mechanical design includes built-in mechanical tilt and quick assembly features. The hardware is made of galvanized steel that is powder-coated for superior corrosion resistance, ensuring longevity and reliability.

In summary, the PowerBeam ac 5GHz High-Performance airMAX Bridge is a powerful, versatile, and cost-effective solution for high-speed, long-range wireless connectivity.

Ubiquiti Networks PowerBeam ac Features

  • High-performance 5GHz airMAX Bridge for long-range wireless connectivity
  • Integrated InnerFeed technology eliminates cable losses for enhanced performance
  • Features airOS 7 with advanced usability and powerful wireless functionalities
  • Advanced RF analytics with dedicated radio architecture for comprehensive spectrum analysis
  • Robust TDMA airMAX protocol for improved latency, noise immunity, and throughput
  • Durable, industrial-strength construction with powder-coated galvanized steel components

Key Features

  • Experience superior wireless bridge performance with the Ubiquiti PowerBeam ac.
  • Achieve long-range connectivity with a 29dBi gain, perfect for rural internet access.
  • Enjoy a stable connection in harsh conditions, thanks to UV-stabilized plastic build.
  • Gigabit PoE support ensures fast data transfer and easy, cost-effective installation.
  • Extend your network effortlessly; ideal for connecting buildings or remote locations.
  • Advanced airMAX technology enhances network speed and reduces signal interference.

What's in the box:

  • Ubiquiti Networks Dish Reflector with Mounting Bracket
  • Antenna Feed
  • Rear Housing
  • Support Arm
  • Upper Pole Bracket Assembly
  • Lower Pole Bracket
  • Brace
  • 4x Screws
  • 5x Hex Head Bolts
  • 5x Lock Washers
  • 5x Flat Washers
  • 2x Stabilizer Brackets
  • 2x M10x100 Bolts
  • 2x M10 Flange Nuts
  • 4x M8 Flange Nuts
  • 4x M8x150 Carriage Bolts
  • 2x Pole Clamps
  • Gigabit PoE (24V/0.5A) with Mounting Bracket
  • Power Cord
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
