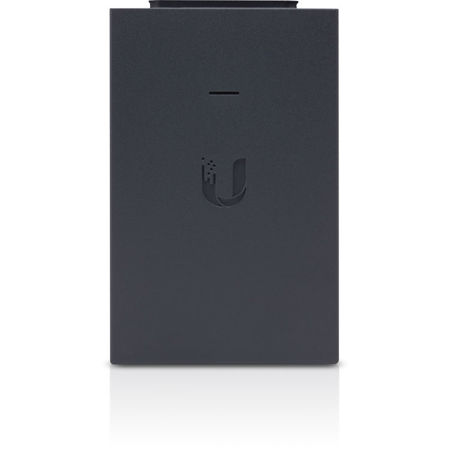

Ubiquiti Networks Power over Ethernet Adapter for AirFiber5X Devices, 24VDC, 24W

SKU: UBPOE24AF5X

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main advantage of using this Power over Ethernet (PoE) Adapter with AirFiber5X devices?

This PoE Adapter is specifically designed for AirFiber5X devices, ensuring perfect compatibility and reliable performance. It also allows for the simultaneous transfer of power and data over a single Ethernet cable, making it a convenient and efficient solution.

Does this PoE Adapter offer any protective features for my devices?

Yes, this PoE Adapter provides a variety of protective features, including surge protection, clamping protection, maximum surge discharge, and peak pulse current. It also comes with an AC cable with earth ground to protect against Electrostatic Discharge (ESD), a common cause of outdoor device failures.

Can I use this PoE Adapter with other cables or connectors?

While this PoE Adapter is designed to work seamlessly with Ubiquiti TOUGHCable and TOUGHCable Connectors for enhanced protection, it is compatible with any standard Ethernet cables and connectors that support PoE.

Reviews about this item

Review Summary

Ubiquiti Networks Power over Ethernet Adapter for AirFiber5X Devices, 24VDC, 24W Specifications

  • Compatibility

    AirFiber5X Devices

  • Output Voltage

    24VDC at 1.0A

  • LAN Activity Indicator

    No

  • Gigabit LAN Port

    Yes

  • Remote Reset Capability

    No

  • Reset Button

    No

  • Input Voltage

    90-260VAC at 47-63Hz

  • Input Current

    0.6A at 120VAC
    0.4A at 240VAC

  • Inrush Current

    <60A Peak at 120VAC
    <120A Peak at 230VAC

  • Efficiency

    80+%

  • Output Ripple

    1% Max.

  • Switching Frequency

    65kHz

  • Line Regulation

    +/- 1%

  • Load Regulation

    +/- 3%

  • 4-Pair Powering

    Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)

  • AC Connector

    IEC-320 C6

  • Data IN / POE

    RJ45 Shielded Socket

  • Surge Protection

    Difference and Common Mode

  • Clamping Protection

    11V Data, 60V Power

  • Max. Surge Discharge

    1500A (8/20 Mus) Power

  • Peak Pulse Current

    36A (10/1000 Mus) Data

  • Shunt Capacitance

    <5 pF data

  • Response Time

    <1 ns

  • Compliance

    IEC 60950-1:2005+A1
    UL60950-1
    EN55022:2010, EN55024:2010
    FCC Class B

  • AC Cable with Earth Ground

    USA, EU, AR, BR, UL, CCC, Mexico

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Storage Temperature

    -30 to 70 deg. C (-22 to 158 deg. F)

  • Operating Humidity

    35 to 95% Noncondensing

  • Dimensions

    3.47 x 2.24 x 1.30" (8.81 x 5.69 x 3.30cm)

  • Weight

    158.5g (5.59 oz)

About Ubiquiti Networks Power over Ethernet Adapter for AirFiber5X Devices, 24VDC, 24W

Take your device connectivity to the next level with the Power over Ethernet (PoE) Adapter, specifically designed for AirFiber5X devices. This innovative product, brought to you by Ubiquiti Networks, is not just reliable and durable, but it also offers high-quality performance that you can count on.

This PoE adapter is more than just a power source. It's a convenient solution that allows for the simultaneous transfer of power and data over a single Ethernet cable. This eliminates the need for additional power outlets and cables, making it an efficient choice for your networking needs.

One of the standout features of this PoE adapter is its compatibility with AirFiber5X devices. This ensures seamless integration and consistent performance, making it an ideal choice for users of these devices.

But that's not all. This PoE adapter is also designed with your device's protection in mind. It boasts a variety of protective features, including surge protection, clamping protection, maximum surge discharge, and peak pulse current. It also comes with an AC cable with earth ground to effectively protect against Electrostatic Discharge (ESD), the leading cause of outdoor device failures.

In addition, the use of a grounded Ubiquiti PoE Adapter, along with TOUGHCable and TOUGHCable Connectors, can provide further protection against ESD damage.

In essence, this PoE adapter is not just a power source, but a comprehensive solution for powering, connecting, and protecting your devices. So, enhance your networking setup with this innovative, high-quality PoE adapter for AirFiber5X devices.

What's in the box:

  • Ubiquiti Networks Power over Ethernet Adapter
  • US Power Cord
  • Ubiquiti Networks 1 Year Limited Warranty
