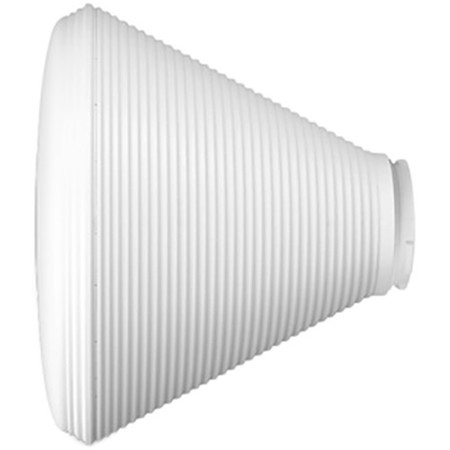

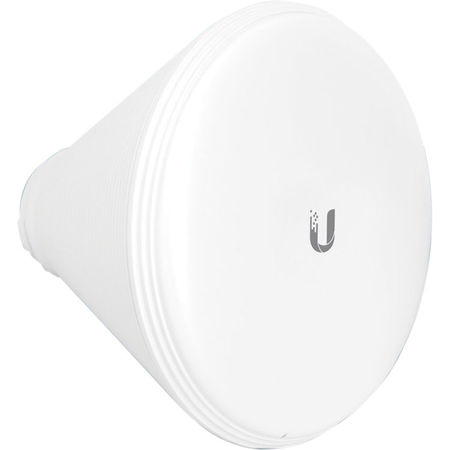

Ubiquiti Networks PrismAP 5GHz airMAX ac Sector Isolation Antenna Horn, 30 Degree Beamwidth

SKU: UBPRISMAP530 MFR: PRISMAP-5-30
$79.99
Earn VIP Reward Points

Key Features

  • Achieve superior wireless coverage with this 5GHz airMAX ac sector antenna.
  • Enjoy a focused 30-degree beamwidth, minimizing interference for clearer WiFi.
  • Boost your network's signal strength with a 19dBi gain for reliable connections.
  • Designed for robust performance, withstands winds up to 125 mph easily.
  • Dual-linear polarization enhances signal quality, improving your wireless experience.
  • Quickly deploy a secure network with this antenna, built for optimal isolation.
See More Product Details
Temporarily On Backorder?Expected Availability: 11/2025Request assistance or get notified
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$5.99

2 Year

$8.99

3 Year

$15.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks PrismAP Specifications

  • Supported Frequency Range

    5.15 - 5.85GHz

  • Gain

    19dBi

  • HPOL Beamwidth

    30 deg.

  • VPOL Beamwidth

    30 deg.

  • Elevation Beamwidth

    30 deg.

  • Maximum VSWR

    1.7:1

  • Wind Survivability

    200 km/h (125 mph)

  • Wind Loading

    56 N at 200 km/h (12.6 lbf at 125 mph)

  • Polarization

    Dual-Linear

  • Cross-Pol Isolation

    17dB

  • Dimensions

    (Dia.) 8.71 x 7.3" (221.23 x 185.42mm)

  • Weight

    38.8 oz (1099.96g)

  • UPC Code

    817882020060

About Ubiquiti Networks PrismAP

A revolutionary addition to the world of wireless connectivity, the PrismAP 5GHz airMAX ac Sector Isolation Antenna Horn by Ubiquiti Networks is a testament to high-quality, durable, and innovative networking equipment. This antenna horn is specifically designed for PrismStation and IsoStation, aiming to enhance co-location performance significantly.

The product features a dual-linear polarization, ensuring efficient and reliable wireless communication. It also boasts a single-button release system, simplifying the process of changing antennas. The newly designed horn contributes to improved beam shaping, making it an ideal choice for those seeking precise and focused signal coverage.

The PrismAP antenna offers flexible sectorization, allowing for optional antenna beam-widths. This modular design enables users to tailor the antenna's performance to their specific deployment and environmental needs. The PrismAP 5GHz airMAX ac Sector Isolation Antenna Horn is compatible with both PrismStation 5AC and IsoStations, utilizing horn antenna sectors to boost co-location performance without compromising gain.

The product's scalability is another standout feature, with symmetrical horn antennas available in both 30-degree and 45-degree versions. This offers unprecedented scalability options for wireless systems. The unique beam performance and superior co-location characteristics allow for a higher density of sectors than traditional sector technology.

The PrismAP antennas are equipped with precise radiation angles for specific beam shaping, ranging from 30 degrees to 90 degrees. This makes them suitable for a wide range of installations, from point-to-point (PtP) to point-to-multipoint (PtMP) networks. Whether you're looking to provide internet access, video surveillance, or wireless backhaul, the PrismAP 5GHz airMAX ac Sector Isolation Antenna Horn is a reliable and efficient solution for all your wireless connectivity needs.

Ubiquiti Networks PrismAP Features

  • High-performance 5GHz airMAX ac Sector Isolation Antenna Horn with 30-degree beamwidth
  • Enhanced co-location performance suitable for PrismStation and IsoStation networks
  • Dual-linear polarization for efficient, reliable wireless communication
  • Easy-to-use single-button release for quick antenna changes
  • Innovative horn design for optimal beam shaping and signal focus
  • Flexible sectorization with interchangeable antennas ranging from 30 to 90 degrees

Key Features

  • Achieve superior wireless coverage with this 5GHz airMAX ac sector antenna.
  • Enjoy a focused 30-degree beamwidth, minimizing interference for clearer WiFi.
  • Boost your network's signal strength with a 19dBi gain for reliable connections.
  • Designed for robust performance, withstands winds up to 125 mph easily.
  • Dual-linear polarization enhances signal quality, improving your wireless experience.
  • Quickly deploy a secure network with this antenna, built for optimal isolation.

What's in the box:

  • Ubiquiti Networks PrismAP 5GHz airMAX ac Beamwidth Sector Isolation Antenna Horn
  • Ubiquiti Networks 1 Year Limited Warranty
