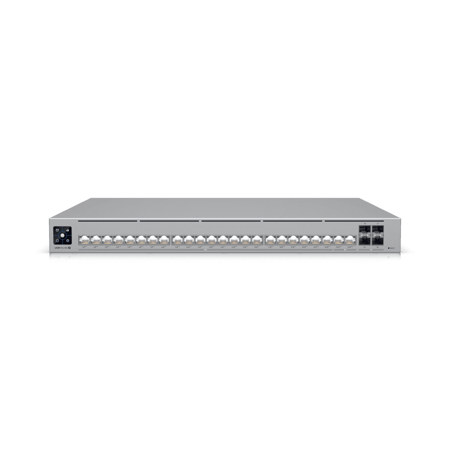

Ubiquiti Networks UniFi Pro HD 24 24-Port 600W PoE++ Managed Network Switch with 4x SFP+ Ports

SKU: UBROHD24POE MFR: USW-PRO-HD-24-POE
Earn VIP Reward Points

Key Features

  • Experience seamless networking with 24 PoE++ ports, perfect for powering your devices.
  • Utilize the UniFi Pro HD 24's managed network switch capabilities for optimal performance.
  • Enjoy high-speed connectivity with 4x SFP+ ports, ideal for demanding network applications.
  • This Ubiquiti switch offers Layer 3 features, enabling advanced network configurations.
  • With 600W PoE budget, power multiple devices like IP cameras and VoIP phones reliably.
  • Ensure network reliability with redundancy features like DC power backup for critical uptime.
See More Product Details
Special Order?Estimated to Ship: 08/24/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Pro HD 24 Specifications

General

General

Jump to...
  • Port Layout

    2.5 GbE RJ45: 22 (All PoE++) (2.5G/1G/100M/10M)
    10 GbE RJ45: 2 (All PoE++) (10G/5G/2.5G/1G/100M)
    10G SFP+: 4 (10G/1G)

  • Max. PoE Output

    Up to PoE++

  • Total PoE Availability

    600W

  • Redundancy

    DC Power Backup

  • Layer 3

    Yes

  • Form Factor

    Rack mount (1U)

  • Etherlighting

    Yes

Performance

Jump to...
  • Switching Capacity

    230 Gbps

  • Total Non-Blocking Throughput

    115 Gbps

  • Forwarding Rate

    171 Mpps

  • Supported VLANs

    1,000

  • MAC Address Table Size

    32,000

  • L3 Table Size

    ARP Entries: 12,000
    IPv4 Routes: 12,000

  • Packet Buffer Size

    2 MB

Layer 3 Features

Jump to...
  • DHCP Server (Local Networks)

    Yes

  • DHCP Relay

    Yes

  • Inter-VLAN Routing (Local Networks)

    Yes

  • Static Routing (Local Networks)

    Yes

Layer 2 Features

Jump to...
  • LACP Port Aggregation

    Yes

  • STP & RSTP

    Yes

  • QoS (DSCP)

    Yes

  • Pro AV Profiles

    Yes (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

  • Advanced IGMP Configuration

    Yes (Querier, Fast Leave, Router Port)

  • IGMP Snooping

    Yes

  • 802.1X Control

    Yes

  • MAC-Based ACLs & Device Isolation

    Yes

  • DHCP Snooping & Guarding

    Yes

  • Egress Rate Limit

    Yes

  • Flow Control

    Yes

  • Storm Control

    Yes

  • Multicast & Broadcast Rate Limiting

    Yes

  • MAC Address Blocking

    Yes

  • IP-Based ACLs & Network Isolation

    Yes

  • MAC-Based Port Restriction

    Yes

  • Port Isolation

    Yes

  • Port Mirroring

    Yes

  • Jumbo Frames

    Yes

  • LLDP-MED

    Yes

  • Voice VLAN

    Yes

  • Loop Protection

    Yes

Hardware

Jump to...
  • PoE Ports

    PoE++: 24

  • Max. PoE Wattage per Port by PSE

    PoE: 15.4W
    PoE+: 30W
    PoE++: 64W

  • Max. Power Consumption

    60W (Excluding PoE Output)
    660W (Including PoE Output)

  • Power Method

    (1) Universal input, 100-240V AC, 50/60 Hz
    (1) USP RPS DC input

  • Power Input Method

    AC input

  • Power Supply

    AC/DC, internal, 660W

  • Supported Voltage Range

    100-240V AC

  • Management

    Ethernet
    AR

  • Enclosure Material

    SGCC steel

  • Mount Material

    SGCC steel

  • Supported Rack Depth

    23.6-47.2" (600-1200mm)

  • LCM Display

    1.3" touchscreen

  • Ambient Operating Temperature

    23 to 104 Degree F (-5 to 40 Degree C)

  • Ambient Operating Humidity

    10 to 90% noncondensing

  • Etherlighting

    Ethernet: Yes
    SFP+: Yes

  • Certifications

    CE, FCC, IC

  • NDAA Compliant

    Yes

Software

Jump to...
  • Application Requirements

    UniFi Network: Version 9.0.114 and later

Physical

Jump to...
  • Dimensions

    17.4 x 15.7 x 1.7" (442 x 400 x 44mm)

  • Weight

    Without mounting brackets: 13.7 lbs (6.2kg)
    With mounting brackets: 13.9 lbs (6.3kg)

  • UPC Code

    810084696521

About Ubiquiti Networks Pro HD 24

Expand and power your network with the UniFi Pro PoE Switch, part of the Ubiquiti UniFi Enterprise System.

USW-Pro-24-PoE: 24 RJ45 ports with 2 SFP+ ports

Layer 3 Features
In addition to Layer 2 switching protocols and features, the UniFi Pro PoE Switch offers Layer 3 capabilities, such as inter-VLAN routing, static routing, and DHCP server functionality.

Near-Silent Cooling
The UniFi Pro PoE Switch can be located in any workspace. Its integrated fans have built-in PWM (Power Management) control, air ducts and covers, and temperature sensors for the best user experience.

Fiber Connectivity
SFP+ ports enable high-capacity uplinks of up to 10 Gbps, so you can directly connect to a high-performance storage server or deploy a long-distance uplink to another switch.

802.3bt PoE++
PoE support simplifies your network infrastructure and cabling. Eight ports offer 802.3bt PoE++ to provide up to 64W of power (per port) to your high-power PoE devices. Remaining ports offer 802.3af/at PoE

Redundant Power Option
The UniFi Pro PoE Switch supports an external DC input interface, the proprietary USP RPS interface, as a redundant power feature for backup if the internal PSU fails.

UniFi Pro 24-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (2) 1/10G SFP+ ports
• 1U Rackmountable (hardware included)

Innovative Display
The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting.

Scalable UniFi Network Controller

Management Capabilities
The UniFi Network Controller can provision UniFi devices, map out networks, and quickly manage system traffic. Important network details are logically organized for a simplified, yet powerful, interface.

Network Overview
From a single pane of glass, view network topology and configuration, real-time statistics, and debugging metrics. Monitor your network's vitals and make on-the-fly adjustments as needed.

Deep Packet Inspection
Ubiquiti's proprietary Deep Packet Inspection (DPI) engine includes the latest application identification signatures to track which applications (and IP addresses) are using the most bandwidth.

Detailed Analytics
The UniFi Network Controller provides configurable reporting and analytics to manage large user populations and expedite troubleshooting. Advanced search and sorting capabilities make network management more efficient.

Multi-Site Management
A single controller running in the cloud can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and administrator accounts.

Switch Configuration
You can access any managed UniFi Switch through the UniFi Controller to configure a variety of features:

• Operation mode (switching, mirroring, or aggregate) per port
• Network/VLAN configuration
• Jumbo frame and flow control services
• Network settings
• Storm control setting per port
• Spanning tree configuration
• 802.1X control and RADIUS VLAN
• Debug terminal option for command-line interface

Switch Port Status
You can also view status information for each port:

• Connection speed and duplex mode
• TX/RX data rates
• Network/VLAN setting

Software Features
The UniFi Network Controller software offers the following features:

• Centralized configuration management (including configuration cloning)
• Auto-MDIX automatically adjusts as needed for straight through or crossover cable
• 802.1X (RADIUS) authentication and dynamic VLAN

Ubiquiti Networks Pro HD 24 Features

  • 1.3" touchscreen with AR switch management
  • 22x Multi-speed 2.5 GbE PoE++ ports (2.5G/1G/100M/10M)
  • 2x Multi-speed 10 GbE PoE++ ports (10G/5G/2.5G/1G/100M)
  • 4x 10G SFP+ ports
  • 600W total PoE supply
  • DC power backup
  • Layer 3 switching features
  • 24x Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience seamless networking with 24 PoE++ ports, perfect for powering your devices.
  • Utilize the UniFi Pro HD 24's managed network switch capabilities for optimal performance.
  • Enjoy high-speed connectivity with 4x SFP+ ports, ideal for demanding network applications.
  • This Ubiquiti switch offers Layer 3 features, enabling advanced network configurations.
  • With 600W PoE budget, power multiple devices like IP cameras and VoIP phones reliably.
  • Ensure network reliability with redundancy features like DC power backup for critical uptime.

What's in the box:

  • Ubiquiti Networks UniFi Pro HD 24 24-Port 600W PoE++ Managed Network Switch
  • 2x Rack-Mount Brackets
  • 8x Bracket Screws
  • 4x Mounting Screws
  • 4x Cage Nuts
  • Power Cord
  • 4x Rubber Feet
  • Ubiquiti Networks 1 Year Limited Warranty
