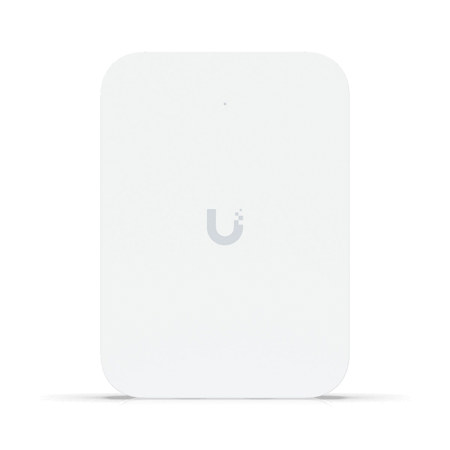

Ubiquiti Networks UniFi U7 Dual-Band Wi-Fi 7 Wall Mount Access Point

SKU: UBU7IWUS MFR: U7-IW-US
$149.00
Earn VIP Reward Points

Key Features

  • Experience seamless WiFi 7 connectivity with this Ubiquiti wall mount access point.
  • Boost your network with reliable WiFi; supports 200+ clients in a 1250 sq. ft area.
  • Enjoy fast roaming and advanced radio management for optimal WiFi performance.
  • Secure your network with guest network isolation and private pre-shared key options.
  • Power your devices using PoE+ with this access point's built-in PoE output switch.
  • Easy to set up and manage via Ethernet, this access point enhances your network security.
See More Product Details
Special Order?Estimated to Ship: 09/06/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks U7 In-Wall Specifications

General

General

Jump to...
  • Color

    White

  • Materials

    Enclosure: Polycarbonate, aluminum alloy
    Mount: Aluminum alloy

  • WiFi Standard

    WiFi 7

  • Spatial Streams

    4

  • Coverage Area

    1250 sq. ft (115m sq. ft)

  • Max. Client Count

    200+

  • Uplink

    2.5 GbE

  • Mounting

    Wall

  • Power Method

    PoE
    PoE+ (Required for PoE output)

Performance

Jump to...
  • MIMO

    5 GHz - 2 x 2 (DL/UL MU-MIMO)
    2.4 GHz - 2 x 2 (DL/UL MU-MIMO)

  • Max. Data Rate

    5 GHz - 4.3 Gbps (BW240)
    2.4 GHz - 688 Mbps (BW40)

  • Antenna Gain

    5 GHz - 8 dBi
    2.4 GHz - 4 dBi

  • Max. TX Power

    5 GHz - 24 dBm
    2.4 GHz - 23 dBm

  • Max. BSSIDs

    8 per Radio

Supported Data Rates

Jump to...
  • 802.11be

    7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240) (WiFi 7)

  • 802.11ax (WiFi 6)

    7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) (WiFi 6)

  • 802.11ac (WiFi 5)

    6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) (WiFi 5)

  • 802.11n

    6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Jump to...
  • Wireless Meshing

    Yes

  • Band Steering

    Yes

  • 802.11v BSS Transition Management

    Yes

  • 802.11r Fast Roaming

    Yes

  • 802.11k Radio Resource Management

    Yes (RRM)

  • Advanced Radio Management

    Yes

  • Passpoint

    Yes (Hotspot 2.0)

  • Captive Hotspot Portal

    Custom Branding Landing Page/Yes
    Voucher Authentication/Yes
    Payment-Based Authentication/Yes
    External Portal Server Support/Yes
    Password Authentication/Yes
    Guest Network Isolation/Yes

  • Private Pre-Shared Key

    Yes

  • WiFi Speed Limiting

    Yes

  • Client Device Isolation

    Yes

  • WiFi Schedules

    Yes

  • RADIUS over TLS

    Yes (RadSec)

  • Dynamic RADIUS-assigned VLAN

    Yes

Hardware

Jump to...
  • Max. Power Consumption

    13W (Excluding PoE output)

  • Supported Voltage Range

    42.5-57V DC

  • Networking Interface

    3x 2.5 GbE RJ45 ports

  • Management

    Ethernet

  • Built-In Switch

    PoE+ input
    PoE output

  • LEDs

    White/Blue (System)

  • Channel Bandwidth

    HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

  • Certifications

    CE, FCC, IC

  • NDAA Compliant

    Yes

  • Ambient Operating Temperature

    -22 Degree F to 104 Degree F (-30 Degree C to 40 Degree C)

  • Ambient Operating Humidity

    5 to 95% noncondensing

  • Application Requirements

    UniFi Network: Version 9.0.114 and later
    UniFi OS: iOS version 10.20.2 and later
    Android version 10.21.7 and later

Physical

Jump to...
  • Dimensions

    5.4 x 3.9 x 1.2" (137 x 98.7 x 30.2mm)

  • Weight

    14.1 oz (400g)

  • UPC Code

    810084698785

About Ubiquiti Networks U7 In-Wall

The UniFi U7 In-Wall Dual-Band Wireless Access Point from Ubiquiti Networks is a wall-mounted Wi-Fi 7 (802.11be) device featuring four spatial streams and an integrated 2.5GbE RJ45 input/PoE/PoE+ port. Additional connectivity includes a 2.5GbE RJ45 port and 2.5GbE RJ45 PoE output. Delivers up to 4.3 Gb/s on 5 GHz and 688 Mb/s on 2.4 GHz bands with backward compatibility for Wi-Fi 6/5/4. Offers 5 dBi antenna gain, 1250 sq. ft coverage, 200+ client capacity, status LED, and comes with metal wall mount hardware.

Ubiquiti Networks U7 In-Wall Features

  • 1250 sq. ft coverage
  • 200+ connected devices
  • Dual-radio 2.4/5 GHz
  • 4-stream WiFi 7 access point

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience seamless WiFi 7 connectivity with this Ubiquiti wall mount access point.
  • Boost your network with reliable WiFi; supports 200+ clients in a 1250 sq. ft area.
  • Enjoy fast roaming and advanced radio management for optimal WiFi performance.
  • Secure your network with guest network isolation and private pre-shared key options.
  • Power your devices using PoE+ with this access point's built-in PoE output switch.
  • Easy to set up and manage via Ethernet, this access point enhances your network security.

What's in the box:

  • Ubiquiti Networks UniFi U7 Dual-Band Wi-Fi 7 Wall Mount Access Point
  • Mounting Hardware
  • Ubiquiti Networks 1 Year Limited Warranty
