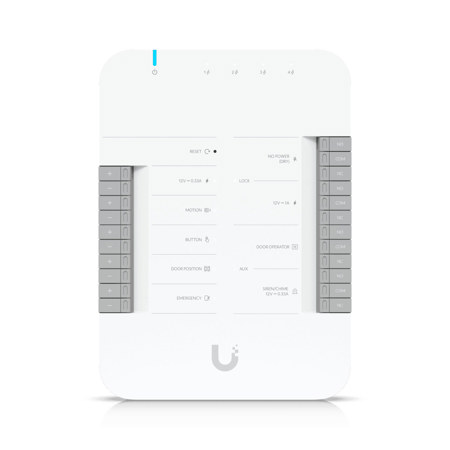

Ubiquiti Networks UniFi PoE++ Access Door Hub

SKU: UBUAHUBDOOR MFR: UA-HUB-DOOR
Earn VIP Reward Points

Key Features

  • Manage access for a single door with the UniFi PoE++ Access Door Hub, simplifying security.
  • Power your door's lock and access components using PoE++, reducing cable clutter and install time.
  • Ensure building security with UL 294 certified access control, built for reliability and safety.
  • Integrate seamlessly with UniFi Access for full management and monitoring of your door system.
  • Use the Access Door Hub's multiple inputs for exit requests and door position sensors for added security.
  • Expand your network with five 10/100/1000 Base-T ports on the Access Door Hub, enhancing connectivity.
See More Product Details
Temporarily On Backorder?Expected Availability: 10/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$14.99

2 Year

$24.99

3 Year

$34.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Door Hub Specifications

General

General

Jump to...
  • Supported Doors

    1

  • Input Terminals

    2x Door exit request
    1x Door position
    1x Emergency

  • Power Method

    PoE++
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU

  • NDAA Compliant

    Yes

  • UL 294 Level

    Destructive Attack: Level I
    Line Security: Level I
    Endurance: Level I
    Standby Power: Level I

Hardware

Jump to...
  • Digital Input

    Request to exit, request to enter, remote release, door position sensor

  • Dry Output Relay

    Lock: 30V DC, 1A
    Aux: 30V DC, 1A

  • Powered Output Relay

    Lock: 12V DC, 1A
    Aux: 12V DC, 0.33A

  • Indoor/Outdoor Use

    Indoor only

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    5 to 95% noncondensing

  • Networking Interface

    5x 10/100/1000 Base-T

  • PoE Interface

    1x PoE++ input, 50V DC, 1A
    4x PoE outputs, 50V DC, 15.4W per port (28W max)

  • Max Power Consumption

    30W (without PoE output)
    50W (with PoE output)

  • LEDs

    W/B

  • Buttons

    1x Factory-reset

  • Recommended Cable Lengths

    UA-Lock-Electric (400mA):
    24 AWG: 25m (82ft), 22 AWG: 42m, 20 AWG: 66m, 18 AWG: 100m
    UA-Lock-Magnetic-540kg (500mA):
    24 AWG: 20m, 22 AWG: 32m, 20 AWG: 51m, 18 AWG: 80m
    UA-Lock-Magnetic-270kg (800mA):
    24 AWG: 12m, 22 AWG: 20m, 20 AWG: 30m, 18 AWG: 46m
    Other locks (1A):
    24 AWG: 9m, 22 AWG: 15m, 20 AWG: 24m, 18 AWG: 36m

  • PoE Cabling Requirements

    Min. Cat 5e; 26 AWG for patch cords; 24 AWG for horizontal/riser cable

  • UL 294 Statement

    IEEE 802.3 (at/af) compliance not verified under UL 294
    Complies with NEC Article 725.121

  • CAN/ULC Grade

    Grade 1

  • Certifications

    CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

  • Document Info

    UA-Hub-Door002, V01

Software

Jump to...
  • Management Application

    Access

Physical

Jump to...
  • Material

    Enclosure/Mount: Polycarbonate

  • Mounting

    DIN-rail (Included)

  • Dimensions

    6.9 x 5 x 1.3" (174.9 x 126 x 32.9mm)

  • Weight

    12.8 oz (363g)

  • UPC Code

    810084690598

About Ubiquiti Networks Door Hub

A single-door mechanism that provides complete entry and exit control via connected Access Readers.

Door Hub is a secure, single-door access controller designed for precise entry and exit control. It features PoE++ power, DIN-rail mounting, and supports integration with access readers. Built for indoor use, it complies with UL 294 Level I and NDAA standards, making it ideal for secure environments.

Ubiquiti Networks Door Hub Features

  • Controls one door with secure access via connected readers
  • Indoor DIN-rail mount design for easy installation
  • PoE++ powered with up to 4 PoE outputs for accessories
  • Compliant with UL 294 Level I and NDAA standards

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Manage access for a single door with the UniFi PoE++ Access Door Hub, simplifying security.
  • Power your door's lock and access components using PoE++, reducing cable clutter and install time.
  • Ensure building security with UL 294 certified access control, built for reliability and safety.
  • Integrate seamlessly with UniFi Access for full management and monitoring of your door system.
  • Use the Access Door Hub's multiple inputs for exit requests and door position sensors for added security.
  • Expand your network with five 10/100/1000 Base-T ports on the Access Door Hub, enhancing connectivity.

What's in the box:

  • Ubiquiti Networks UniFi PoE++ Access Door Hub
  • Mounting Rail
  • Screws
  • Ubiquiti Networks 1 Year Limited Warranty
