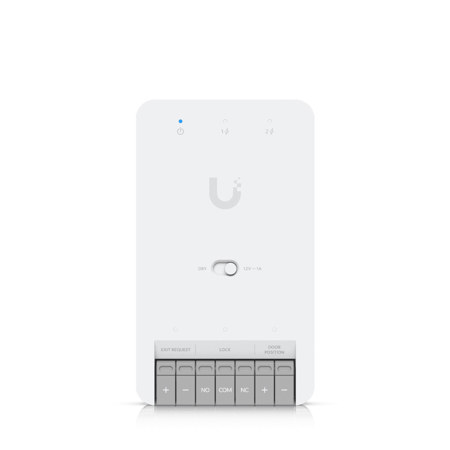

Ubiquiti Networks UniFi Compact PoE++ Access Door Hub Mini

SKU: UBUAHUBMINI MFR: UA-HUB-DOOR-MINI
$129.00
Earn VIP Reward Points

Key Features

  • Enhance your security with the UniFi Compact Door Hub Mini's robust connectivity options.
  • Simplify access control with PoE++ for reliable power and efficient network integration.
  • Manage your building's access points easily using the intuitive UniFi Access application.
  • Ensure top-notch security with UL 294 certified access, offering peace of mind.
  • Expand your network with three GbE RJ45 ports for seamless, high-speed data transfer.
  • Compact design fits anywhere, offering versatile mounting for easy installation in any space.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Door Hub Mini Specifications

General

General

Jump to...
  • Supported Doors

    1

  • Input Terminals

    1x Door exit request
    1x Door position

  • Power Method

    PoE++
    UL 294 Power-limited Class 2 PSU
    UL 60950-1/62368-1 LPS/PS2 PSU

  • NDAA Compliant

    Yes

  • UL 294 Level

    Destructive Attack: Level I
    Line Security: Level I
    Endurance: Level I
    Standby Power: Level I

Hardware

Jump to...
  • Dry Output Relay

    30V DC, 1A

  • Indoor/Outdoor Use

    Indoor only

  • Operating Temperature

    32 to 104 Degree F (0 to 40 Degree C)

  • Operating Humidity

    5 to 90% noncondensing

  • Networking Interface

    3x GbE RJ45 ports

  • PoE Interface

    1x PoE++ input, 50V DC, 1A
    2x PoE outputs, total 31W

  • Max Power Consumption

    19W (without PoE output)
    50W (with PoE output)

  • Wet Output Relay

    12V DC, 1A

  • LEDs

    W/B

  • Buttons

    1x Factory-reset
    1x Dry/Wet switch

  • Recommended Cable Lengths

    UA-Lock-Electric (400mA):
    24 AWG: 25m (82ft), 22 AWG: 42m, 20 AWG: 66m, 18 AWG: 100m
    UA-Lock-Magnetic-540kg (500mA):
    24 AWG: 12m, 22 AWG: 20m, 20 AWG: 30m, 18 AWG: 46m
    UA-Lock-Magnetic-270kg (800mA):
    24 AWG: 12m, 22 AWG: 20m, 20 AWG: 30m, 18 AWG: 46m
    Other locks (1A):
    24 AWG: 9m, 22 AWG: 15m, 20 AWG: 24m, 18 AWG: 36m

  • PoE Cabling Requirements

    Min. Cat 5e; 26 AWG for patch cords; 24 AWG for horizontal/riser cable

  • UL 294 Statement

    IEEE 802.3 compliance not verified under UL 294
    Complies with NEC Article 725.121

  • CAN/ULC Grade

    Grade I

  • Certifications

    CE, FCC, IC, UL 294, CAN/ULC-60839-11-1

  • Document Info

    UA-Hub-Door-Mini, V01

Software

Jump to...
  • Management Application

    Access

Physical

Jump to...
  • Enclosure Material

    Polycarbonate, Metal

  • Mounting

    DIN-rail (Included)

  • Dimensions

    4.4 x 2.6 x 1.1" (113 x 66 x 27.6mm)

  • Weight

    6.7 oz (190g)

  • UPC Code

    810084698839

About Ubiquiti Networks Door Hub Mini

Door Hub Mini is a compact, PoE++ powered access control hub for a single door. With support for dry/wet relays, it offers seamless connectivity via 3 GbE ports and PoE inputs/outputs. Built for indoor use, it's UL 294 and NDAA compliant, ensuring high security for your entry points.

Ubiquiti Networks Door Hub Mini Features

  • Compact, PoE++ powered access control for a single door
  • Supports 1 door with dry/wet output relays
  • Includes 3 GbE RJ45 ports and PoE++ input/output
  • UL 294 and NDAA compliant with Grade I certification

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance your security with the UniFi Compact Door Hub Mini's robust connectivity options.
  • Simplify access control with PoE++ for reliable power and efficient network integration.
  • Manage your building's access points easily using the intuitive UniFi Access application.
  • Ensure top-notch security with UL 294 certified access, offering peace of mind.
  • Expand your network with three GbE RJ45 ports for seamless, high-speed data transfer.
  • Compact design fits anywhere, offering versatile mounting for easy installation in any space.

What's in the box:

  • Ubiquiti Networks UniFi Compact PoE++ Access Door Hub Mini
  • Mounting Rail
  • Screws
  • Ubiquiti Networks 1 Year Limited Warranty
