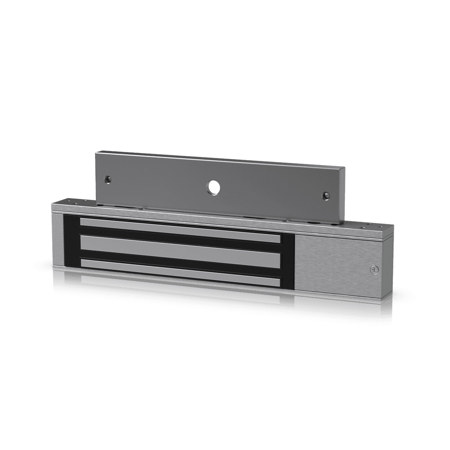

Ubiquiti Networks UniFi Fail-Safe Magnetic Lock, 600 lbs Capacity

SKU: UBUALM270KG MFR: UA-LOCK-MAGNETIC-270KG
$149.00
Earn VIP Reward Points

Key Features

  • Enhance your home security with this UniFi magnetic lock, offering a robust 600 lbs holding force.
  • Enjoy fail-safe door lock operation, ensuring your peace of mind with reliable access control.
  • This smart lock is compatible with wooden, metal, and glass doors for versatile home integration.
  • Receive real-time alerts via UA-Hub, keeping you informed about your door's security status.
  • Easy installation with included L, Z, and U brackets for various door opening configurations.
  • Operate within a wide temperature range, ensuring reliable smart lock performance in any climate.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$7.99

2 Year

$12.99

3 Year

$21.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Fail-Safe Magnetic Lock Specifications

Hardware

Hardware

Jump to...
  • Compatibility

    wooden/metal/glass door
    UA-Hub-Door
    EAH-8
    UA-Hub-Door-Mini
    UA-Ultra
    UA-Hub-Gate

  • Holding Force

    600 lbs (270kg)

  • Wiring Connection

    Connect below terminals to UA-Hub:
    Lock 12V/NC (connect to Power Lock Relay NC on UA-Hub)
    Lock 12V/COM (connect to Powered Lock Relay COM on UA-Hub)
    DPS/+ (DPS+ on UA-Hub)
    DPS/-(DPS-on UA-Hub)

  • Current Power

    800mA +/-10%

  • Supported Voltage Range

    12 VDC

  • Mounting Accessories

    L bracket : door thickness < 1.7" (< 43.18mm), outward opening door
    Z bracket: used with L bracket for inward opening door
    U bracket: used with glass door

  • LEDs

    Green: unlocked
    Red: locked

  • Ambient Operating Temperature

    14 to 122 Degree F (-10 to 50 Degree C)

  • Ambient Operating Humidity

    5 to 90% non-condensing

  • NDAA Compliant

    Yes

  • Certifications

    FCC, IC, CE

Physical

Jump to...
  • Material

    Enclosure:
    Device/brackets: Aluminum
    Armature: steel

  • Type

    Fail safe lock
    Single door

  • Dimensions

    Lock body: 9.84 x 1.65 x 1" (250 x 42 x 26mm)
    Install plate: 9.8 x 1 x 0.2" (250 x 25 x 5mm)
    Armature: 7.3 x 1.51 x 0.43" (185.5 x 38.5 x 11mm)

  • Weight

    Lock body: 2.2 lbs (1kg)
    Install plate: 2.46 oz (70g)
    Armature: 1.3 lbs (600g)

  • UPC Code

    810010076502

About Ubiquiti Networks Fail-Safe Magnetic Lock

Fail-safe magnetic lock for inswing and outswing doors that connects to a UniFi Access Hub. The Ubiquiti UniFi magnetic door lock provides a robust security solution, featuring a holding force of up to 600 lbs. This magnetic door lock is designed for versatile use, being compatible with wooden, metal, and glass doors. Equipped with LED indicators, it offers clear visual feedback on its status for enhanced usability. Operating effectively in environmental conditions, the lock can function in temperatures ranging from -10 Degree C to 50 Degree C. It includes a fail-unlocked mechanism for added safety during power outages, making it a reliable choice for securing properties while ensuring ease of access when needed.

Ubiquiti Networks Fail-Safe Magnetic Lock Features

  • Strong 600 lbs holding force for secure door locking
  • Compatible with wood, metal, and glass doors
  • LED indicators provide clear lock status at a glance
  • Operates in 14 to 122 Degree F for reliable performance
  • Fail-unlocked design ensures safety during outages

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance your home security with this UniFi magnetic lock, offering a robust 600 lbs holding force.
  • Enjoy fail-safe door lock operation, ensuring your peace of mind with reliable access control.
  • This smart lock is compatible with wooden, metal, and glass doors for versatile home integration.
  • Receive real-time alerts via UA-Hub, keeping you informed about your door's security status.
  • Easy installation with included L, Z, and U brackets for various door opening configurations.
  • Operate within a wide temperature range, ensuring reliable smart lock performance in any climate.

What's in the box:

  • Ubiquiti Networks UniFi Fail-Safe Magnetic Lock
  • Mounting Hardware
  • Ubiquiti Networks 1 Year Limited Warranty
