Review Summary
Lock body: zinc alloy
Front plate/latches: stainless steel
12V DC
400mA +/-10%
Connect the two screw terminal separately to powered lock relay on UA-Hub: NO, COM
Fail secure lock
Single door
2645 lbs (1200kg)
Wooden, steel, aluminum door
+ and -
14 Degree F to 113 Degree F (-10 Degree C to 45 Degree C)
5 to 90% noncondensing
FCC, IC, CE
Yes
Lock body: 3.2 x 1.6 x 1.4" (80 x 40 x 35mm)
Short front plate: 4.9 x 1.3 x 0.1" (124 x 32 x 3mm)
Long front plate: 7.9 x 1.4 x 0.1" (202 x 36 x 3mm)
Lock body: 6.5 oz (185g)
Short front plate: 1.8 oz (50g)
Long front plate: 4.6 oz (130g)
810010076496

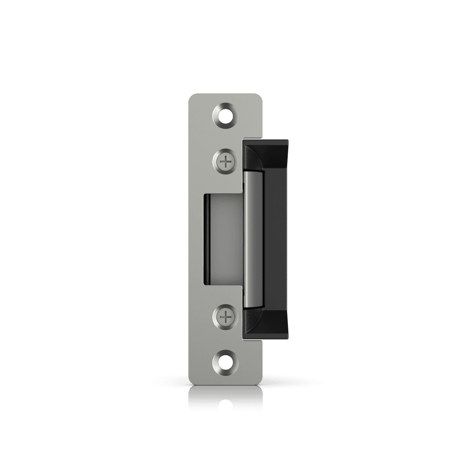

Fail-secure electric strike lock that connects to a UniFi Access Hub.
