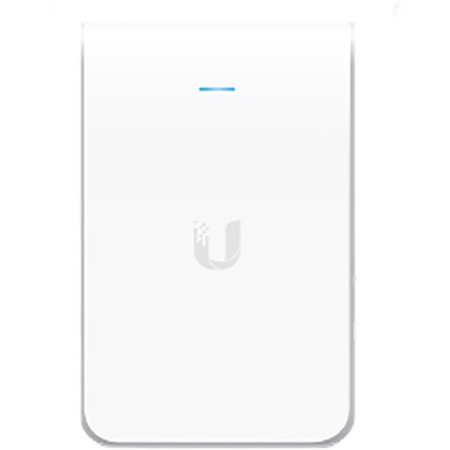

Ubiquiti Networks UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point, 2x2 MIMO

SKU: UBUAPACIW

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What is the main function of the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point?

The UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point is designed to convert an Ethernet wall jack into a high-performance dual-band Wi-Fi access point, providing high-speed wireless connectivity within a building or specific area.

What are the advantages of using the UniFi Controller software?

The UniFi Controller software provides an intuitive graphical user interface for easy configuration, monitoring, and management of your UniFi devices. It offers features like RF mapping, real-time status, automatic device detection, and advanced security options.

Can the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point be expanded to cover larger areas?

Yes, the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point is scalable, allowing you to start with a single access point and expand to thousands while maintaining a single unified management system.

What is the Power over Ethernet (PoE) feature in the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point?

One of the Gigabit Ethernet ports on the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point offers Power over Ethernet (PoE) capabilities, allowing you to power and connect PoE-compatible devices directly to your network.

Does the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point offer guest management features?

Yes, the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point offers a customizable Guest Portal/Hotspot Support with authentication, Hotspot setup, and external portal server capabilities for effective guest management.

Reviews about this item

Review Summary

2021-01-05T07:45:53

Rated 3 out of 5

Ubiquiti Networks UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Rating

I prefer the older model and they seem to work better and fit in wall instead of external. The newer model also seems to have an issue with interference and will disconnect frequently or not come online at all unless you reset it to factory numerous times. Once it is set up correctly, it seems to work well.

DAVID L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ubiquiti Networks UniFi AC In-Wall Specifications

  • Environment

    Indoor

  • Networking Interface

    3x 10/100/1000 Ethernet Ports

  • Buttons

    Reset

  • Power Method

    802.3at PoE+ Supported

  • Power Supply

    UniFi PoE Switch (Not Included)

  • Power Save

    Supported

  • PoE Out

    48V Pass-Through (Pins 1, 2+; 3, 6-)

  • Maximum Power Consumption

    With PoE Pass-through:
    7W
    19W (Requires 802.3at PoE+ switch)

  • Maximum TX Power

    2.4 GHz: 20 dBm
    5 GHz: 20 dBm

  • Antennas

    One Dual-Band Antenna, Single-Polarity
    2.4 GHz: 1 dBi
    5 GHz: 2 dBi

  • Wi-Fi Standards

    802.11 a/b/g/n/ac

  • Wireless Security

    WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

  • BSSID

    Up to 8 per Radio

  • MIMO

    2.4GHz: 2x2
    5GHz: 2x2

  • Mounting

    1-Gang Electrical Wall Box (Not Included)

  • Operating Temperature

    -10 to 50 deg. C (14 to 122 deg. F)

  • Operating Humidity

    5 to 95% Noncondensing

  • Certifications

    CE, FCC, IC

  • Advanced Traffic Management

    VLAN: 802.1Q
    Advanced QoS: Per-User Rate Limiting
    Guest Traffic Isolation: Supported
    WMM: Voice, Video, Best Effort and Background
    Concurrent Clients: 250+

  • Standard Data Rates

    802.11ac: 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps

  • Dimensions

    139.7 x 86.7 x 25.75mm (5.50 x 3.41 x 1.01")

  • Weight

    200g (7.05 oz)

About Ubiquiti Networks UniFi AC In-Wall

Become a pioneer in wireless connectivity with the UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point. This sleek and modern device is expertly designed by Ubiquiti Networks to transform an Ethernet wall jack into a high-performance dual-band Wi-Fi access point, complete with three Gigabit Ethernet ports for ultra-fast wired connections. One of these ports offers Power over Ethernet (PoE) capabilities, allowing you to power and connect PoE-compatible devices directly to your network.

The UniFi AC In-Wall Access Point is the epitome of innovative networking, offering scalable Wi-Fi solutions perfect for any room. Its easy setup, monitoring, and control make it an ideal choice for both new installations and retrofit projects. With its dual radios supporting 802.11ac technology, you can expect rapid and reliable wireless performance.

Harness the power of PoE to maximize your network's efficiency with the UniFi PoE Switch series. This access point is designed to work seamlessly with Cat5e or higher cabling, turning existing wiring into a robust Wi-Fi solution. The versatile data and PoE output transform an Ethernet wall jack into a multifunctional access point, a gigabit switch, and a PoE power source, enabling you to wire a workstation and power devices like a VoIP phone with ease.

Manage your devices effortlessly with the UniFi Controller's intuitive graphical user interface. This powerful software engine is ideal for high-density client deployments that demand low latency and high uptime performance. With the UniFi Controller, you can configure and administer an enterprise Wi-Fi network without the need for specialized training. Features like RF mapping, real-time status, automatic device detection, and advanced security options are all integrated for a seamless networking experience.

Save both time and money with the UniFi system's bundled non-dedicated software controller, which can be deployed on an on-site PC, Mac, or Linux machine, or through a private or public cloud service. The UniFi 802.11AC Dual-Radio APs boast the latest in Wi-Fi 802.11AC MIMO technology, ensuring powerful hardware performance.

Expand your network to meet any demand with the UniFi Controller software's unlimited scalability. Start with a single access point and grow to thousands while maintaining a single unified management system. Extend your coverage further with the UniFi Controller software, which allows for management of multiple sites and multi-tenancy for managed service providers.

The UniFi Controller is packed with features to provision thousands of UniFi APs, map out networks, manage system traffic, and more. Advanced RF performance features like spectral analysis, airtime fairness, and band steering ensure optimal placement and configuration of your access points.

For guest management, the UniFi APs offer a customizable Guest Portal/Hotspot Support with authentication, Hotspot setup, and external portal server capabilities. Manage bandwidth rates, data usage limits, and usage duration for your guests with ease. The built-in Hotspot Manager facilitates voucher creation, guest management, and payment refunds, allowing full customization and branding of Hotspot portal pages.

The UniFi AC In-Wall Access Point is designed with easy mounting in mind, featuring a stylish design that seamlessly integrates into any environment. An innovative provisioning and status LED provides location tracking and alerts for administrators. With its compatibility with 802.3at PoE+ compliant switches, this access point is a versatile and powerful addition to any network, ensuring a sophisticated, high-tech wireless experience for users.

Ubiquiti Networks UniFi AC In-Wall Features

  • Manage Your Networks from a Single Control Plane
  • Intuitive and Robust Configuration, Control and Monitoring
  • Remote Firmware Upgrade
  • Users and Guests
  • Guest Portal/Hotspot Support

Key Features

  • Dual-band 802.11ac Wi-Fi for high-speed indoor wireless connectivity
  • Three Gigabit Ethernet ports for fast wired connections, one with PoE support
  • Easy installation and management with the intuitive UniFi Controller software
  • Sleek design for seamless integration into any wall or environment
  • Scalable solution with unlimited expandability for enterprise Wi-Fi networks
  • Advanced security features and guest portal/hotspot support for customized access

What's in the box:

  • Ubiquiti Networks UniFi AC In-Wall Indoor 802.11ac Wi-Fi Dual Radio Access Point
  • Cover Plate
  • Back Plate
  • 4x Wall-Mount Screws
  • 2x Security Torx Screws
  • 2x Phillips Screws
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
