This item is no longer available.
The UniFi Application Server, model UAS-XG, is an Ubuntu-based server capable of securely running all of your business applications. It integrates UniFi and UniFi Video software for centralized management of your UniFi devices. The UniFi Application Server features a fast 120 GB SSD for the OS and applications, as well as a pair of 2 TB mechanical drives for bulk storage of video recordings and other data. A power-optimized Intel Xeon-D processor with 32GB DDR4 memory provides reliable performance. Dual 10G Ethernet ports ensure high-bandwidth connectivity for your most demanding server applications.
Pre-Installed Software
The UniFi and UniFi Video Controller software applications are both pre-installed on the UniFi Server for immediate deployment.
Initial Setup via Bluetooth
Use the UniFi Mobile app to configure the UniFi Application Server. The username and password you configure in the UniFi Mobile app will be used for the UniFi and UniFi Video software.
UniFi
UniFi is a scalable networking system ideal for low-latency deployments requiring high uptime performance.
• Seamless integration of UniFi devices
• Centralized management and monitoring of multiple sites across remote locations
• Mobile app (iOS/Android) for quick and easy access
Dashboard
UniFi provides a visual representation of your network's status and delivers basic information about each segment.
Topology
The topology tree shows UniFi wired/wireless network devices and client devices.
Statistics
UniFi offers statistics and graphs to describe the clients and network traffic of your managed UniFi network.
UniFi Video
UniFi Video is a flexible, integrated IP video management and surveillance system using UniFi Video Cameras.
• Live feeds in a single or multi-camera format
• Motion detection and security alerts
• Detailed statistical reporting and advanced analytics
• Mobile app (iOS/Android) for control and live streaming
Event Recordings
UniFi Video software provides a variety of options and settings to customize what your cameras record.
Maps
Upload a map of your location(s) or use Google Maps to represent the areas where your cameras are located.
Analytic Capabilities
Customize your own motion detection zones. You can place several zones and set their alarm sensitivity levels.

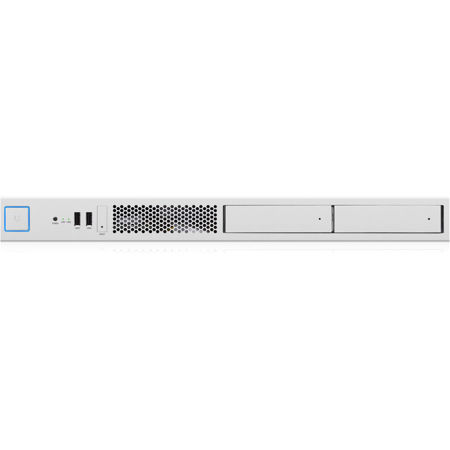

Hardware Overview
Featuring dual 10G Ethernet for high throughput and a powerful Intel Xeon-D processor, the UniFi Application Server efficiently scales to serve large UniFi and UniFi Video installations. The compact 1U form factor and pre-installed UniFi and UniFi Video software applications enable rapid deployment and plug-and-play integration.
Storage and Memory
• (2) 3.5" Hard Drive Bays
• (2) 2 TB Pre-Installed Hard Drives
• 120 GB Internal SSD
• UniFi and UniFi Video Software (Pre-Installed)
• 32 GB DDR4
Connectivity
• (2) 10G Ethernet Ports
• (2) USB 3.0 Ports (Rear)
• (2) USB 2.0 Ports (Front)
• Bluetooth for Initial Setup
• (1) 1G IPMI Ethernet Port
• (1) VGA Port
