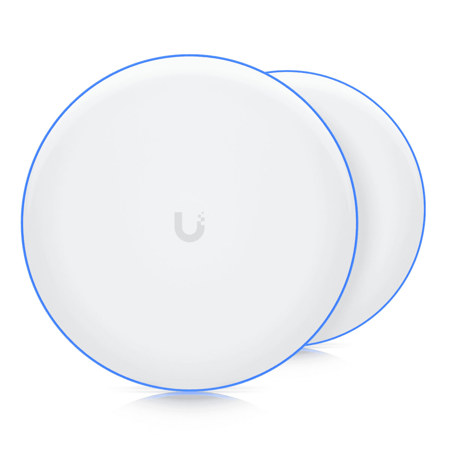

Ubiquiti Networks Point-to-Point Bridge XG with 10G SFP+, 2-Pack

SKU: UBUBBXGUS MFR: UBB-XG-US
Earn VIP Reward Points

Key Features

  • Experience high-speed, stable connections with this Point-to-Point Bridge XG, perfect for extending networks.
  • Achieve wide compatibility using the 10G SFP+ port for seamless integration with existing network hardware.
  • Enjoy long-range coverage up to 1,640 feet (500m), ideal for connecting buildings or remote locations.
  • Easy setup with included pole mount hardware, allowing for quick and secure installation in various environments.
  • Benefit from strong security with WPA2 AES encryption, ensuring your data is protected across the network bridge.
  • This Ubiquiti bridge offers a stable connection with Wi-Fi 5 technology, minimizing disruptions for critical tasks.
See More Product Details
Temporarily On Backorder?Expected Availability: 09/2025
Calculate Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$174.99

3 Year

$224.99

4 Year

$299.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ubiquiti Networks Bridge XG Specifications

General

General

Jump to...
  • Wi-Fi Standard

    Wi-Fi 5

  • Spatial Streams

    2

  • Coverage Area

    1,640' (500m)

  • Mounting Locations

    Wall, pole

  • Weatherproofing

    IPX6

  • Power Method

    PoE++, Passive PoE

Performance

Jump to...
  • MIMO

    5 GHz: 2 x 2 (DL MU-MIMO)

  • Max. Data Rate

    60 GHz: 6 Gbps, 5 GHz: 866.6 Mbps (BW80)

  • Antenna Gain

    60 GHz: 21 dBi, 5 GHz: 14 dBi, 2.4 GHz: 2 dBi (BLE)

  • Max. TX Power

    60 GHz: 16 dBm, 5 GHz: 23 dBm

  • Supported Data Rates

    802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11b: 1, 2, 5.5, 11 Mbps
    802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
    802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
    802.11ac (Wi-Fi 5): 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)

  • Wireless Security

    WPA2 AES (Always On)

Hardware

Jump to...
  • Max. Power Consumption

    31.2W

  • Includes PoE Adapter

    Yes

  • Supported Voltage Range

    48V DC +/- 10%

  • Networking Interface

    1x GbE RJ45 port
    1x 1/10G SFP+ port

  • Operating Modes

    PtP (Point-to-Point)

  • Wind Loading

    56 N at 200 km/h (12.6 lbf at 125 mph)

  • Pole Mount Diameter

    1-2.5" (25-63.5mm)

  • Management

    Ethernet, Bluetooth

  • Button

    1x Factory-reset

  • LEDs

    System: R/G/B

  • Channel Bandwidth

    Main radio (60 GHz): 2,160/4,320 MHz
    Backup radio (5 GHz): HT 20/40, VHT 20/40/80 MHz

  • Certifications

    CE, FCC, IC, Terragraph

  • NDAA Compliant

    Yes

  • Operating Frequency

    Main radio (60GHz): 57 - 66 GHz
    Backup radio (5GHz):
    US/CA: U-NII-1: 5150 - 5250 MHz
    U-NII-2A: 5250 - 5350 MHz
    U-NII-2C: 5470 - 5725 MHz
    U-NII-3: 5725 - 5850 MHz
    Worldwide: 5150 - 5725 MHz
    Bluetooth (Worldwide): 2,400 - 2,483.5 MHz

  • Ambient Operating Temperature

    -40 to 131 Degree F (-40 to 55 Degree C)

  • Ambient Operating Humidity

    5 to 95% noncondensing

Physical

Jump to...
  • Material

    Enclosure: Aluminum alloy, UV-resistant polycarbonate
    Mount: Stainless steel

  • Dimensions

    7.6 x 2.3" (191.8 x 59mm)

  • Weight

    Device: 3.8 lbs (1.7kg)
    With mount: 6.3 lbs (2.9kg)

  • UPC Code

    810010076083

Models
Ubiquiti Networks Point-to-Point Bridge XG with 10G SFP+, 2-Pack
$999.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Ubiquiti Networks UniFi Fiber PoE GEN2 Optical Data Transport for PoE Devices
$29.00

Ships from Manufacturer

Usually ships within 1-2 Days

Ubiquiti Networks UISP Long-Range PoE+ Gigabit Ethernet Adapter
$29.00

Temporarily On Backorder

Although this item is temporarily on Backorder, you can order it now and it will ship as soon as it arrives. Your card will only be charged once item is shipped.

Component TypeEthernet BridgeEthernet Bridge, Gigabit PoE ConverterEthernet Bridge
Bridge Interface-Ethernet RJ-45, Fiber Channel SFPEthernet RJ-45

About Ubiquiti Networks Bridge XG

A 60 GHz wireless point-to-point bridge with 10G SFP+ uplink for maximum performance.

The Building Bridge XG is a high-performance, 60 GHz wireless point-to-point bridge designed for long-range, high-speed connectivity. It offers a 10G SFP+ uplink for seamless data transfer, making it ideal for demanding applications in both urban and rural environments.

Note: Cannot be set up standalone and must be managed by a UniFi Console, Official UniFi Hosting, or a Self-Hosted UniFi Network Server.

Ubiquiti Networks Bridge XG Features

  • 60 GHz Wireless: Provides up to 6 Gbps data rate for high-speed links
  • 10G SFP+ Uplink: Ensures fast and reliable backhaul connections
  • Weatherproof Design: IPX6-rated enclosure for outdoor use in harsh conditions
  • Versatile Mounting: Can be mounted on poles or walls for flexible installation

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Experience high-speed, stable connections with this Point-to-Point Bridge XG, perfect for extending networks.
  • Achieve wide compatibility using the 10G SFP+ port for seamless integration with existing network hardware.
  • Enjoy long-range coverage up to 1,640 feet (500m), ideal for connecting buildings or remote locations.
  • Easy setup with included pole mount hardware, allowing for quick and secure installation in various environments.
  • Benefit from strong security with WPA2 AES encryption, ensuring your data is protected across the network bridge.
  • This Ubiquiti bridge offers a stable connection with Wi-Fi 5 technology, minimizing disruptions for critical tasks.

What's in the box:

  • 2x Point-to-Point Bridge XG
  • 2x PoE Adapter
  • 2x Power Cable
  • 2x Pole Mount Hardware
  • Ubiquiti Networks 1 Year Limited Warranty
