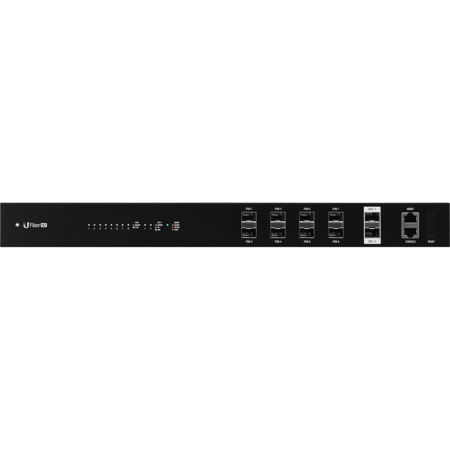

Ubiquiti Networks UF-OLT U Fiber OLT 8-Port GPON Optical Line Terminal
See all Ubiquiti Networks items

Ubiquiti Networks UF-OLT U Fiber OLT 8-Port GPON Optical Line Terminal with 2 SFP+ Ports

SKU: UBUFOLT

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2022-08-29T19:24:32

Rated 4 out of 5

Overall good choice

Good product, though I wish it could be a bit more refined as the UI gets glitchy from time to time. Nothing that breaks the product, but certainly leaves a bit to be desired.

Richard M.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Ubiquiti Networks UF-OLT Specifications

  • Ports

    (8) GPON SFP Ports
    (2) SFP+ Ports

  • Concurrent Clients

    1024 Registered ONUs/ONTs (128 per GPON Port)

  • Max. Power Consumption

    40W

  • Power Method

    Hot-Swappable

  • Power Module(s)

    100-240VAC, 100W AC/DC Power Module (Included)
    38-54VDC, 100W DC/DC Power Module (Optional)

  • Management Interfaces

    (1) Ethernet for Out-of-Band Management
    (1) RJ45 Serial Console Port

  • GPON Speeds

    2.488 Gbps Upstream (TX)
    1.244 Gbps Downstream (RX)

  • Operating Wavelengths

    1490 nm TX
    1310 nm RX

  • Normal Optical Power Range

    TX (Class B+): 1.5 dBm to 5 dBm
    RX: -28 dBm to -8 dBm

  • Range

    Physical Reach: 20 km
    Logical Reach: 60 km
    Max. Differential Fiber Distance: 20 km (B+) /40 km (C+)

  • Power Supply

    (1) 25V, 100W AC/DC PSU Module (Included)

  • Operating Mode

    OLT 2/3 Ethernet Switch and GPON Core

  • Advanced QoS

    Supports 8 Priority Queues per User Port and Traffic Classification

  • Processor Specs

    MIPS 1004kc, 880 MHz Dual Core

  • Memory Information

    512MB DDR3, 512MB NAND

  • Operating Temperature

    -10 to 45 deg. C (14 to 113 deg. F)

  • Operating Humidity

    10 to 90% Noncondensing

  • Certifications

    CE, FCC, IC

  • Dimensions

    442.4 x 285.6 x 43.7mm (17.42 x 11.24 x 1.72")

  • Weight

    4.40kg (9.70 lbs)
    With Mount Brackets: 4.49kg (9.90 lbs)

  • UPC Code

    810354026577

About Ubiquiti Networks UF-OLT

GPON Optical Line Terminal
Configuring a fiber network just became as easy as setting up a smartphone. Say goodbye to command lines, manuals and paid support licenses. Introducing the UFiber OLT - a fiber solution that anyone can deploy.

Centralized Management
Easily configure the OLT and manage multiple sites using the comprehensive UNMS (Ubiquiti Network Management System) software.

Client and Uplink Connectivity
The OLT features eight PON ports to connect up to 1024 Nano G devices and two SFP+ ports deliver up to 20 Gbps of uplink connectivity.

Power Versatility
Featuring low power consumption, the OLT offers two modular power bays. The first bay includes an AC/DC power module. The second bay can house an optional power module, either an AC/DC backup or a DC/DC power module.

Rackmount Design
The 1U-high metal chassis allows for convenient mounting in a standard-sized, 19"-wide rack.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Ubiquiti Networks UF-OLT U Fiber OLT 8-Port GPON Optical Line Terminal with 2 SFP+ Ports
  • UF-GP-B+ SC/UPC GPON SFP Transceiver
  • 2x Mounting Brackets
  • 8x Bracket Screws
  • 4x Mounting Screws
  • 4x Cage Nuts
  • Power Cord
  • 4x Rubber Feet
  • Quick Start Guide
  • Ubiquiti Networks 1 Year Limited Warranty
