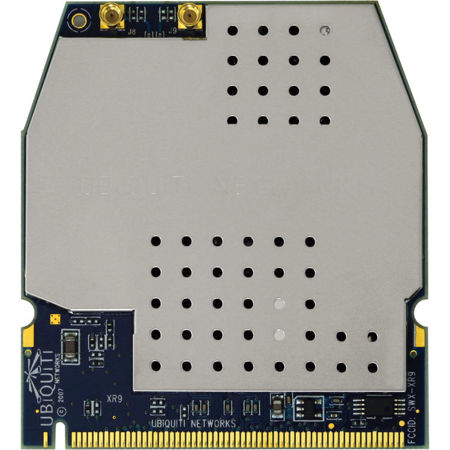

Ubiquiti Networks XtremeRange9 900MHz 600mW Wi-Fi Radio Module

SKU: UBXR9

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What makes the XtremeRange9 (XR9) unique in the 900MHz radio range?

The XR9 stands out due to its advanced noise immunity radio architecture, unprecedented link speeds and distances, and its ability to operate effectively in harsh environmental and noise conditions.

What is the role of the Atheros 6th Generation AR5414 chipset in the XR9?

The Atheros 6th Generation AR5414 chipset infuses the XR9 with advanced technology that enables high-performance wireless communication, contributing to its exceptional link speeds and distances.

Is the XtremeRange9 (XR9) compatible with the SR9?

No, the XR9 is not compatible with the SR9. It's important for users to be aware of this to ensure correct usage and compatibility.

Can the XtremeRange9 (XR9) operate in noisy conditions?

Yes, the XR9 is specifically designed to withstand severe environmental and noise interference, making it a reliable choice for deployment in challenging conditions where other 900MHz radios may fail.

Who can benefit from using the XtremeRange9 (XR9)?

The XR9 is suitable for a wide range of applications in the unlicensed 900MHz spectrum. It can be used for industrial, commercial, or personal purposes where high-quality, long-distance wireless connectivity is required.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Ubiquiti Networks XtremeRange9 Specifications

Card Information

Card Information

Jump to...
  • Chipset

    Atheros, 6th generation, AR5414

  • Radio Frequency

    Proprietary 900 MHz

  • Interface

    32-bit mini-PCI Type IIIA

  • Operating Voltage

    3.3 VDC

  • Antenna Connector

    Dual MMCX

  • Temperature Range

    -40 to 194 Degree F (-40 to 90 Degree C)

  • Security

    WPA, WPA2, AES-CCM & TKIP Encryption, 802.1x, 64/128/152bit WEP

  • Data Rates

    6 Mbps, 9 Mbps, 12 Mbps, 24 Mbps, 36 Mbps, 48 Mbps, 54 Mbps

  • TX Channel Width Support

    5 MHz / 10 MHz / 20 MHz / 40 MHz

  • RoHS Compliance

    Yes

Regulatory Approvals

Jump to...
  • Wireless Approvals

    FCC Part 15.247, IC RS210

Frequency

Jump to...
  • Operating Frequency

    907-922 MHz

  • TX Specifications

    DSSS
    DataRate TX Power Tolerance
    1 Mbps 28 dBm +/-1 dB
    2 Mbps 28 dBm +/-1 dB
    5.5 Mbps 28 dBm +/-1 dB
    11 Mbps 28 dBm +/-1 dB
    OFDM
    DataRate TX Power Tolerance
    6 Mbps 28 dBm +/-1 dB
    9 Mbps 28 dBm +/-1 dB
    12 Mbps 28 dBm +/-1 dB
    18 Mbps 28 dBm +/-1 dB
    24 Mbps 28 dBm +/-1 dB
    36 Mbps 26 dBm +/-1 dB
    48 Mbps 25 dBm +/-1 dB
    54 Mbps 24 dBm +/-1 dB

  • RX Specification

    DSSS
    DataRate Sensitivity Tolerance
    1 Mbps -95 dBm +/-1 dBM
    2 Mbps -93 dBm +/-1 dB
    5.5 Mbps -91 dBm +/-1 dB
    11 Mbps -90 dBm +/-1 dB
    OFDM
    DataRate Sensitivity Tolerance
    6 Mbps -92 dBm +/-1 dB
    9 Mbps -91 dBm +/-1 dB
    12 Mbps -91 dBm +/-1 dB
    18 Mbps -88 dBm +/-1 dB
    24 Mbps -84 dBm +/-1 dB
    36 Mbps -81 dBm +/-1 dB
    48 Mbps -75 dBm +/-1 dB
    54 Mbps -72 dBm +/-1 dB

900 MHz Frequency Channel Support

Jump to...
  • Frequency

    907 MHz: 5 MHz / 10 MHz
    912 MHz: 5 MHz / 10 MHz / 20 MHz
    917 MHz: 5 MHz / 10 MHz
    922 MHz: 5 MHz / 10 MHz / 20 MHz

Current Consumption Information

Jump to...
  • TX Current Consumption

    DSSS
    DataRate Current Tolerance
    1 Mbps 1.10 A +/-100 mA
    2 Mbps 1.10 A +/-100 mA
    5.5 Mbps 1.10 A +/-100 mA
    11 Mbps 1.10 A +/-100 mA
    OFDM
    DataRate Current Tolerance
    6 Mbps 1.10 A +/-100 mA
    9 Mbps 1.10 A +/-100 mA
    12 Mbps 1.10 A +/-10 0mA
    18 Mbps 1.10 A +/-100 mA
    24 Mbps 1.10 A +/-100 mA
    36 Mbps 1.00 A +/-100 mA
    48 Mbps 0.90 A +/-100 mA
    54 Mbps 0.80 A +/-100 mA

  • RX Current Consumption

    DSSS
    DataRate Sensitivity Tolerance
    1 Mbps 300 mA +/-100 mA
    2 Mbps 300 mA +/-10 0mA
    5.5 Mbps 300 mA +/-100 mA
    11 Mbps 300 mA +/-10 0mA
    OFDM
    DataRate Sensitivity Tolerance
    6 Mbps 300 mA +/-100 mA
    9 Mbps 300 mA +/-100 mA
    12 Mbps 300 mA +/-100 mA
    18 Mbps 300 mA +/-100 mA
    24 Mbps 300 mA +/-100 mA
    36 Mbps 300 mA +/-100 mA
    48 Mbps 300 mA +/-100 mA
    54 Mbps 300 mA +/-100 mA

Range Performance

Jump to...
  • Indoor (Antenna Dependent)

    Up to 1,312 ft (400m)

  • Outdoor (Antenna Dependent)

    Over 31 mi (50km)

Drivers

Jump to...
  • Operating System Support

    Linux MADWIFI, Windows XP, Windows 2000

  • Advanced Mobility / QuickHandoff

    Windows XP / 2000 Utility with enhanced mobility driver from Ubiquiti

  • Cisco Support

    CCX 4.0 Certified Driver / Utility also available from Ubiquiti

About Ubiquiti Networks XtremeRange9

Under the banner of cutting-edge wireless communication solutions, the XtremeRange9 (XR9) emerges as a pioneering carrier-class modular radio specifically engineered for the 900MHz unlicensed band. This robust module is the fruit of Ubiquiti RF engineers' extensive research, customer feedback, and rigorous field testing conducted over a two-year period, culminating in a radio architecture with superior noise immunity.

At its core, the XR9 boasts the Atheros 6th Generation AR5414 chipset, a testament to its advanced technological pedigree. This chipset is the driving force behind the XR9's exceptional performance, enabling unprecedented link speeds and distances that set a new benchmark for 900MHz radio capabilities.

Designed to thrive in the most challenging environments, the XR9 is adept at overcoming the severe environmental and noise interference that typically hampers other 900MHz communication solutions. Its resilience and reliability make it an ideal choice for deployment in areas where other radios fall short.

It's important to note that the XR9 is not compatible with the SR9, ensuring that users are aware of its unique specifications and compatibility requirements. As a standalone module, the XR9 stands out for its ability to deliver high-quality, long-distance wireless connectivity, making it a valuable asset for a wide range of applications in the unlicensed 900MHz spectrum.

With the introduction of the XtremeRange9 900MHz 600mW Wi-Fi Radio Module, Adorama continues to offer professional-grade, high-performance wireless solutions to meet the demanding needs of our customers. Whether for industrial, commercial, or personal use, the XR9 is poised to redefine the standards of 900MHz wireless communication.

Ubiquiti Networks XtremeRange9 Features

  • Advanced carrier-class modular radio for the 900MHz unlicensed band
  • Features superior noise immunity radio architecture
  • Empowered by the Atheros 6th Generation AR5414 chipset
  • Offers unprecedented link speeds and distances in the 900MHz range
  • Designed to withstand harsh environmental and noise conditions
  • Not compatible with SR9, ensuring unique specifications and compatibility requirements

Key Features

  • Advanced carrier-class modular radio for the 900MHz unlicensed band
  • Features superior noise immunity radio architecture
  • Empowered by the Atheros 6th Generation AR5414 chipset
  • Offers unprecedented link speeds and distances in the 900MHz range
  • Designed to withstand harsh environmental and noise conditions
  • Not compatible with SR9, ensuring unique specifications and compatibility requirements

What's in the box:

  • XtremeRange9 900 MHz 600mW Wi-Fi Radio Module
  • Ubiquiti Networks 1 Year Limited Warranty
