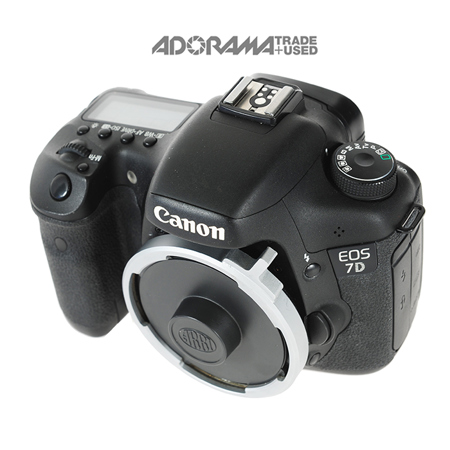

Canon EOS-7D Digital SLR Camera Body - Modified To PL Lens Mount

Digital, single-lens reflex, AF/AE camera

CF Card Type I and II, UDMA-compliant CF cards, via external media (USB v.2.0 hard drive, via optional Wireless File Transmitter WFT-E5)

PL Mount ONLY

PL Mount

High-sensitivity, high-resolution, large single-plate CMOS sensor

Effective pixels: Approx. 18.0 megapixels

Total pixels: Approx. 19.0 megapixels

3:2 (Horizontal: Vertical)

RGB primary color filters

Fixed position in front of the CMOS sensor

(1) Automatic sensor cleaning
(2) Manual cleaning of sensor
(3) Dust Delete Data appended to the captured image

Design rule for Camera File System 2.0 and Exif 2.21

Still: JPEG, RAW (14-bit, Canon original), sRAW, mRAW, RAW+JPEG
Video: MOV (Image data: H.264, Audio: Linear PCM)

Provided (RAW/sRAW/mRAW+JPEG also possible); One-touch RAW+JPEG

(1) Large: Approx. 17.90 Megapixels (5,184 x 3,456)
(2) Medium: Approx. 8.00 Megapixels (3,456 x 2,304)
(3) Small: Approx. 4.50 Megapixels (2,592 x 1,728)
(4) RAW: Approx. 17.90 Megapixels (5,184 x 3,456)
(5) M-RAW: Approx. 10.10 Megapixels (3,888 x 2,592)
(6) S-RAW: Approx. 4.50 Megapixels (2,592 x 1,728)
Exact file sizes depend on the subject, ISO speed, Picture Style, etc.

Consecutive numbering, auto reset, manual reset
Possible to create new folders and select folders in the CF card

sRGB, Adobe RGB

Standard, Portrait, Landscape, Neutral, Faithful, Monochrome, User Def. 1-3

Images record directly to the CF card. With the WFT-E5A attached, image recording to the CF card and to the USB external media connected to the WFT-E5A will be possible as follows
(1) Standard (2) Automatic switching of recording media(3) Separate recording (4) Recording of identical images (5) Backup to external recording media

Enabled with WFT-E5A attached

White Balance: Auto, Daylight, Shade, Cloudy, Tungsten Light, White Fluorescent Light, Flash, Custom, Color Temperature setting

Auto white balance with the image sensor

White balance correction: +/-9 stops in 5 step increments
White balance bracketing: +/-3 stops in full-stop increments
Blue/amber direction or magenta/green direction possible

Provided

Eye-level pentaprism

Vertical/Horizontal approx. 100%

Approx. 1.0x (-1m-1 with 50mm lens at infinity)

Approx. 22mm (from eyepiece lens center)

-3.0 to +1.0m-1 (diopter)

Fixed

Quick-return half mirror (transmission: reflection ratio of 40:60)

AF information (AF points, focus confirmation light), Exposure information (Shutter speed, aperture, ISO speed, AE lock, exposure level, spot metering circle, exposure warning), Flash information (Flash ready, flash exposure compensation, high-speed sync, FE lock, red-eye reduction light), Image information (Highlight tone priority, Monochrome shooting, maximum burst, white balance correction, CF card information), Composition information (Grid, electronic level), Battery Check

Enabled with depth-of-field preview button

TTL-CT-SIR AF-dedicated CMOS sensor

19-point all cross-type AF (f/2.8 at center: Dual Cross Sensor)

EV -0.5-18 (at 73°F/23°C, ISO 100)

Auto, One-Shot AF, Predictive AI Servo AF, AI Focus AF, Manual focusing (MF)

(1) Manual selection: Single point AF
(2) Manual selection: Spot AF
(3) Manual selection: AF point expansion
(4) Manual selection: Zone AF
(5) Automatic selection: 19 point AF

Indicated by transmissive LCD display in the viewfinder and on the LCD panel

When an external EOS-dedicated Speedlite is attached to the camera, the AF-assist beam from the Speedlite will be emitted when necessary

63-zone SPC TTL metering with selectable modes
Evaluative metering (linkable to any AF point)
Partial metering (approx. 9.4% of viewfinder at center)
Spot metering (approx. 2.3% of viewfinder at center)
Center-weighted average metering

EV 1-20 (at 73°F/23°C with EF50mm f/1.4 USM lens, ISO 100)

Program AE (Shiftable), Shutter-priority AE, Aperture-priority AE, Creative Auto, Full auto, Manual exposure, E-TTL II autoflash program AE

Automatically set, ISO 100-6400 (in 1/3-stop or 1-stop increments)
Basic Zone modes: ISO 100-3200 set automatically
Extension settable (with C.Fn.I 3-1): ISO 12800
High Tone Priority settable: ISO 200-6400

Manual: +/-5 stops in 1/3- or 1/2-stop increments (can be combined with AEB)

Auto: Applied in One-Shot AF mode with evaluative metering when focus is achieved
Manual: By AE lock button

Vertical-travel, mechanical, Electronically-controlled, focal-plane shutter

1/8000 to 1/60 sec., X-sync at 1/250 sec.
1/8000 to 30 sec., bulb (Total shutter speed range. Available range varies by shooting mode)

Soft-touch electromagnetic release

10-sec. or 2-sec. delay

E-TTL II autoflash

+/-2 stops in 1/3- or 1/2-stop increments

Provided

Single, High-speed continuous, Low-speed continuous and Self-timer (10-sec. or 2-sec. delay)

High-speed: Max. 8.0 shots/sec
Low-speed: Max. 3.0 shots/sec

JPEG (Large/Fine): approx. 94 (CF)/approx. 126 (UDMA CF)
RAW: approx. 15/approx. 15 (UDMA CF)
RAW+JPEG (Large/Fine): approx. 6 (CF/UDMA CF)
Based on Canon's testing standards with a 2GB CF card, high-speed continuous shooting, ISO 100 and Standard Picture Style

Quick mode (Phase-difference detection)
Live mode/Face Detection Live mode (Contrast detection)
Manual focusing (5x/10x magnification possible)

Evaluative metering with the image sensor (still photos)
Center-weighted average metering (video)

EV 1-20 (at 73°F/23°C with EF 50mm f/1.4 USM lens, ISO 100)

Provided (Two-type grid displays)

Provided

Provided (Mode 1 and 2)

TFT color, liquid-crystal monitor

3.0"

Approx. 920,000 (VGA)

Approx. 100% (viewing angle: approx. 170°)

Auto, 7 levels provided

25 (English, German, French, Dutch, Danish, Portuguese, Finnish, Italian, Norwegian, Swedish, Spanish, Greek, Russian, Polish, Czech, Hungarian, Romanian,Ukraine, Turkish, Arabic, Thai, Simplified/Traditional Chinese, Korean, Japanese)

Single image, Single image + Image-recording quality/shooting information, histogram, 4- or 9-image index, magnified view (approx. 1.5x-10x), rotated image(auto/manual), image jump (by 10/100 images, index screen, by shooting date, by folder), slide show (all images/selected by date/folder)

Provided (Overexposed highlights blink)

Single images can be erase-protected or not

Single image, check-marked images or all images in the CF card can be erased (except protected images)

PictBridge-compatible printers

JPEG images compliant to Design rule for Camera File System (DPOF printing possible) and RAW/sRAW images captured with the EOS 5D Mark II

Provided

Version 1.1 compatible

JPEG and RAW images
Only JPEG images can be transferred as wallpaper on the personal computer screen

Total 27

Register under Mode Dial's C1 and C3 positions

Provided

For personal computer communication and direct printing (USB 2.0 Hi-Speed)

(1) Video OUT terminal: NTSC/PAL selectable
(2) HDMI mini OUT terminal

For connection to WFT-E5A

One Battery Pack LP-E6
AC power can be supplied via AC Adapter Kit ACK-E6 with Battery Grip BG-E6 attached

Auto

Provided; Power turns off after 1, 2, 4, 8, 15 or 30 min.

One CR1616 lithium-ion battery

Approx. 0.1 sec.

32-104°F/0-40°C

85% or less

Approx. 5.8 x 4.4 x 2.9 in./148.2 x 110.7 x 73.5mm

Approx. 28.9 oz./820g (body only)

Canon 1 year limited warranty
