Ultramax UXDV-3HD-CAM 1080p Digital Video Camera

SKU: ULXDV3HDCAM

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Ultramax UXDV-3HD-CAM Specifications

Imaging

Imaging

Jump to...
  • Sensor

    5.0 MP 1/2.5" CMOS

  • Resolution

    Still images:
    5.0 MP: 2592 x 1944 (4:3), 2560 x 1920 (4:3)
    2.0 MP: 1600 x 1200 (4:3)
    8.0 MP (3200 x 2400 at 4:3), 12 MP (4000 x 3000 at 4:3) or 16 MP (4608 x 3456 at 4:3) available by interpolation

  • File Format

    Still image: JPEG
    Movie: MP4 (H.264)
    Audio: WAV

  • Image Stabilization

    Yes

  • Focal Length

    6.8-34mm
    35mm equivalent: 40.8-204 mm

  • Maximum Aperture

    f/3.5-3.7

  • Focusing Distance

    Normal: 31.5" (80cm) - infinity
    Macro: 0.4 - 31.5" (1.0 - 80cm)

  • Zoom

    Digital: 4x

Recording

Jump to...
  • Resolution

    1920 x 1080 at up to 30 fps
    1280 x 720 at up to 30 fps
    640 x 480 at up to 30 fps
    320 x 240 at up to 30 fps

  • System

    NTSC, PAL

  • Recording Media

    SD/SDHC card up to 32 GB, or MMC card

  • Audio Recording

    Yes, with video or voice memo via built-in microphone

Display

Jump to...
  • Display Type

    LCD

  • Screen Size

    3.0" (7.6cm)

Exposure Setting

Jump to...
  • Exposure Modes

    Auto, manual

  • Exposure Compensation

    -2 to +2

  • Shooting Modes

    Auto, night mode, macro

  • White Balance

    Auto, Sunny, Cloudy, Fluorescent, Tungsten

  • Effect

    Normal/natural color
    Black and white
    Classic sepia tone

  • Self-Timer Delay

    10 sec

  • Continuous Shooting

    Yes

  • Flash Modes

    Auto, force, off

Display Settings

Jump to...
  • Frequency

    Set flicker frequency to 50 Hz or 60 Hz

  • Date

    Date stamp on/off

Connectivity

Jump to...
  • Connectors

    HDMI out, Composite AV-out (NTSC/PAL), USB 2.0

  • System Requirements

    Operating system: Windows XP SP2, Vista or Windows 7
    CPU: AMD or Intel CPU with 3.2 GHz, or multi-core CPU
    System RAM: 1.0 GB (2.0 GB recommended)
    Graphic card: 256 MB memory
    CD-ROM speed: 4X or above
    Software: H.264 decoder (Quick Time Player 7.4.1 or above)
    Other: 1 free USB port, 1 optical drive

  • Operating Environment

    Temperature: 32 - 113 Degree F (0 - 45 Degree C)
    Humidity: up to 85% RH

General

Jump to...
  • Power

    NP60 rechargeable battery DC input: 5.0 V, 1.0 A

  • Battery Voltage

    3.7 V

  • Battery Capacity

    1000 mAh

  • Battery Info

    Required, included

  • Battery Material

    Lithium Ion

  • Battery Quantity

    1

  • Battery Type

    Non-Universal

  • Dimensions

    4.6 x 2.3 x 2.5" (117 x 59 x 63mm)

  • Weight

    10.6 oz (300g)

  • UPC Code

    838393005018

About Ultramax UXDV-3HD-CAM

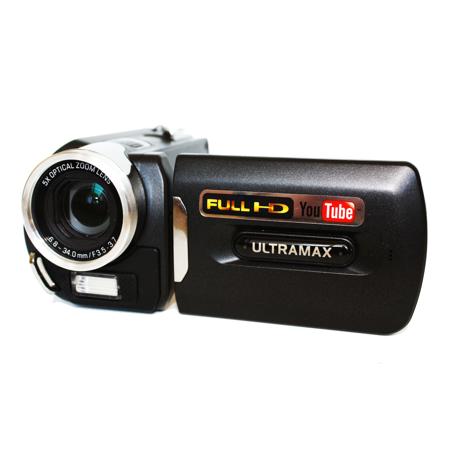

UXDV-3HD-CAM FHD 1080p Digital Video Camera
The UXDV-3HD-CAM 1080p Digital Video Camera features a 5MP, 1/2.5" CMOS image sensor that delivers 1920 x 1080p HD video at up to 30 fps. It can switch modes at the touch of a button to capture still images at resolutions of 5MP. It has a 5x optical zoom lens with a 35mm- equivalent focal length range of 40.8-204mm and auto and manual focus selection. It also has a 3.0" TFT LCD monitor with 270 Degree rotation. A built-in flash aids in still shooting in low-light conditions. The camera also has image stabilization to reduce the effects of camera shake for clear, blur-free shots. The camera fits into an Ultramax UXDV-3HD-HSE underwater housing.

Resolution
A 5MP, 1/2.5" CMOS image sensor records 1920 x 1080p HD video at up to 30 fps. Switch modes at the touch of a button to capture still images at resolutions of 5MP or 2MP, or a higher 8, 12, or 16MP by interpolation.

Lens
Features a 5x optical zoom lens with auto and manual focus and a 35mm-equivalent focal length range of 40.8-204mm.

Display

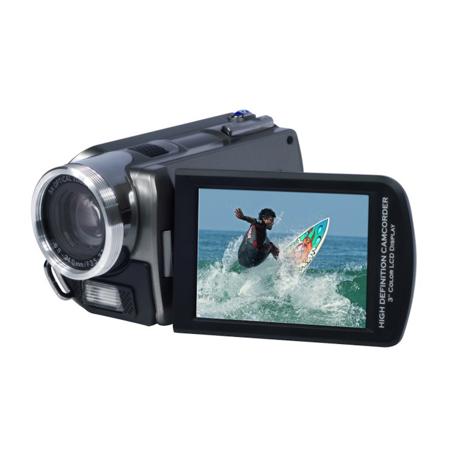

Equipped with a 3.0" TFT LCD monitor with 270 Degree rotation.

Night Mode
Allows you to take a photograph with a dark background. Since the shutter speed will slow down when taking photographs in a dark place, the use of tripod is recommended to eliminate blur from shaking hands. The stabilizer function is disabled when NightShot is enabled.

Macro
For capturing extreme close-up pictures. Focus as close as 0.4" from your subject.

Flash
A built-in flash with auto and force modes aids in still shooting in low-light conditions.

Memory
Records images to its 32MB internal memory or to SD/SDHC or MMC memory cards up to 32GB in capacity.

Playback
Slide show of stills or videos.

Auto Off
Set the length of the period of inactivity after which the camera will automatically shut down. You can select 1, 3 or 5min, or turn the feature off.

Power
Included 3.7V 1000mAh lithium-ion battery provides approximately 1 hr of continuous recording time or 2 hr of operation in standby mode, and is recharged by the supplied AC adapter.

Connectivity
HDMI output and included cables enable you to view your HD videos on an HDTV. There's also a Composite AV-out (NTSC/PAL) connector. Additionally, the camera features a USB 2.0 port and a USB cable is provided.

Ultramax UXDV-3HD-CAM Features

  • 1920 x 1080p HD Video at 30 fps
  • 5MP 1/2.5" CMOS Image Sensor
  • 40.8-204mm Zoom Lens (35mm Equivalent)
  • 3.0" LCD Monitor with 270 Degree Rotation
  • Auto and Manual Focus, Built-In Flash
  • 32MB Internal Memory, SD/SDHC/MMC Slot
  • Works in Select Underwater Housings

Key Features

  • 1920 x 1080p HD Video at 30 fps
  • 5MP 1/2.5" CMOS Image Sensor
  • 40.8-204mm Zoom Lens (35mm Equivalent)
  • 3.0" LCD Monitor with 270 Degree Rotation
  • Auto and Manual Focus, Built-In Flash
  • 32MB Internal Memory, SD/SDHC/MMC Slot

What's in the box:

  • UXDV-3HD-CAM 1080p Digital Video Camera
  • AC Adapter
  • USB Cable
  • HDMI Cable
  • NP-60 Type Battery
  • Wrist Strap for Camera
  • CD-ROM with Driver Software
  • ULTRAMAX 1 Year Limited Warranty
