Picture does not represent the actual item
See what's in the box
This item is no longer available.
Review Summary
1600dpi 1600 x 3200 dpi with Micro Step Drive technology
13,600 x 18,720 dpi with interpolation
48 bits per pixel internal/external
Xenon gas cold cathode fluorescent lamp
na
3.6 Dmax
8.5" x 11.7" (21.6cm x 29.7cm)
1600 dpi, draft mode: Color: 9.2m sec/line (approx.), Grayscale: 3.1m sec/line (approx.)
SCSI-ll & USB; Optional IEEE-1394 (Firewire)
yes
Windows Requirements: PC with Pentium equivalent or higher processor 64MB RAM recommended. SCSI- Requires ASPI-compliant compatible Fast SCSI, Ultra or Ultra 2 SCSI PCI Card. USB- USB port equipped PC systems with Windows 98 (factory installed), Windows 2000 or Windows Me. Optional IEEE-1394 FireWire- FireWire port equipped PC systems or PCI IEEE-1
Width: 13.1" (332mm), Depth: 22.1" (562mm), Height: 5.2" (133mm)
18.7 lb (8.5 Kg approx.)
PC with Pentium equivalent or higher processor 64MB RAM recommended. SCSI- Requires ASPI-compliant compatible Fast SCSI, Ultra or Ultra 2 SCSI PCI Card. USB- USB port equipped PC systems with Windows 98 (factory installed), Windows 2000 or Windows Me. Optional IEEE-1394 FireWire- FireWire port equipped PC systems or PCI IEEE-1394 card (OHCI complia

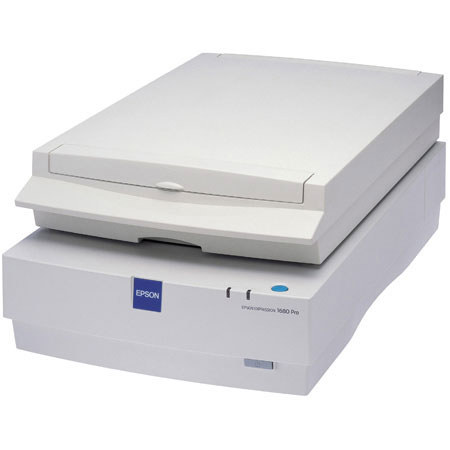

The EPSON ExPRESSION 1680 delivers image and text scans that meet exacting professional standards. With a scanning resolution of up to 1600 x 3200 dpi with Micro Step Drive technology, true 48-bit color, the most recent EPSON TWAIN software for total control and an output resolution of up to 12,800 dpi, this scanner is the very essence of scanning and imaging excellence.
To ensure the finest image quality, the Expression 1680 features Epson's most advanced scanning technologies. Micro Step Drive for high resolution, Dynamic Range Control to get the most out of transparencies, Simultaneous RGB scanning and Precision Optical Lenses providing superior sharpness and clarity.
In addition the Expression 1680 features unique Dual Position Focus which provides pinpoint focusing for both reflective and transparent media. The film holders supplied with the optional transparency unit eliminate unsightly Newton rings by holding the transparency away from the bed of the scanner. The Dual Focus system adjusts to focus at this new distance to give sharp accurate results.
The Expression 1680 offers exceptional optical density - up to 3.6 Dmax for transparency scanning and Precision Optical Lens which ensure sharp detail capture.
There are a high number of photoelectric elements in sensor, ensuring highest scanning resolution, and CCD sensors that are used in professional scanners where reliability and accuracy are paramount. Text Enhancement Technology 'removes' background images to enhance pure text scanning.
