Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor - SKU#1012877

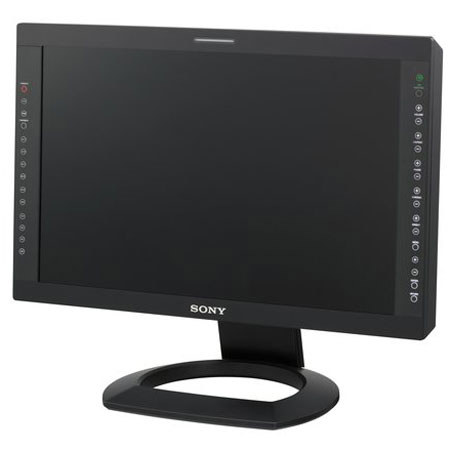

Picture does not represent the actual item
See what's in the box

See all Sony items
CloseoutUsed Condition: Heavy Use

Used Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor

Item Note: Could not fully test. Cracked on right side. Scratches on screen and body.

SKU: US1012877 MFR: LMD2451W
Be the first to review this item
$107.00
Earn VIP Reward Points
See all Used options (1) from $107

What`s in the box:

  • Power Cable ** Item Note: Could not fully test. Cracked on right side. Scratches on screen and body. **

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Sony LMD-2451W Specifications

  • LCD panel

    a-Si TFT Active Matrix

  • Pixel efficiency

    99.99%

  • Viewing angle

    (up/down/left/right, contrast > 10:1) : 89°/89°/89°/89° (typical)

  • Scan

    Normal 0%
    Over scan 5%

  • Efficient picture size

    518.4 ® 324.0, 613.2 mm (w/h, dia)
    (201/2 ® 127/8, 24 inches)

  • Resolution

    H 1,920 dots, V 1,200 lines

  • Aspect ratio

    16:10

  • Composite input (NTSC/PAL) connector

    BNC type (1)
    1 Vp-p +/- 3 dB sync negative

  • Y/C input connector

    4-pin mini-DIN (1)
    Y: 1 Vp-p +/- 3 dB sync negative
    C: 0.286 Vp-p +/- 3 dB (NTSC burst signal level)
    0.3 Vp-p +/- 3 dB (PAL burst signal level)

  • RGB/component input connectors

    BNC type (3)
    RGB input: 0.7 Vp-p +/- 3 dB (Sync Green, 0.3 Vp-p sync negative)
    Component input: 0.7 Vp-p +/- 3 dB (75% chrominance standard color bar signal)

  • Audio input connectors

    Phono jack (2)
    -5 dBu 47 kilohms or higher

  • External synchronized input connector

    BNC type (1)
    0.3 to 4.0 V p-p +/- bipolarity ternary or negative polarity binary

  • HD15 input connector

    D-sub 15-pin (1)
    R/G/B: 0.7 Vp-p, sync positive (Sync level) On Green, 0.3 Vp-p sync negative)
    Sync: TTL level (polarity free, H/V separate sync)
    Plug & Play function: corresponds to DDC2B

  • DVI input connector

    DVI-D (1)
    TMDS single link

  • Remote input connector

    Parallel remote
    Modular connector 8-pin (1)

  • Serial remote

    D-sub 9-pin (RS-232C) (1)
    RJ-45 modular connector
    (ETHERNET) (1)

  • Optional input slot

    2 slots
    Signal format: H: 15 kHz to 45 kHz
    V: 48 Hz to 60 Hz

  • DC In connector

    DC 24 V (output impedance 0.05 Ohm or less)

  • Composite output connector

    BNC type (1)
    Loop-through, with 75 ohms automatic terminal function

  • Y/C output connector

    4-pin mini-DIN (1)
    Loop-through, with 75 ohms automatic terminal function

  • RGB/component connectors

    BNC type (3)
    Loop-through, with 75 ohms automatic terminal function

  • External synchronized output connector

    BNC type (1)
    Loop-through, with 75 ohms automatic terminal function

  • Audio monitor output connectors

    Phono jack (2)

  • Built-in speaker output

    1.0 W + 1.0 W (stereo)

  • Operating conditions Temperature

    0 °C to 35 °C (32 °F to 95 °F)
    Recommended temperature: 20 °C to 30 °C (68 °F to 86 °F)
    Humidity: 30% to 85% (no condensation)
    Pressure: 700 hPa to 1060 hPa

  • Storage and transport conditions

    Temperature: -20 °C to + 60 °C (-4 °F to +140 °F)
    Humidity: 0% to 90%
    Pressure: 700 hPa to 1060 hPa

  • Power

    AC 100 V to 240 V, 50/60 Hz, 1.5 A to 0.7 A
    DC 24 V, 5.7 A

  • Power consumption

    Maximum: approx. 130 W (when two BKM-229X are installed)

  • Peak inrush current

    (1) Power ON, current probe method: 23 A (100 V), 56 A (240 V)
    (2) Hot switching inrush current, measured in accordance with European standard EN55103-1: 55 A (230 V)

  • Dimensions(WxHxD)

    Approx. 602.4 ® 497.9 ® 269.9 mm (including the projection parts)
    (23-3/4 ® 19-5/8 ® 10-3/4 inches)

  • Weight

    Approx. 11.0 kg (24 lb 4 oz) (when no input adaptor is installed)
    Approx. 11.4 kg (25 lb 2 oz) (when two BKM-229X are installed)

About Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor - SKU#1012877

The Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor is designed to dazzle. Not content to simply offer an outstanding 1920 x 1200 image with bright, accurate colors, high contrast and ultra-wide viewing angles, the LMD-2451W does so in your choice of format, environment and application. The wide range of analog and digital inputs let this monitor shine in both AV and IT applications, while the variety of compatible HD and SD video formats, already impressive, can be expanded even further with the addition of optional input boards.

The modularity of the LMD-2451W is one of its key attributes, allowing it to be used in everything from broadcast and post-production environments to corporate and retail display. The color accuracy afforded by its ChromaTRU technology makes color matching between monitors far easier when tiling displays, while the 10-bit digital processing provides the smooth color transitions that allow every subtlety of the image to come through. The monitor can also be powered by AC or DC, so it can be used both indoors and out.

Sony LMD-2451W 24" High Grade Multi-Format LCD Monitor - SKU#1012877 Features

  • High Resolution 1920x1200 WUXGA LCD Panel: Delivers outstandingly crisp, high-brightness and high-contrast images
  • Extremely Wide Viewing Angle: Class-leading horizontal and vertical viewing angle - ideal for group viewing
  • High Purity Color Filters: The LMD-2451W uses precisely manufactured RGB color filters, allowing the reproduction of colors with stunning depth and saturation to create highly natural images.
  • Selectable Color Temperature: Color temperatures of 9300k, 6500k, or a user preset value can be selected.
  • Accurate and Repeatable Color Reproduction: ChromaTRU technology ensures close CRT color accuracy and gamma matching throughout the product's life and delivers consistent color temperature across the entire grayscale range.
  • 10-bit Picture Processing: Delivers smooth color and grayscale transitions for high-quality video production.
  • Sophisticated I/P Conversion : The LMD-2451W monitor uses a motion-adaptive I/P-conversion process to achieve conversion results that are optimized to the picture content--whether it is static or dynamic.
  • Multi-Format Signal Support - Up to 3G SDI Input : The monitor can accept almost any SD or HD video format, both analog and digital.
  • 3G SDI Input: The LMD-2451W has a 3G SDI input capability with the optional BKM-250TG plug-in adapter.
  • Computer Input Frequencies: The LMD-2451W monitor is factory preset to accept 32 typical computer input signal frequencies.
  • Signal Interface Options: The monitor can accept up to two optional video boards for additional video analog or digital inputs (HD/SD/3G SDI). Note that the LMD-2451W is compatible with current decoder boards.
  • Video Waveform & Audio Level Meter: A combined video waveform and audio level meter is available on the on-screen display of the monitor.
  • Picture-In-Picture Mode: Side by side or Picture-in-Picture (PiP) mode allows users to check two images on the same screen. Combination of video and computer images side by side is also available.
  • Selectable Scan Size & Aspect Ratio: Overscan and normal scan, as well as full scan, are available, while aspect ratio can be switched between 16:9 and 4:3.
  • Multiple-Language On-Screen Display: English, French, Spanish, German, Italian, Japanese and Chinese
  • Advanced Video Markers: The LMD-2451W monitor can display various area markers, including a center marker, aspect markers and a safety zone marker. These flexible marker controls, together with the choice of many different aspect markers, make the
  • Three Color Tally: The LMD-2451W comes equipped with a tally lamp that can be lit via a parallel remote connector. The status of the signal displayed on the monitor can be identified by the tally color- red, green, or amber.
  • Selectable Scan Size & Aspect Ratio: The scan size can be selected between 5% overscan and 0% scan modes. The aspect ratio can be switched between 16:9 and 4:3 according to the input signal.
  • Smart APA (Auto Pixel Alignment) for Computer Input: The image size can be automatically adjusted to its optimal setting with the one-touch APA key.
  • Remote Control Options: Three connection methods are available: parallel 8-pin, serial RJ45 Ethernet and serial RS232C links. The parallel connection allows up to 38 functions to be remotely controlled.
  • Centralized Monitor-Wall Control: Centralized wall control of the monitor is possible via the serial RJ45 Ethernet connector using an optional BKM-16R control unit.
  • Stereo Audio Monitoring: The LMD-2451W is equipped with stereo speakers. Up to 16 embedded digital audio channels can be decoded and routed to the speakers. Analog audio inputs are also catered for.
  • Smart Function Key Lighting: The key lighting contributes to the elegant design and enhances user functionality. And to increase flexibility, the lighting can be switched off to eliminate any visual disturbance when multiple displays are employed for tiling purposes.
  • Protected Controls: A key-inhibit switch prevents inadvertent operation from the control panel.
  • VESA Mounting Standard: Table, wall or ceiling mounting
