Hikvision DS-7608NI-E2/8P 8-CH Embedded Plug & Play NVR with 2TB HDD - #1204022

Picture does not represent the actual item
See what's in the box

See all Hikvision items

Used Hikvision DS-7608NI-E2/8P 8-CH Embedded Plug & Play NVR with 2TB HDD, Up to 5MP Recording Resolution, H.264, 2-SATA

SKU: US1204022

This item is no longer available.

Recommended Items

Digital Watchdog DW-VP94T4P: Picture 1 regular
Digital Watchdog VMAX IP Plus 9 Channel, 4 PoE HD NVR with 4TB HDD
$970.00$694.49
Synology DVA1622: Picture 1 regular
Synology DVA1622 16-Channel 2-Bay Deep Learning NVR, Diskless
$599.99
Digital Watchdog DW-VP92T4P: Picture 1 regular
Digital Watchdog VMAX IP Plus 9 Channel, 4 PoE HD NVR with 2TB HDD
$767.49
Synology DVA3221: Picture 1 regular
Synology DVA3221 32-Channel Deep Learning NVR
$2,396.00$2,099.00
Digital Watchdog DW-VP123T8P: Picture 1 regular
Digital Watchdog VMAX IP Plus 12 Channel, 8 PoE HD NVR with 3TB HDD
$990.00$645.99
Ubiquiti Networks UniFi Protect: Picture 1 regular
Ubiquiti Networks UniFi Protect Enterprise Network Video Recorder
$329.00
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Hikvision DS-7608NI-E2/8P Specifications

  • Hard Drive

    2TB

  • IP video input

    8-ch

  • Two-way audio

    1-ch, RCA (2.0 Vp-p, 1kOhms)

  • Incoming bandwidth

    50Mbps

  • Outgoing bandwidth

    80Mbps

  • Remote Connection

    128

  • Recording resolution

    5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Frame rate

    Main stream: 50 fps (P) / 60 fps (N)
    Sub-stream: 50 fps (P) / 60 fps (N)

  • HDMI output

    1-ch, resolution: 1920 x 1080P /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz

  • VGA output

    1-ch, resolution: 1920 x 1080p /60Hz, 1600 x 1200 /60Hz, 1280 x 1024 /60Hz, 1280 x 720 /60Hz, 1024 x 768 /60Hz

  • Audio output

    1-ch, RCA (Linear, 1kOhms)

  • Live view / Playback resolution

    5MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

  • Decoding Capability

    8-ch at 720P, 6-ch at 1080P

  • SATA

    2 SATA interface for 2 HDDs

  • eSATA

    Up to 4TB for each disk

  • Capacity

    Up to 4TB capacity for each HDD

  • Network interface

    RJ-45 10 /100 /1000 Mbps self-adaptive Ethernet interface

  • USB interface

    USB 2.0 and USB 3.0

  • Alarm in

    4

  • Alarm out

    1

  • PoE Interface

    8 independent 100 Mbps PoE network interfaces

  • PoE Max. Power

    120W

  • Supported standard

    AF and AT

  • Power supply

    220V AC

  • Consumption

    =10W

  • Working temperature

    -10 to 55 deg. C / 14 to 131 deg. F

  • Working humidity

    10 - 90%

  • Chassis

    19-inch rack-mounted 1U chassis

  • Dimensions (W x D x H)

    17.5 x 11.4 x 1.8" / 44.45 x 28.96 x 4.57cm

  • Weight

    = 1kg / 2.20lbs

About Hikvision DS-7608NI-E2/8P 8-CH Embedded Plug & Play NVR with 2TB HDD - #1204022

• Third-party network cameras supported
• Up to 5 Megapixels resolution recording
• HDMI and VGA output at up to 1920x1080P resolution
• 4/8/16-ch network cameras can be connected with 25M/50M/100M incoming bandwidth
• Up to 2 SATA interfaces
• Plug & Play with up to 8 independent PoE network interfaces
• Support network detection, including network delay, packet loss, etc

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

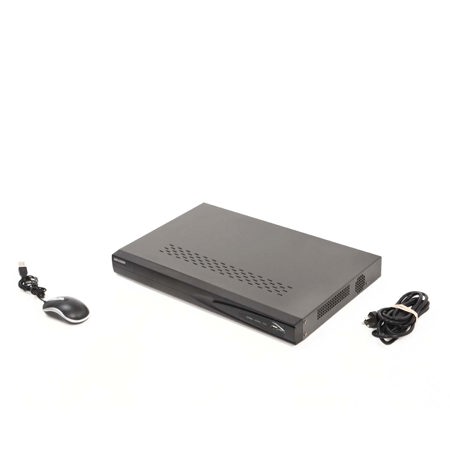

What's in the box:

  • USB Mouse
  • Power Cord
  • Item Note: Missing IR Remote; Missing HDD Mounting Screws and Brackets; Missing HDD Cable; Missing Rack Mount Ears; Item powers on but was not fully tested
