Used Connex mini Air Unit for Drone Aircraft, Transmitter Only

CONNEX mini provides a high-end, high-performance wireless HD connection that can operate in challenging unmanned air or ground platforms under harsh conditions with zero latency, such as UAV/ UGV. The small and lightweight CONNEX systems transmit commercial, industrial, inspection and monitoring video in real time to their Ground Unit(s), which can be located up to 500 meters away.

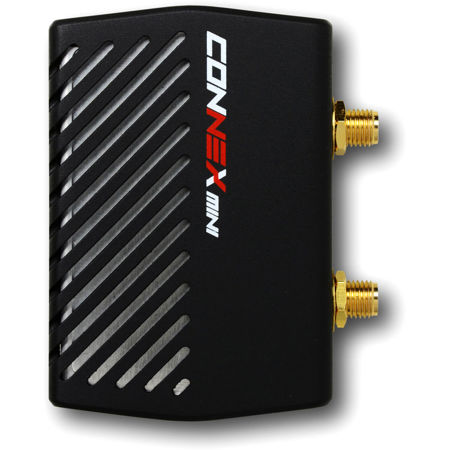

Air Unit
The Air Unit is connected to a drone in order to capture video from the drone's camera and to transmit it to up to four Ground Units simultaneously (multicast), thus creating a wireless video link.

Tx Cable Antennas and Mounting Accessories - Two flat lightweight 2dbi cable antennas pre-connected to a mounting accessory.

Micro to Micro HDMI Cable - Micro to Micro (Right Angled) - 50cm length.

SBUS - CAN bus Cable / SBUS - MAVLink Telemetry Cable - Provides SBUS to gimbal control connection and telemetry for CAN bus flight controllers. The CAN bus end of the cable is equipped with an additional female CAN bus connector.

Provides SBUS to gimbal control connection and telemetry connector for MAVLink flight controllers.

Air Unit Power Cable - 4-pin JST to XT-60 Male - 50cm length.

Micro USB Cable - Standard Micro USB cable for upgrading the Air Unit software. The same cable can be used for both Air and Ground Units.

USB to Micro USB Connector - Enables connection of the Air Unit to a tablet or mobile device.

Mounting accessories - Self-securing closure mount and three plastic ties.
