Used Ikan PD2-N Remote Air 2 Dual Channel Wireless Follow Focus Lens Control System for Focus and Iris (PD Movie )

SKU: US1257896 MFR: PD2-N
Earn VIP Reward Points

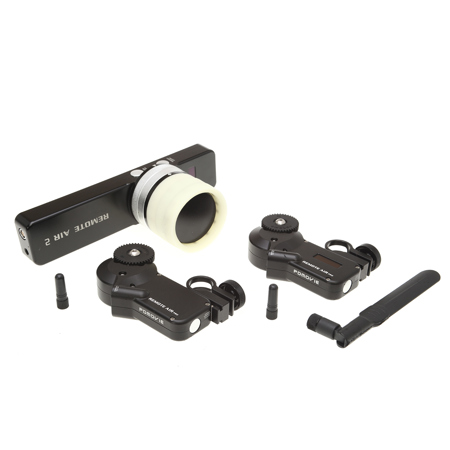

What`s in the box:

  • Ikan Remote Air 2 Dual Channel Hand Control Unit
  • Remote Air Pro Receiver Motor
  • Remote Air Pro Slave Motor
  • 4-Pin Lemo To Standard USB Cable
  • 6-Pin Lemo To D-Tap Power Cable
  • Antenna (Long)
  • PD Movie Lanyard
  • Travel Hard Case
  • USB Power Adapter
  • 2x 0.8 Pitch Gears (Pre-Assembled)
  • 2x 19mm Rod Clamps (Pre-Assembled)
  • 2x 19mm To 15mm Adapter Ring
  • 2x Antennas (Short)
  • 3x Glow-in-the-Dark Marking Disks
  • Remote Air 2 Product Manual

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

Protect your gear with Adorama Protect.* Learn more

1 Year

$40.99

2 Year

$54.99

3 Year

$85.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Ikan PD2-N Specifications

  • Controller: Battery Capacity

    3000mAh

  • Controller: Battery Voltage

    3.7V

  • Controller: Charging Voltage

    5V IN

  • PD3-R: Torque

    Max 0.5Nm

  • PD3-R: Working voltage

    12-18 V

  • PD3-R: Noise

    < 28 Db

  • PD3-R: Gear

    Module:0.8 Teeth: 40
    Module:0.6 Teeth: 60 (Optional)
    Module:0.5 Teeth: 72 (Optional)
    Module:0.4 Teeth: 90 (Optional)

  • OLED

    2.4GHZ wireless network Channel: Shows current Channel in use, short press on OFF/ON Channel button to change channel )
    Signal Level: Displays the signal strength of the Hand Control Unit and the receiver when interworking
    TX: the controller battery charge remaining percentage
    RX: receiver voltage

  • Motor

    Two types of Motor available
    Built in receiver
    German imported, high-precision brushless motor
    Silent, no noise
    Faster speed
    Unified standard aviation self locking plug

  • Wireless LAN

    "

  • Memory Function

    "

  • Stroke Detection

    "

  • Transmission Distance

    100M signal transmission distance

  • Battery

    "

  • Dimensions (L x W x H)

    Controller: 7.95 x 2.44 x 2.20" (201.93 x 61.98 x 55.88mm)
    PD3-R: 4.25 x 2.87 x 1.14" (107.95 x 72.90 x 28.96mm)

  • Weight

    Controller: 1.05lbs (0.48kg)
    PD3-R: 0.40lbs (0.18kg)

About Ikan PD2-N Remote Air 2 Dual Channel Wireless Follow Focus Lens Control System for Focus and Iris (PD Movie )

The Remote Air 2 wireless follow focus is not just a new generation of the Remote Air--it's a new experience. The Remote Air 2 perfectly combines the receiver into the lens motor, reducing the weight by 200g. Imported from Germany, the brushless motor is impeccable and can drive various professional camera lenses such as the Angenieux/Arri Ultra/Cooke.

• Two German engineered high precision lightweight, thin and quiet motors compatible with 19mm or 15mm rods
• High torque motors capable of operating all types of lenses from still photography to high end cine lenses
• 360 degree hand control unit knob with a 7200 resolution that is 13.4 times better than the original Remote Air
• Accurate OLED screen displays channel info, signal strength, battery life and voltage
• Communicates through a 20 channel 2.4 Ghz wireless protocol and has a signal transmission distance of 100m

7200 Resolution
The brand new Remote Air 2 wireless follow focus reaches a resolution of 7200 after optimization. It divides the hand wheel of the controller into 7200 levels and each small turn is displayed on the OLED screen. No matter how small the rotation is, the Remote Air 2 can react to it. Compared with the 500 resolution of the Remote Air, the accuracy of the Remote Air 2 is 13.4 times better.

High Precision Brushless Motor
The Remote Air 2 displays the most important contents such as the current channel in use. With a short press of the ON/OFF Channel button, you can easily change the channel. The screen also displays the signal strength of the Hand Control Unit and the receiver when interworking. It also displays the percent of battery remaining on the controller and the receiver's voltage.

Lighter, Thinner, More Robust
Ikan have redesigned the motor to weigh only 170g, which is 430g lighter when compared to the 1st generation motor and 600g lighter than the max torque motor. The high torque and robust motor is much stronger than previous designs. It can operate any lens on the market from affordable still lenses to high end cine lenses. It is PD Movie's thinnest and lightest motor ever. Utilizing high end brushless motors that are quiet and accurate and a low profile design that measures only 19mm thin, the Remote Air 2 is perfect for gimbal and Steadicam work.

Magnetic "Glow-in-the-Dark" Marking Ring
Each follow focus has its unique marking method and the Remote Air 2 does as well. Its marking ring achieves automatic decimal alignment simultaneously when it is attached to the controller rotary table. Quickly mark the stroke scale with the magnetic attachment and the Remote Air's automatic stroke detection function. When you use a new lens, you can save previously aligned marking rings to be used later.

100M Transmission Distance
Using 2.4G wireless technology and a full duplex mode for signal transmission ensures no delays. The Remote Air 2's anti-interference and error correction function as well as the farthest 100M transmission distance ensures a stable operation.

30 Hour Battery
The Remote Air 2's controller employs a USB charging interface which can charge anytime and anywhere. You can also apply a portable power source to it. The Remote Air 2 can be used for more than 30 hours under normal temperatures. Its internal battery can provide more than 1000 times circulation of full charge and discharge. It can also instantly start within a standby time of 30 days.

Warranty Information

This used item has a FREE 180-day warranty. See details.

What's in the box:

  • Ikan Remote Air 2 Dual Channel Hand Control Unit
  • Remote Air Pro Receiver Motor
  • Remote Air Pro Slave Motor
  • 4-Pin Lemo To Standard USB Cable
  • 6-Pin Lemo To D-Tap Power Cable
  • Antenna (Long)
  • PD Movie Lanyard
  • Travel Hard Case
  • USB Power Adapter
  • 2x 0.8 Pitch Gears (Pre-Assembled)
  • 2x 19mm Rod Clamps (Pre-Assembled)
  • 2x 19mm To 15mm Adapter Ring
  • 2x Antennas (Short)
  • 3x Glow-in-the-Dark Marking Disks
  • Remote Air 2 Product Manual
