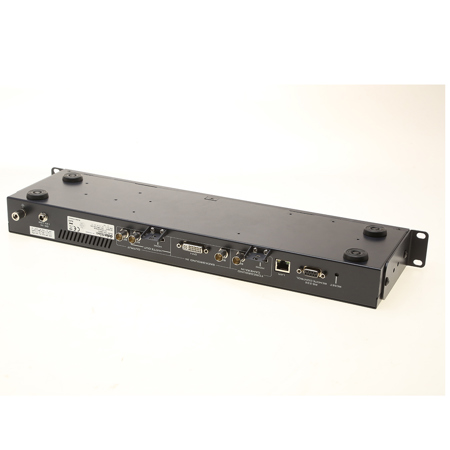

Used Datavideo DVK-300HD Live Real-Time HD Chroma Key & Luma Key Solution

SKU: US1353665 MFR: DVK-300HD
$146.00
Earn VIP Reward Points

Key Features

  • Support 3G-SDI / 1080P
  • Easy operation & control via LAN connection to laptop
  • Key noise reduction
  • Color spill processing
  • Edge control (brightness)
  • Post processing
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Calculate Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$18.99

2 Year

$31.99

3 Year

$43.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Datavideo DVK-300HD Specifications

  • Input Interface

    Video Camera: 1 x BNC connector, 75 Ohm up to 3 GB/s SDI input
    1 x HDMI v1.4 Connector

  • Video Background

    1 x BNC connector, 75 Ohm up to 3 GB/s SDI Input
    1 x DVI-I Connector for HDMI/DVI/VGA input

  • Output Interface

    Video PGM: 1 x BNC connector, 75 Ohm for SDI output
    Video PRV: 1 x BNC connector, 75 Ohm for SDI output
    1 x HDMI v1.4 Connector

  • Signal Format (1)

    Camera Input:
    SDI Formats:
    576i, 480i (SMPTE 259M-C)
    1080i (50/59.94/60)
    720p (50/59.94/60)
    1080p (25/30) (SMPTE 292M)
    1080p (50/59.94/60) (SMPTE 425M)
    HDMI Formats: 480i, 576i
    720p (50/59.94/60)
    1080i (50/59.94/60)
    1080p (25/30/50/59.94/60)

  • Signal Format (2)

    Background Input:
    SDI Formats:
    576i, 480i (SMPTE 259M-C)
    1080i (50/59.94/60)
    720p (50/59.95/60)
    1080 (25/30) (SMPTE 292M)
    1080 (50/59.94/60) (SMPTE 425M)
    HDMI/DVI Formats: 480i, 576i, 480p, 576p
    720p (50/59.94/60)
    1080i (50/59.94/60)
    1080p (25/30/50/59.94/p60)
    VGA Formats: 800x600/1024x768/1152x864/1280x720/1280x1024/1360x768/1400x1050/1440x900/1920x1080

  • Remote Control Interface

    LAN / RJ-45 port for PC control and Firmware Upgrade
    RS-232 for PC control (via forthcoming upgrade)

About Datavideo DVK-300HD Live Real-Time HD Chroma Key & Luma Key Solution

The Datavideo DVK-300HD is an advanced HD chromakey device which is easy to operate and delivers excellent results with minimal user input required. The device can be controlled locally using a directly attached laptop or remotely over an IP network. Most HD chroma key systems are either complex computer-based solutions or are embedded in sophisticated vision mixers. For users that simply need accurate and affordable live keying in a portable device, the DVK-300HD is a great new option.

Fitting into HDMI and SDI-based live environments, the keyer supports SD and HD resolutions up-to 1080P. High resolution backgrounds are ingested via SDI, HDMI or DVI with the resulting keyed composite picture displayed via HDMI.

Datavideo DVK-300HD Live Real-Time HD Chroma Key & Luma Key Solution Features

  • Support 3G-SDI / 1080P
  • Easy operation and control via LAN connection to laptop
  • Key noise reduction
  • Color spill processing
  • Edge control (brightness)
  • Post processing - correction of picture parameters (brightness, contrast, saturation) applied on foreground signal after keying processing
  • Foreground supports 3G-SDI,HD/ SD SDI, HDMI (1.4)
  • Background supports 3G-SDI . HD/SD SDI, DVI-I
  • Main output can be 2 SDI output simultaneously and HDMI output
  • Matte control to adjust black and white level for a precise chroma key setting To delete the reflective color from foreground
  • 1U and 19" rack mount design

Warranty Information

This used item has a FREE 180-day warranty. See details.

Key Features

  • Support 3G-SDI / 1080P
  • Easy operation & control via LAN connection to laptop
  • Key noise reduction
  • Color spill processing
  • Edge control (brightness)
  • Post processing
