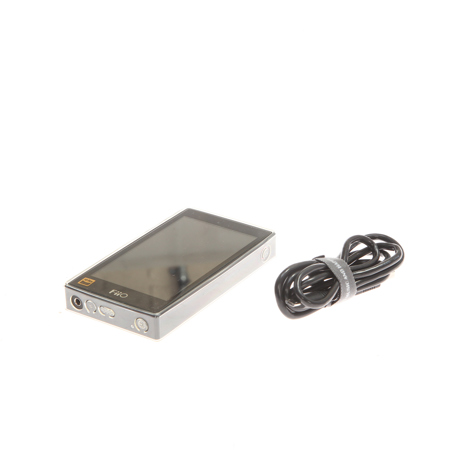

Used FiiO X5 3rd Gen High Resolution Music Player, 32GB Storage - Black

SKU: US1361538

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

2020-08-10T02:26:22

Rated 1 out of 5

Slow and pain

After the first update worked like typical android , sloooooow, had to reset to load any music , very troublesome

mike r.

2017-12-21T07:20:26

Rated 5 out of 5

Nice

Sounds wonderful all across the board. All is detailed as can be

Anthony M.

2017-09-24T13:36:20

Rated 4 out of 5

Fantastic DAP

I love my IPod Classic but due to Apple’s failure to give us an updated large storage music player and ability to play newer formats... I was forced to leave them behind. Enter the X5 MkIII. I stacked mine with an A5 and couldn’t be happier.

Kristofer V.

2017-09-07T08:08:49

Rated 5 out of 5

Love My X5 gen 3

Became aware of this product through a friend. Did some research and read some reviews. At first was a little reluctant to invest this kind of money in a product such as this but with education on these DAP's I went ahead and made the purchase and now I'm so glad I did. This device actually changed my whole way of thinking. For a device of this size to produce the sound that it does is incredible and it's completely adjustable in ways I'd never even thought of. As with any electronic device there is a learning curve but by going through the online owners manual all my questions were addressed and I was up and running in no time. For anyone that might be interested in this product, when making the purchase also go ahead and purchase a 2.0 quick charger, they're not expensive and will make recharging this device super quick. Also purchase 2 Sandisk micro SD memory cards, I went with two 128 gb cards which are the largest the device can use as of now. By making these two additional purchases there will be no delays, you'll be operational and syncing music right out of the box.

gary s.

2017-06-19T02:22:18

Rated 5 out of 5

what's not to like?

I have been using the Fiio X5 3rd gen for three weeks, and I'm more than satisfied. No problems that I can see. How I use: web streaming via wifi, using direct output jack into home amp and speakers. Or switch to pure music player mode, and listen to flac and apple lossless audio files ripped from CDs. On the go I use with IEMs, and the very convenient audio volume control. Build and quality: solid, no cheap parts here, and the android OS is well organized and with flexible options (1 software upgrade already). Bottom line: solid performer, solid value. Highly recommended.

MICHAEL W.

2017-05-30T10:15:43

Rated 5 out of 5

Nice Upgrade

Love the latest version of the X5. Having gone from the first version of the X5, I am still working my way through all of the changes and upgrades. So far, pretty good.

DONALD H.

2017-03-17T12:05:56

Rated 5 out of 5

Superb DAP

Highly recommended. The player has a good physical feel and layout. Well made. The Android operating system is a definite plus. Makes the player pretty intuitive. I love the dual SD card slots. Two 200GB cards later and I have a reasonable fraction of my music in a portable setup for a good price (the 256GB cards are supported, but are still too expensive). Sound quality is amazing. Noise floor is abolutely black with IEMs. Haven't tested with full sized headphones yet. Without question 5 stars.

Lawrence W.

FiiO X5 3rd Generation Specifications

  • Display

    3.97" IPS TFT touchscreen, 480x800 pixels

  • Number of Colors

    16.7 million colors

  • Viewable Angle

    178 deg.

  • Pixel Density

    233 ppi

  • CPU Operating Frequency

    1.4GHz

  • Keyboard

    Virtual QWERTY keyboard

  • Material

    CNC aluminum alloy

  • Buttons

    Left (Play/Pause, Pre and Next), Volume knob (Vol+ and Vol-), Right (Power)

  • DAC

    Dual top-of-the-line AKIV AK4490EN DACs

  • SoC

    Powerful quad-core Cortex A9 SoC Rockship RK3188

  • RAM

    1GB

  • Storage

    32GB internal storage

  • Battery

    Internal 3.8V 3400mAh Li-polymer battery

  • Storage Expansion

    Dual micro SD card slots supporting up to 512GB (2x 256GB)

  • Firmware Updates

    Supported via update zips placed in internal storage or SD card, or automatic over-the-air (OTA) push notification

  • Data Transfer

    USB 2.0 high-speed

  • Play Order

    Supports playing by folders, all songs, albums, artists, genres, favorite songs and custom playlists

  • Play Modes

    Sequential, shuffle, loop single, loop all (Up Next Queue and stick to queue list top - to be supported by future firmware)

  • Library Management

    Supports deleting songs on the X5
    Customizing list of favorite songs and playlists
    Batch addition and deletion from various lists
    Deletion of folders
    Bluetooth connection
    Playlists backup

  • Resume Playback

    App may resume playback from last song when X5 is turned back on

  • USB DAC

    Supports 192kHz/24bit via driver installation

  • Visualizations

    Supports display of internal / external / folder-based album art, 1D3 tag info and VU meters

  • Gesture Operations

    On now playing screen, swipe from left edge of screen for Now-playing playlist, slide up / down on the right for volume adjustment

  • EQ Adjustment

    Professional 10-band equalizer with 9 built-in genre EQs, App built-in VIPER effect

  • UI Settings

    Main menu can be customized (among playlists, local music, DLNA, recently played, most played and recently added)

  • Cloud Music

    DLNA

  • System Mode

    Instant switch between Android mode & Pure Music mode

  • Filter Modes

    Sharp roll-off filter, Slow roll-off filter, Short delay Sharp roll-off filter, Short delay Slow roll-off filter, Super Slow roll-off filter

  • Sound Balance

    L10-R10 (0.5dB/step)

  • Gain

    High and low gain settings available

  • Headphone Detection

    Pauses automatically when headphones removed

  • Balanced Output

    2.5mm headphone port

  • Wi-Fi

    2.4GHz IEEE802.11 b/g/n standards supported

  • Wi-Fi Support

    Supports online music apps via Wi-Fi

  • Bluetooth

    Supports Bluetooth 4.0, aptX, low latency, Eood sound quality and fault tolerance

  • Gapless Playback

    Supported (Realized via subsequent firmware update)

  • Search Function for Songs

    Supported

  • Supported Music Formats

    Supports DXD, DSD64, DSD128, WAV, FLAC, APE, ALAC, AI FF, WMA, M P3, ogg vorbis etc., at up to 384kHz/32bit

  • Buttons and Ports

    Buttons: Side buttons + side volume wheel+ touchscreen
    Headphone Out: 3.5mm standard headphone output jack
    Line Out: Standard 3.5mm port(shared LO/Coaxial out)
    Digital Coaxial Out: Standard 3.5mm port(shared LO/Coaxial out)
    Balanced Output: Supported (2.5mm balanced headphone jack)
    USB Connection: Micro USB2.0 (charging / data transfer / docking function / USB DAC)

  • USB Power Adapter

    DC 12/1.5A, 9V/2A, 5V/2A recommended

  • Charging Indication

    Via LCD display and pulse LED

  • Battery Indication

    Yes (accurate battery % readings)

  • Battery Life & Test Conditions

    3.5mm headphone output: >10 h
    Volume: 46
    Load: M3 open earbuds (27Ohms)
    Test File: MP3 44.1kHz/16bit
    Gain: High
    Screen: Off
    EQ: Off

    2.5mm TRRS balanced headphone output: >/-8 h
    Volume: 48
    Load: 32Ohms
    Test File: MP3 44.1kHz/16bit
    Gain: High
    Screen: Off
    EQ: Off

    Others:
    Firmware Upgrade: Supported both via zip file and OTA
    Third-party apps support: No limit (recommended to install the apps listed on FiiO Marketplace)
    Font Size: Changeable

  • Line Output

    THD+N: <0.0009% (1kHz/10KOhms)
    Frequency Response: 5Hz-55kHz (-3dB)
    Channel separation: >98dB (1kHz)
    SNR: >/-120dB (A-weighted)
    Dynamic Range: >117dB
    Line Level: >1.8Vrms

  • Headphone Output

    3.5mm headphone out jack:

    Output power 1: >/-480mW (16Ohms / THD+N <1%)
    Output impedance: <1Ohms (32Ohms loaded)
    Output power 2: >/-250 mW (32Ohms / THD+N <1%)
    Channel separation: >73dB (1kHz)
    Output power 3: >/-28mW (300Ohms / THD+N <1%)
    THD+N: <0.003% (1kHz)
    Frequency response: 5Hz-55kHz (-3dB)
    Peak output voltage: >8 Vp-p
    SNR: >/-115dB (A-weighted)
    Max. output current: 250mA (For reference)

  • Balanced Headphone Output

    2.5mm TRRS headphone out jack:

    Output power 1: >/-400mW (16Ohms / THD+N <1%)
    Output impedance: <3Ohms (32Ohms loaded)
    Output power 2: >/-240 mW (32Ohms / THD+N <1%)
    Channel separation: >98dB (1kHz)
    Output power 3: >/-26mW (300Ohms / THD+N <1%)
    THD+N: <0.003% (1kHz)
    Frequency response: 5Hz-55kHz (-3dB)
    Peak output voltage: >7.5 Vp-p
    SNR: >/-111dB (A-weighted)
    Max. output current: >250mA (For reference)

  • File Format Support

    Lossless: DSD: DSD64/128 (".iso", ".dsf", ".dff")
    DXD: 352.8K
    APE FAST/High/Normal: 384kHz/24bit (MAX)
    APE Extra High: 192kHz/24bit (MAX)
    APE Insane: 48kHz/24bit (MAX)
    Apple Lossless: 384kHz/24bit (MAX)
    AIFF: 384kHz/24bit (MAX)
    FLAC: 384kHz/24bit (MAX)
    WAV: 384kHz/32bit (MAX)M
    WMA LOSSLESS: 96kHz/24bit (MAX)

    Lossy Compression: MP3, AAC, WMA, OGG

  • User Interface

    Android 5.1.1 / FiiO Music

  • Operating System

    Deeply customized Android 5.1.1

  • Battery & Power

    Battery: Internal 3400mAh 3.8V high-voltage quick charge battery
    Play time: About 10 hours (experimental data, might vary from using habits)
    Charging: Charging time <100 mins (Using 12V/1.5A charger)

  • Balance Control

    10dB

  • Recommended Headphone Impedance

    16 - 150Ohms

  • Volume Control

    120 steps +/- button control (via analog-domain controller)

  • Equalizer

    10-band EQ (+/-6dB), 9 presets+custom preset, freestyle EQ curve drawing (to be added in the future), ViPER Effect

  • Gain Control

    Low/High

  • Dimensions (HxWxD)

    114.2 x 66.2 x 14.8mm (4.50 x 2.61 x 0.58")

  • Weight

    186g (6.56 oz)

About FiiO X5 3rd Gen High Resolution Music Player, 32GB Storage - Black SKU#1361538

FEATURED REVIEWS

Nice

By Anthony M.

Sounds wonderful all across the board. All is detailed as can be

Love My X5 gen 3

By gary s.

Became aware of this product through a friend. Did some research and read some reviews. At first was a little reluctant to invest this kind of money in a product such as this but with education on these DAP's I went ahead and made the purchase and now I'm so glad I did. This device actually changed my whole way of thinking. For a device of this size to produce the sound that it does is incredible and it's completely adjustable in ways I'd never even thought of. As with any electronic device ...

View full Review

Three Unique, Dazzling Colors To Perfectly Suit You
Go with black for the classic, yet classy look. The titanium brings a thoroughly chic, yet sophisticated atmosphere. Red is your best bet if you want to be bold and breathtaking. With these three distinctive colors, you can be sure to pick the X5 3rd gen that best matches you.

Dual DACs for a Silky Smooth Sound
The X5 3rd gen is equipped with two top-of-the-line AKM AK4490EN DACs, one for each channel. The AK4490EN is a part of a new generation of high-quality 32-bit DACs that supports all PCM and DSD formats. By using a dual-channel implementation of AKM's unique VELVET SOUND low-distortion architecture that includes digital filtering with 32-bit processing, the DAC chips in the X5 3rd gen have the ability to finely and exactly reproduce your music.

Dual Crystal Oscillators for Faithfully Reproduced Music
The X5 3rd gen utilizes two separate crystal oscillators - one for the DSD/44.1/88.2/176.4/352.8kHz sampling rates and the other for 48/96/192/384kHz. This ensures that under all sampling rates, there is significantly reduced jitter, improved clock accuracy, more stable operation and virtually no sampling rate conversion artifacts.

Four-Way LPF for First-Rate Amplication
The X5 3rd gen utilizes two dual-channel OPA1642 chips for its low-pass filtering stage and a custom-made audiophile-grade OPA426 chip for amplification, providing greater power output (up to 300mW under a 32Ohms load) and greater ability to deal with capacitive loads. The outstanding sound quality of the final audio architecture employed in the X5 3rd gen is the result of closed beta users working tirelessly together with the team at FiiO in a quest to make this new X5 sound the best that it can.

Dual Headphone Outputs for Double Fun
The X5 3rd gen has two headphone outputs - one single-ended and the other balanced. This allows the new X5 to cater to fans of either headphone output type.

Deeply Customized Android 5.1 OS for Efficient Music Playback
To circumvent the problem of third-party Android apps automatically converting the sample rate of music, FiiO's software team wrote an entire new audio software architecture for its deeply customized and optimized version of the Android 5.1 OS. This results in improved sound quality and better overall performance of the device and also gives 90 more minutes of battery life compared to running under Android 4.4.

Two Operating Modes for More Enjoyment
The X5 3rd gen, following in the footsteps of FiiO's flagship DAP, also offers two modes of operation - Pure Music mode and Android mode. In Pure Music Mode, only the main music player is available - no other apps run for smoother operation and a purer sound. In Android mode, users are free to install and run any third-party Android apps according to their needs. By offering these two modes of operation, the X5 3rd gen can satisfy both the music purists and those who need more versatility.

Wi-Fi and Bluetooth (aptX) for a Connected Era
The X5 3rd gen brings a number of new features for a convenient wireless experience - 2.4GHz Wi-Fi allows users to listen to their favorite online streaming services; aptX ensures a low latency, high-quality wireless Bluetooth experience; and DLNA is supported for even more forms of wireless connectivity. With the X5 3rd gen, you can play your music anytime, anywhere.

All-New, Thoroughly Reworked User Interface
The X5 3rd gen has an all-new UI that has been thoroughly and carefully changed from past efforts down to the last pixel - for example, many of the icons have been redesigned, such as the ones for EQ setting and system settings. The new UI has a black theme with splashes of thoughtfully - placed bold colors for a clean, modern presentation.

Concealed micro SD Card Design
In order to make a more seamless-looking and durable chassis, the X5 3rd gen design team needed to rethink the design of the micro SD card slot. In this new design made of fine stainless steel powder based on new metallurgical methods, the gap between the micro SD card slot and the rest of the body is only 0.2mm - making for a more handsome body.

Dual micro SD Card Slots
The X5 3rd gen contains both 32GB of built-in storage and two external micro SD card slots. Since each micro SD card slot supports up to 256GB cards, the X5 3rd gen is able to carry up to a whopping 544GB of music - enough to store up to 130,000 songs.

Side-facing Volume Knob
New to the X5 3rd gen is a physical volume knob, which is slightly recessed within a guard so as to prevent accidental volume changes but is still easy to manipulate. The volume knob contains several of FiiO's characteristic design traits, such as the 45deg. grooves on the volume knob as well as the rigid lines and smooth circular elements which complement each other for a striking and unique look.

2 Modes of Charging to Quickly Get Back Up and Running
The X5 3rd gen contains a 3.8V 3400mAh battery that provides more than 10 hours of playing time. But when you do run out of battery, the new X5 has new rapid charging technology with temperature detection (with an on-screen indicator) that not only supports the typical BC 1.2 USB charging specification but also supports 9V/12V high-voltage rapid charging. When charged at the maximum current rate of 1.2C, the X5's battery can be filled in a mere 1.5 hours.

Meticulously Detailed, Inside and Out
The upgrade in the feel and grip of the X5 3rd gen's body over the previous X5 is immediately apparent. In order to achieve a smoother finish, the X5 3rd gen's body is made of specially-selected No. 180 zirconium sand. The front panel features a subtle dot matrix pattern, while the rear is tastefully adorned with a snazzy fine star pattern. The anodized titanium and gold color paints perfectly harmonize with each other to give the X5 3rd gen an understated yet luxurious appearance. The molded chassis, plastic and stainless steel on every corner of the new X5 come together seamlessly for a very sleek Look. This makes even the headphone jack more durable and look more integrated with the rest of the body.

A Highly Versatile Player
The X5 3rd gen can be used in multitude of different ways according to the needs of the user. With a special cable, the X5 3rd gen can be in a car in its In-Vehicle mode. It can be connected to a computer as a USB DAC. It can also act as a transport, outputting digital audio signals to an external USB DAC. And finally, it can also be docked to the FiiO K5 docking station, through which it can be charged and connected in even more different ways.

Practical Yet Beautiful Accessories
Available for the X5 3rd gen's screen is a 7H tempered glass screen protector, which is hard enough to be resistant against most scratches yet still boasts a 90%+ light transmittance rate, ensuring your screen will be still easy to look at for years. Stylish PU leather cases are also available for the new X5, which not only protects your valuable investment but also, due to the grippy surface, makes it easier to use.

What's in the box:

  • FiiO X5 3rd Generation High Resolution Lossless Music Player
  • USB Cable
  • Coaxial Digital Adapter Cable
  • Tempered Glass Screen Protector
  • Clean Case
  • Leatherette Case
  • Original Box
