Mackie XR824 Specifications

Acoustic

Acoustic

Jump to...
  • Frequency Response

    36 Hz to 22 kHz (-3 dB)

  • Sound Pressure Level

    +4 dBu into Balanced Input @ 3.3' / 1 m: 109 dB SPL @ 3.3' / 1 m

  • Maximum SPL

    Per Pair: 115 dB SPL @ 3.3' / 1 m

Transducers

Jump to...
  • Low Frequency Driver

    8" (203 mm) Kevlar woofer

  • High Frequency Driver

    1" (25 mm) black anodized aluminum tweeter

Amplifier

Jump to...
  • Power

    Low Frequency: 100 W
    High Frequency: 60 W

  • Type

    Class D power amplifier

Crossover

Jump to...
  • Type

    Linkwitz-Riley, 24 dB/octave

  • Crossover Frequency

    2.2 kHz

Equalization

Jump to...
  • Low Frequency EQ

    -3 dB @ 36 Hz
    -3 dB @ 80 Hz

  • High Frequency EQ

    +/-2 dB @ 10 kHz, shelving

  • Acoustic Space Filter

    Whole: Flat
    Half: -2 dB @ 100 Hz
    Quarter: -4 dB @ 100 Hz

  • Input Impedance

    20 kOhms balanced bridging
    10 kOhms unbalanced

  • Input Type

    Balanced differential XLR and 1/4" TRS (6.3 mm)

  • Input Protection

    RFI and level protected

  • Maximum Input Level

    +20 dBu

Power Requirements

Jump to...
  • AC Connector

    3-pin IEC 250 VAC, 16 a male
    100 to 120 VAC, 50 to 60 Hz, 150W
    220 to 240 VAC, 50 to 60 Hz, 150 W

  • Voltage Selector Switch

    Yes

  • Fuse

    115 VAC: T 2.5 AL, 250 V
    230 VAC: T 1.25 AL, 250V

  • On/Off Control

    Auto On/Off Standby Mode:

Battery

Jump to...
  • Battery Info

    No battery used

  • Battery Material

    -

  • Battery Quantity

    0

  • Battery Type

    -

Physical

Jump to...
  • Enclosure

    All-wood MDF construction and internal cabinet bracing

  • Damping

    Open cell adiabatic "foam fill" acoustic batting

  • Finish

    Black, wood grain vinyl and black paint

  • Dimensions (H x W x D)

    16.8 x 10.8 x 13.8" (427 x 274 x 351mm)

  • Weight

    36.4 lbs (15.7kg)

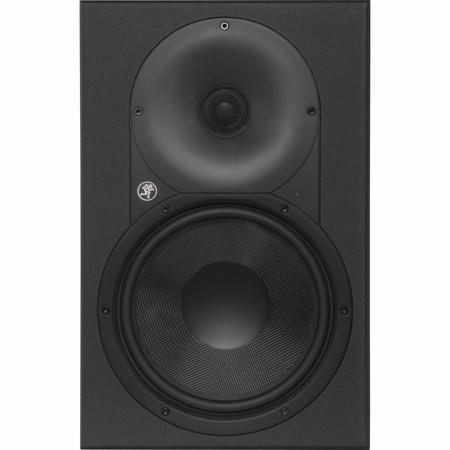

About Mackie XR624 8" 160W Two-Way Active Professional Studio Monitor - Single 1409800

Reveal Your True Mix
You are passionate about your music, your projects and your mix. XR Series monitors reproduce your work with incredible accuracy and clarity across the entire frequency range bringing you closer to your mix than ever before.

A Breath of Fresh Air
When diving into your mix, hearing every detail is essential. XR monitors deliver a level of detail and sensitivity that reveals things you didn't know were in your mix before. Utilizing key technologies developed using Mackie's vast acoustic design experience, XR monitors translate your mix in a way that feels natural and accurate without the fatigue that other monitors can bring after long hours at the mixing desk. Experience unmatched clarity, accuracy and performance with XR Series Professional Studio Monitors. The result of countless hours of tuning, listening and development, XR monitors deliver an accurate, flat response and professional level performance for modern studios.

Adapt

Room Optimization
XR monitors are easily adaptable to suit your mixing environment to ensure a flat frequency response with three adjustable filters.

• Acoustic Space Changes overall response to match most configurations.
• HF filter - Helps match the monitor your particular room.
• LF Filter - Rolls off the low-end to simulate smaller desktop speakers.

Precise

Kevlar Woofer
XR series monitors are equipped with an extremely rigid, ultra-low distortion Kevlar woofer which maintains its shape even under a high amount of stress. This provides fast recovery from transients and incredibly accurate, detailed low-end compared to typical woofer types.

Efficient

Set and Forget
The eco-friendly Auto On/Off puts the monitor in stand-by after a period of time with no signal and back on as soon as signal is present And the front-panel LED, set to the perfect non-intrusive brightness level, provides visual feedback keeping you informed on the monitors status.

Stunning

A True Beauty
Not only do monitors need to sound good, but they need to look good as well. XR monitors feature their classic black wood grain finish that is a beautiful addition to any studio. The front battle is the perfect balance of sleek looks and unobtrusive design. And on the rear panel, you get robust metal toggle switches for all controls including room optimization and power modes.

Isolation

High-Density Foam Pad Included
Two hard surfaces that are touching (bottom of the monitor and top of your desk) tend to not sound very good when one is vibrating, so XR monitors come with a high-quality foam isolation pad to reduce unwanted vibration. This helps to optimize the low-end even further for the best possible accuracy and focused sound. The pad also allows for easy tilting of the monitor so it is always pointing at the correct angle.

Clarity

Logarithmic Waveguide
The XR logarithmic waveguide matches the high-frequency dispersion pattern to that of the woofer for a seamless midrange transition It also recesses the tweeter so that its active area is on the same axis with the woofer, providing acoustic alignment of high and low frequencies for the perfect balance between articulate highs and midrange clarity.

Performance

ELP Bass Reflex System
Engineered for serious professional level performance, the ELP Bass Reflex System utilizes an extended length, internally curved design and elliptical, zero-turbulence exit providing extended low frequency response and greatly increased output capability. This design enables you to hear all the deep low end in every mix, even at high volumes without any "air noise " that plagues typical ports.

Available in 6.5 " and 8 " models, XR monitors deliver the professional level performance and accuracy you need for your best mix ever.

8 " Professional Studio Monitor

Professional level performance
• Logarithmic waveguide provides acoustic alignment for balanced sound across the entire frequency spectrum
• ELP Bass Reflex System engineered for zero turbulence, providing greatly increased output capability and extended low-frequency response
• 1 " black anodized aluminum tweeter reveals the finest details and upper harmonics of your mix
• 8 " Kevlar woofer offers fast transient recovery for incredibly accurate low frequency response
Specially designed internal bracing adds stiffness for reduced distortion and enhanced clarity
• 160W bi-amplified Class-D amplification (100LF / 60HF)

Optimize XR monitors for your sound and mixing environment
• Adjustable acoustic space filters maintain flat response in typical placement
• HF filter applies boost or cut to compensate for particularly dull or bright sounding rooms
• LF filter rolls of the low end to simulate smaller speakers for reference

Attention to the detail
• Eco-friendly auto turn-off / turn-on
• Black wood grain finish for a classic studio feel
• Included custom acoustic isolation pad reduces unwanted resonance and improves bass response


Software Bundle

- Pro Tools | First -
An industry standard for decades, Pro Tools | First is easy enough for beginners yet sophisticated enough for experienced musicians. Get many of the same tools used by your favorite artists and recording studios. And now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Available for MacOS and Windows operating systems.

Make Music Everywhere
Meet the new Pro Tools | First
Want to make great sounding music? Start off right with this free recording software. Get many of the same tools used by your favorite artists and recording studios. And now you can collaborate online with anyone, anywhere, and create at the speed of your imagination. Making music has never been so easy-or fun.


- Musician Collection (23 Plug-ins) -
In addition to the powerful plug-ins within Pro Tools | First, you get the exclusive Mackie Musician Collection featuring 23 fantastic plug-ins.

The Musician Collection is full of great-sounding plug-ins that are perfect for guitar, bass, vocals, drums, and more. The extensive list of plug-ins includes the renowned 304E EQ and 304C Compressor, Eleven Lite, and Studio Reverb plus fun pedal plug-ins like Black Op Distortion, Gray Compressor, and Green JRC Overdrive.

• 304E EQ / 304C Compressor bundle
• BBD Delay, Black Op Distortion, Black Shiny Wah, Black Spring Reverb, C1 Chorus, DC Distortion, Eleven Lite, Flanger, Graphic EQ, Gray Compressor, Green JRC Overdrive, In-Tune, Orange Phaser, Roto Speaker, Sci-Fi, Studio Reverb, Tape Echo, Tri Knob Fuzz, Vari-Fi, Vibe, Phaser, and White Boost

Note: Requires a new Pro Tools | First subscription at no cost

Mackie XR624 8" 160W Two-Way Active Professional Studio Monitor - Single 1409800 Features

  • Room Optimization
  • Kevlar Woofer
  • Set and Forget
  • A True Beauty
  • High-Density Foam Pad Included
  • Logarithmic Waveguide
  • ELP Bass Reflex System

What's in the box:

  • XR824 8" 160W Two-Way Active Professional Studio Monitor
  • AC Power Cord
  • Custom Acoustic Isolation Pad
  • 4x Self-adhesive Feet
  • Original Box
