Review Summary
165 MHz / 4.95 Gbps
480i / 480p / 720p / 1080i / 1080p60
1080p-130ft CAT5e or CAT6 or 1080i/720p - 200ft CAT5e or CAT6
Stereo, Digital, Dolby TrueHD and DTS-HD Master Audio
5 Volts
HDMI
HDMI, Audio Female (for DVI Applications) and LAN
EDID selection and Learning functions
5V Universal 110/220
180 x 108 x 27mm / 7.09 x 4.25 x 1.06"
1lbs / 0.45kg

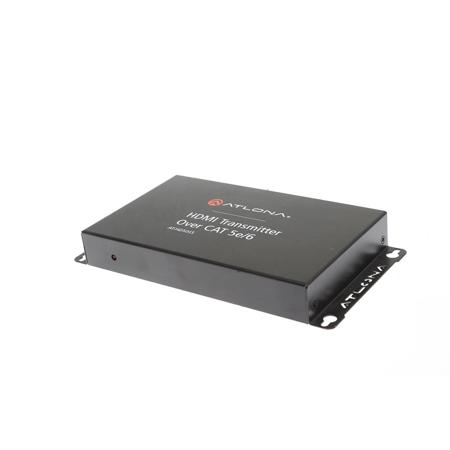

The Atlona Technologies HDMI Extender over Single Cat5/6 with Local Video Output is a transmitter unit that transmits high definition video and high-quality audio to different locations at a distance up to 200' (160 m). With full 3D support, the extender offers resolutions up to 480i / 480p / 720p / 1080i / 1080p60. The HDCP and EDID compliant extender offers a data transfer rate up to 4.95 Gbps while ensuring loss-free transmission. Adjustable 8-level equalization control reduces the cable skew and the embedded silicon image chip-set further increases compatibility and reliability. When used in combination with the AT-HDRP Repeater, the extender improves signal on long runs.
