Used Audio Ltd. En2 PTX Plug-On Transmitter, +48V Phantom Power, Locking XLR-3 Connector (606-686MHz Frequency Range)
SKU: US1506485
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Audio Ltd. En2 PTX Plug-On Transmitter - 606-686MHz Frequency Range SKU#1506485

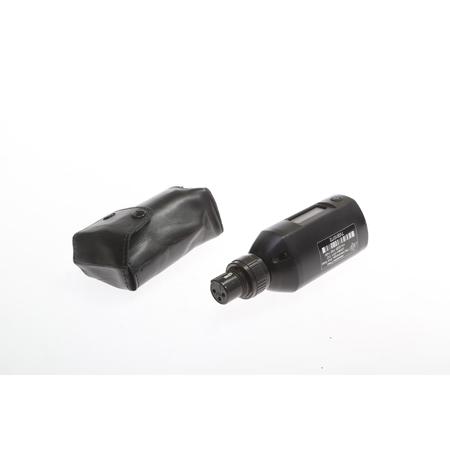

The Audio Ltd. PTX is a compact, fully featured plug-on transmitter with 614-694MHz Frequency Range F34 designed to connect neatly to any dynamic or condenser microphone equipped with a standard balanced XLR and turn it into a wireless handheld microphone. Connection is via an industry standard Neutrik three pin XLR and an integral locking ring ensures that the connection is always secure. The PTX is designed in a unique trilobular shape which means, on camera, it will look compatible with modern slim line mics. Its low weight and profile also make it ideal for use with a boom pole or as part of a discreet microphone set up which needs to be hidden on set. There is no trailing antenna either-the PTX's antenna is built into its robust aluminum body.
It can be supplied with up to 80 MHz switching bandwidth and programmable with up to 10 frequency tables, giving it enormous flexibility anywhere in the world. There are two output power settings, low (25mW) and high (50mW), ensuring a continuously good RF link with any En2 receiver while in use. The PTX is fully compatible with both CX2 slot-in camera receivers and with all other receivers in the En2 range.
Easy Operation
Like all products in the En2 range, the PTX is simple to set up and easy to operate. The menu system is accessed using a recessed scrolling navigation switch on the bottom of the unit. The high resolution OLED display is clearly readable from a distance and in a variety of light conditions but, to avoid becoming a distraction, can be switched off when in use (as can the power LED). The display can be custom configured to read both from the left and from the right and the on/off button can also be configured to function as an instant, one-touch mute button.
Powering
When powered by 2 AA alkaline batteries, the PTX, gives a minimum of five hours continuous use on 48 volt phantom powering and up to nine hours use with a dynamic mic. Batteries are inserted in an easy-to-access compartment via a secure, recessed and latched cover.
